IRMA MATRIX
R2 CAN Installation manual
released
Rev. 1.6
2018-09
3.1 Vehicle data sheet
iris-GmbH offers a vehicle data sheet for vehicles which are to be equipped with the IRMA
passenger counting system. This data sheet serves to collect the main installation
conditions. Based on the information from the vehicle data sheet we can properly plan
your project in advance, thus helping you select the optimal components for your vehicle.
For a download of the vehicle data sheet please refer to our website
https://www.irisgmbh.de/wp-content/uploads/FL-Datenblatt-zur-Auswahl-der-
IRMA_0.2.pdf. A proved and tested help for us are photos of the coves (door trims) above
each of the doors with the doors closed and open (see alsoFig. 3). They show the space
available in each case and help select the correct sensors..
For each vehicle type, each year of construction and each equipment variant you need to
fill in individual vehicle data sheets which you return to the contact person of iris-GmbH
along with the pertinent photos.
3.2 Clarification of specific installation conditions
Please clarify the following circumstances well in advance of the installation as such:
• Does the vehicle lighting system or door mechanics interfere with the installation of the
sensors? An important help is a photo showing the installation situation in the upper
part of the door trim (see also Fig. 3.)

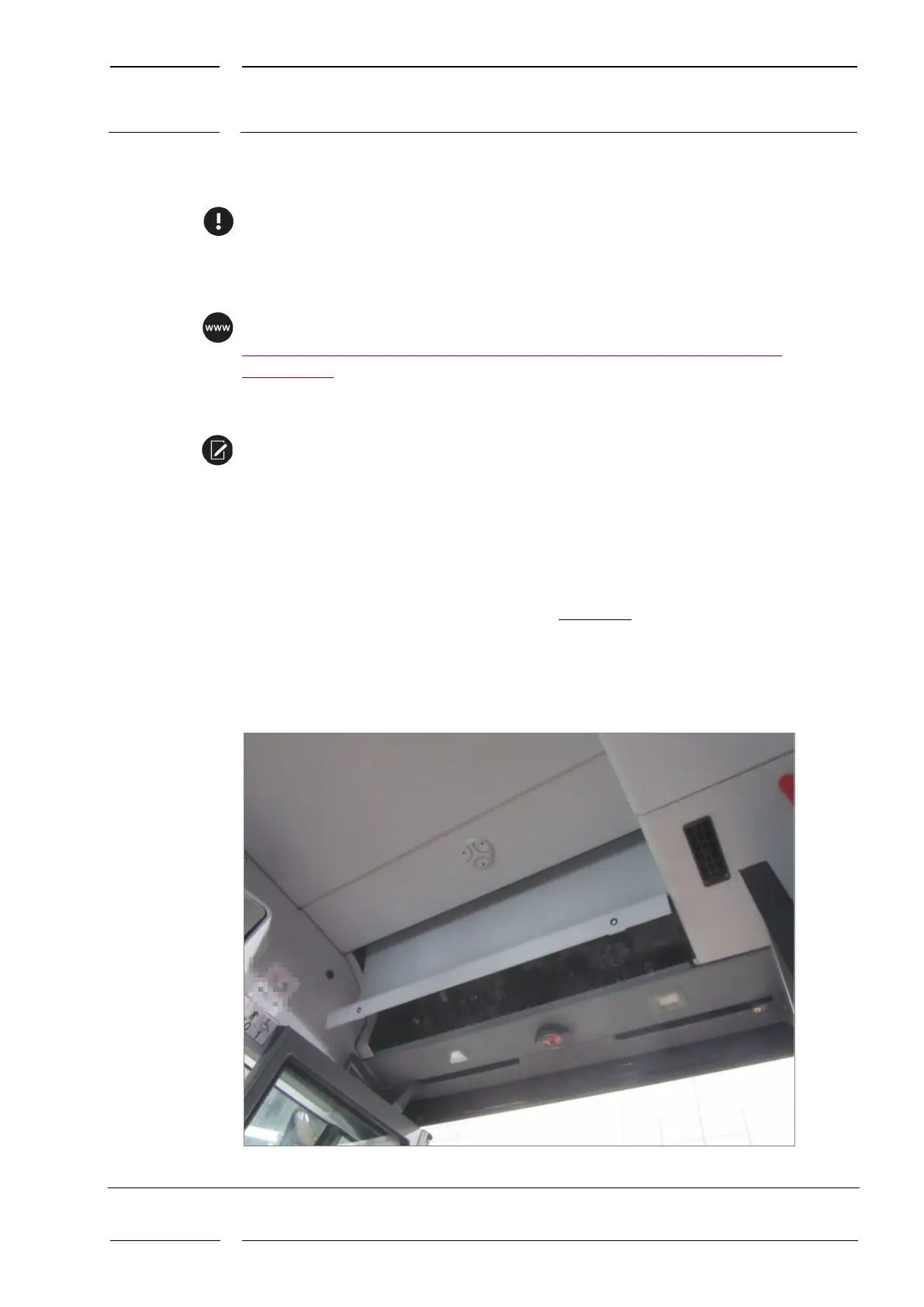

Fig. 3: Example of installation conditions in the upper part of the door trim
