IRIS IRMA MATRIX 2

26
/74
IRMA MATRIX
R2 CAN Installation manual
released
Rev. 1.6
2018-09

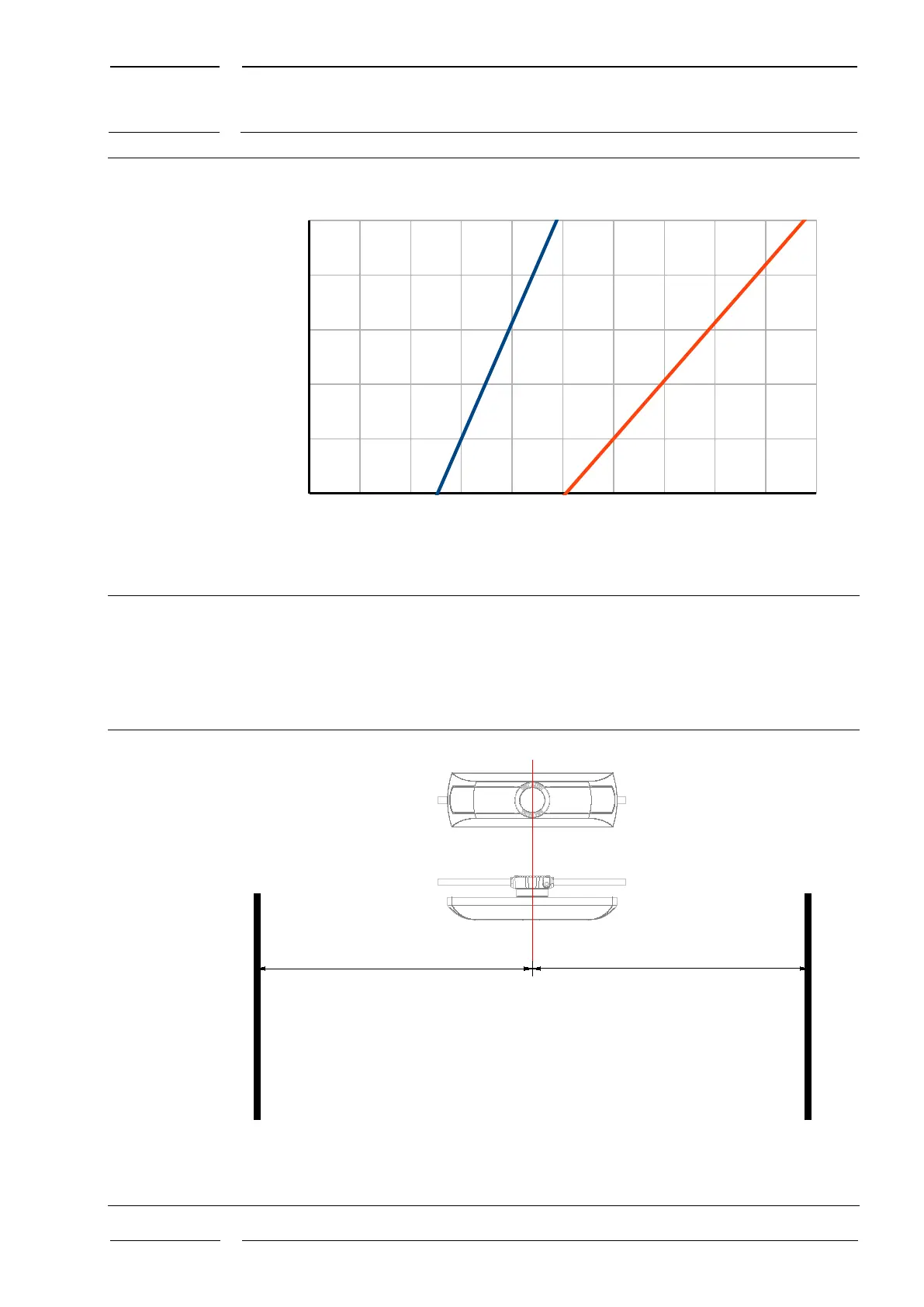

Fig. 15: Selection of the number of IRMA MATRIX sensors
4.3.1 1 IRMA MATRIX sensor per door
The sensor is fitted in central position above the vehicle door.
Fig. 16: Central installation position – 1 IRMA MATRIX sensor
1,9
2
2,1
2,2
2,3
2,4
0,6 0,8 1 1,2 1,4 1,6 1,8 2 2,2 2,4 2,6
Height of installation [m]
door width [m]
Detection range height vs. width
1 sensor
2 sensors
X
Y
X=Y
