SCMA54,SCMB60,SSM54
102

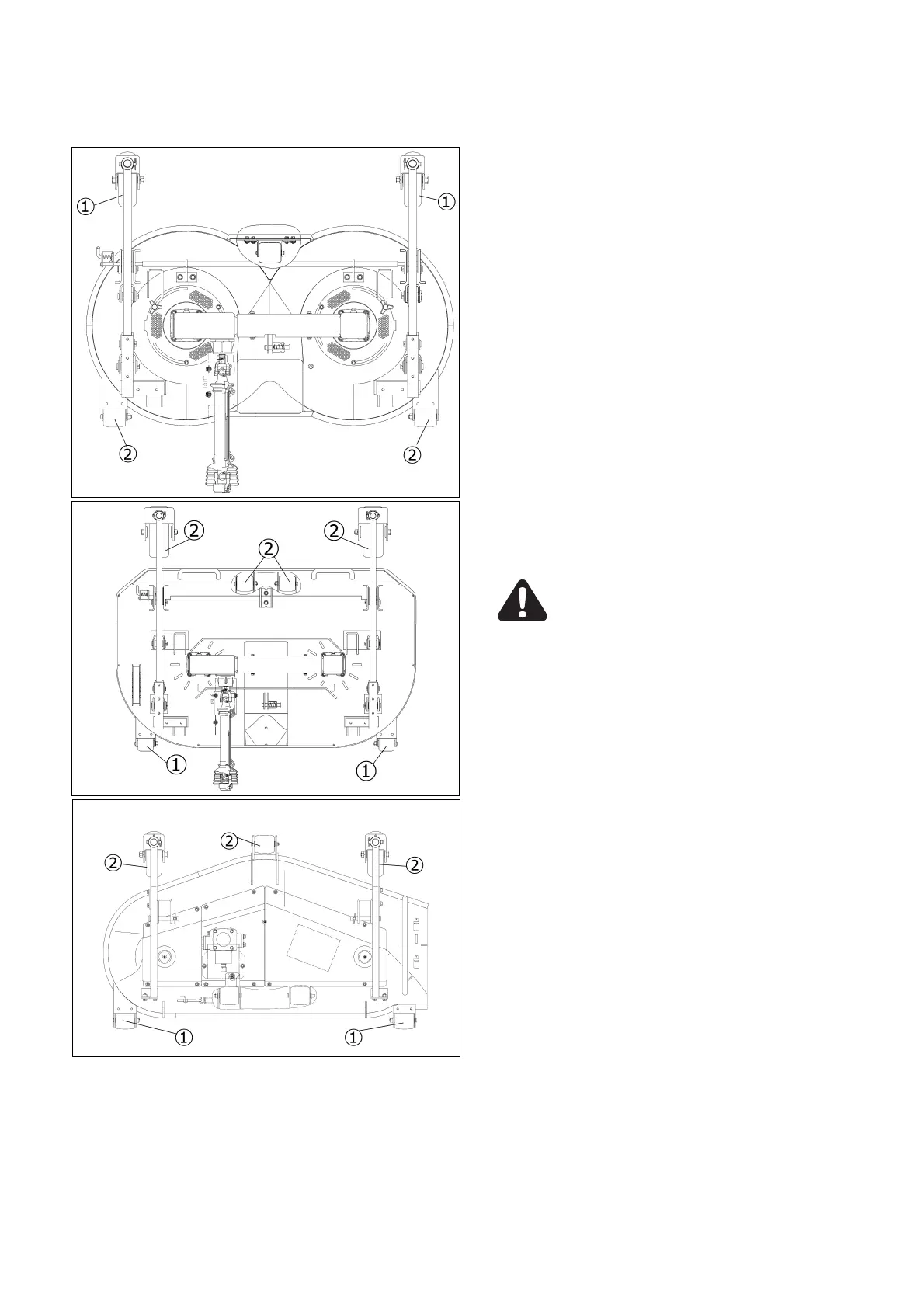

3. INSPECTION OF GAUGE WHEELS / ROLLERS
(1) Gauge wheel (2) Roller
As the gauge wheels and rollers are installed on the
front and rear ends of the mower, they are vulnerable to
being hit and deformed by obstacles. When a wheel or
roller does not turn smoothly or is deformed, replace it
with a new one immediately.
4. INSPECTION OF THE GAUGE WHEELS
Check and adjust the inflation of gauge wheels.
Specified air pressure: 2.1kg/cm2 (SCMA54)
1.5kg/cm2 (SCMB60, SSM54)
5. INSPECTION OF THE ROLLERS
Make sure that the roller turns smoothly.
IMPORTANT:
・When the wheels and rollers are hard to turn,
disassemble them and clean them.
・After re-assembly, be sure to apply a grease them
sufficiently:
6. CLEANING OF MOWER DECK
a. After mowing, clear the underside of the mower
deck and blades from accumulated grass and dirt.
Especially after operation in wet grass, wash them
without failing, otherwise accumulated wet grass
and dirt will cause performance deterioration.
CAUTION: When pouring the water onto
the mower deck to clean, be sure to make
revolution of engine low.
SCMA54
SCMB60
SSM54
