SCMA54,SCMB60,SSM54
94
CAUTION : When swinging the mower deck,
take care to prevent it from hitting you.
10. INSTALLATION OF MULCHING GUIDE
(SCMA54, SCMB60)
a. Lift up front side of mower deck for flipping up. Lock
the mower deck by inserting the pin into the hole in
the lift arm.
b. Assemble the mulching guide. Set the rear side of
the mulching guide to chuter side in the rear of the
mower deck.
c. Fix the mulching guide, with bolt (M10x20).
(1) Mulching guide
(2) Bolt (M10x20)

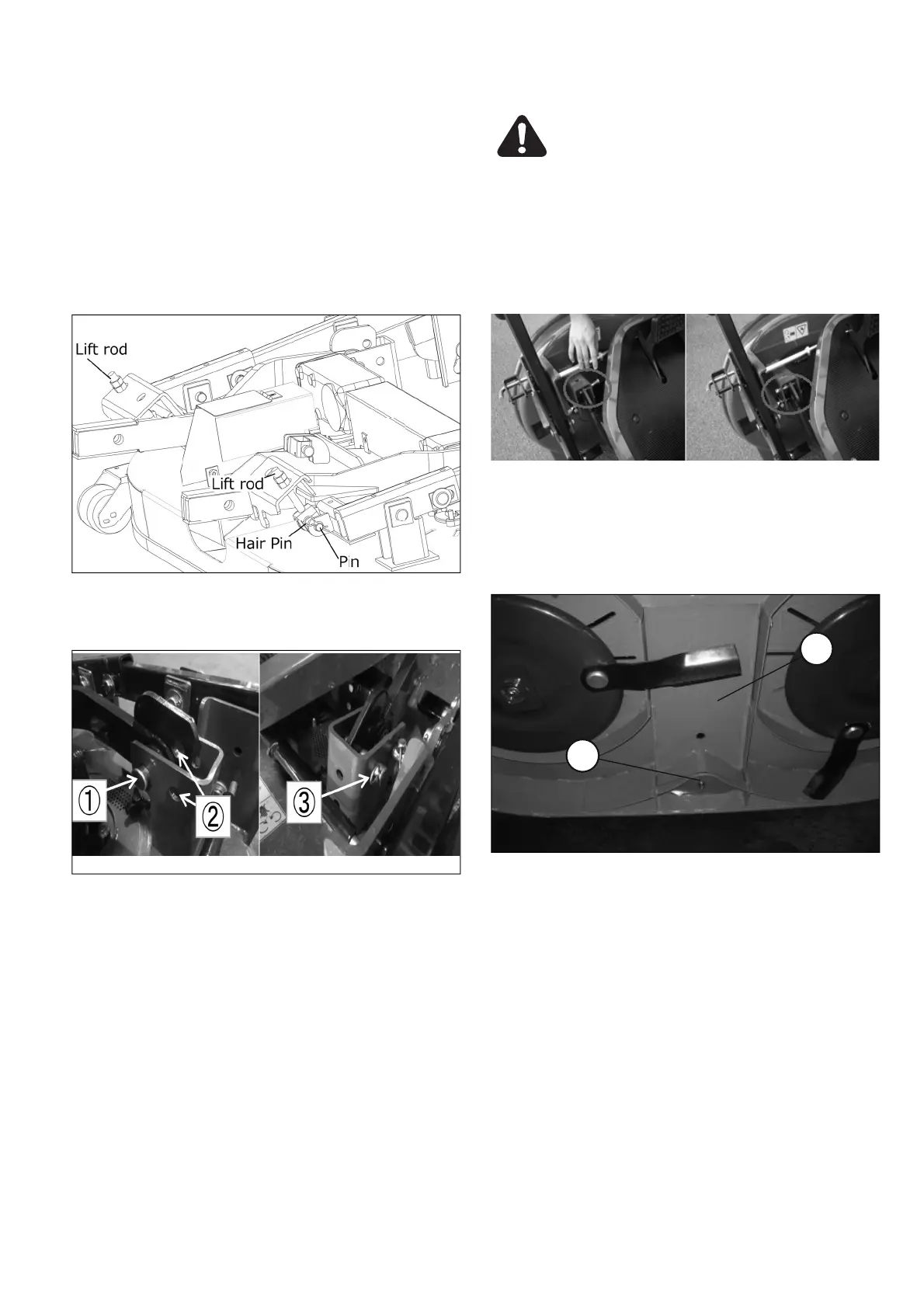

9. FLIPPING UP OF MOWER DECK
a. Fold up the left-hand side and right-hand side mirror
ASSY.
b. Lift up the mower deck in the highest position by
shifting the mower lift lever. Separate the lift rod by
moving pin and the fulcrum plate in the rear of the
mower deck. Remove the chain of the universal
joint.
c. Lower the mower deck. Change the pin for flipping
up position as follow (On both side).
(1) Pin
(2) Flipping up position
(3) Hair pin
d. Lift up the mower deck in the highest position by
shifting the mower lift lever.
e. Lift up front side of mower deck, and then lock the
mower deck by inserting the pin (use removed pin
from the lift rod) into the hole.
f. Swing the mower deck. Then insert the link pin of
rear rod to the stopper on bracket of lift arm. This
should be done on both sides.
1
2
