CHAPTER 2. ATTACHING AND DETACHING MOWER DECK
87
4. DETACHING THE MOWER DECK
Detach the mower deck in reverse order of attaching:
Remove the drive shaft first and then the mower deck.
CAUTION: Be sure to disconnect the
universal joint on the PTO shaft of the front
mower.
IMPORTANT: Be sure to keep the removed parts.
2. ADJUSTMENT OF LINKAGE

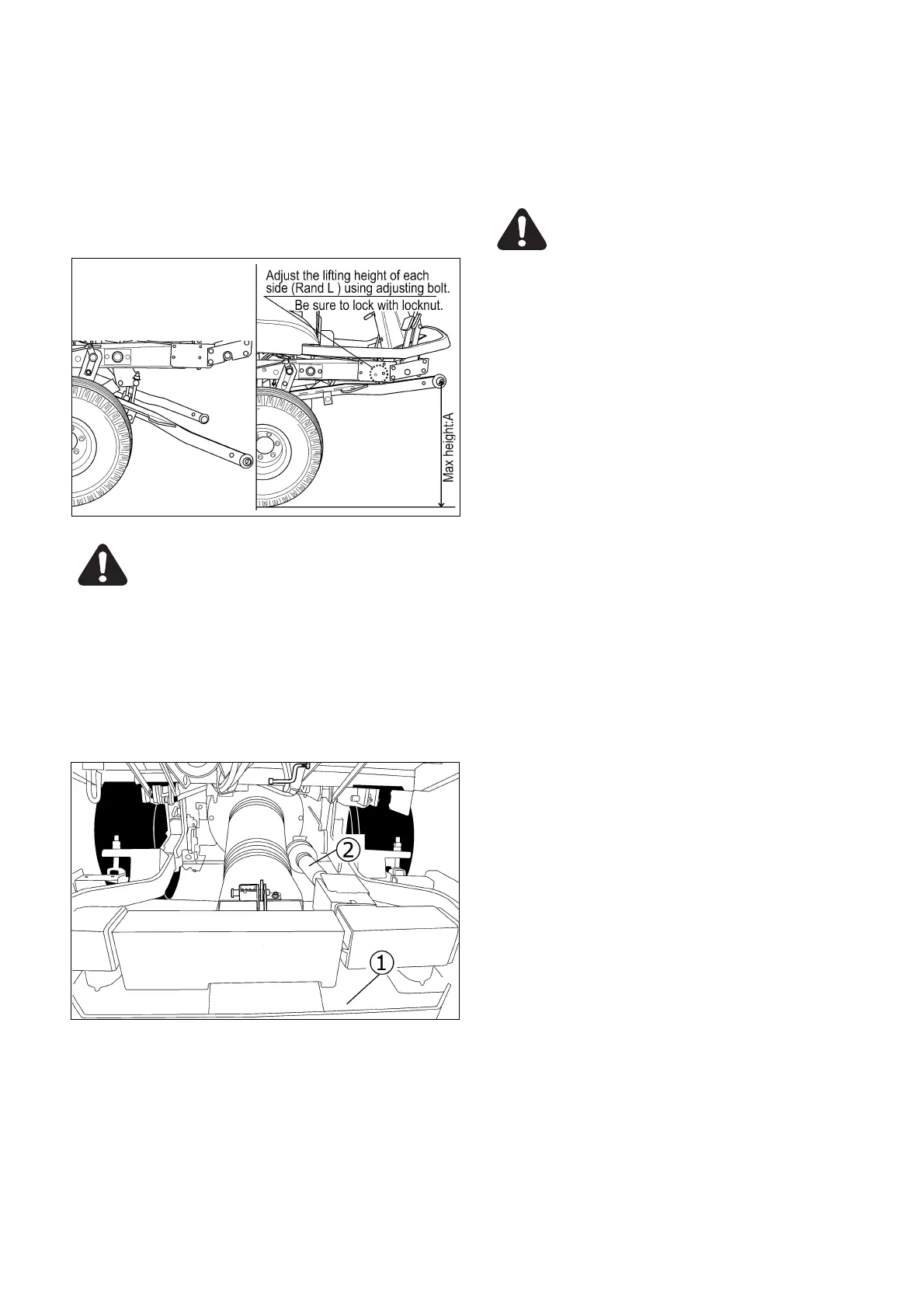

2.1. ADJUSTMENT OF MAXIMUM LIFTING HEIGHT
Be sure to adjust the lifting height of each side.
Max.height:A =575mm ± 10mm
CAUTION: Incorrect adjustment may lead
hitting between the step and gear box of
mower deck or shortening of the minimum
ground clearance.
3. ATTACHING THE UNIVERSAL JOINT
Hold the ring of the universal joint pressed in one side
the joint onto the PTO shaft while aligning the splines.
Fix the chain for universal joint to the linkage.
(1) Mower deck (2) Universal joint
To Next Page
