(1) Hood
(2) Handle
When you inspect the engine room, lift up the collector
fully, and lock the lift cylinder by the lift cylinder lock
plate, 1.
When you encounter any abnormality or trouble which is
not mentioned in this manual, please ask your dealer for
service.
WARNING: When lubricating or servicing
the front mower:
・Place it on level, and hard ground.
・Stop the engine and remove the starter
key.
・Apply the parking brake securely.
・Shift the lift lever forward to DOWN
position to lower the mower deck onto the
ground.
・Service the front mower after the engine
has cooled down sufficiently.
With these items in mind, confirm the
safety conditions for maintenance
operation without fail beforehand.
CAUTION: Lock the lift cylinder without
fail. Otherwise, when operator touch the lift
lever by accident, it may cause to be caught
in the falling container.
1. SERVICE ACCESS
Opening / Closing hood
To open the hood, 1, lift up the hood by handle, 2, to
upward.
To close the hood, pull down the hood by using handle.
WARNING: When opening / closing the
hood, be sure to stop the engine and
remove the starter key.
CHAPTER 8. MAINTENANCE

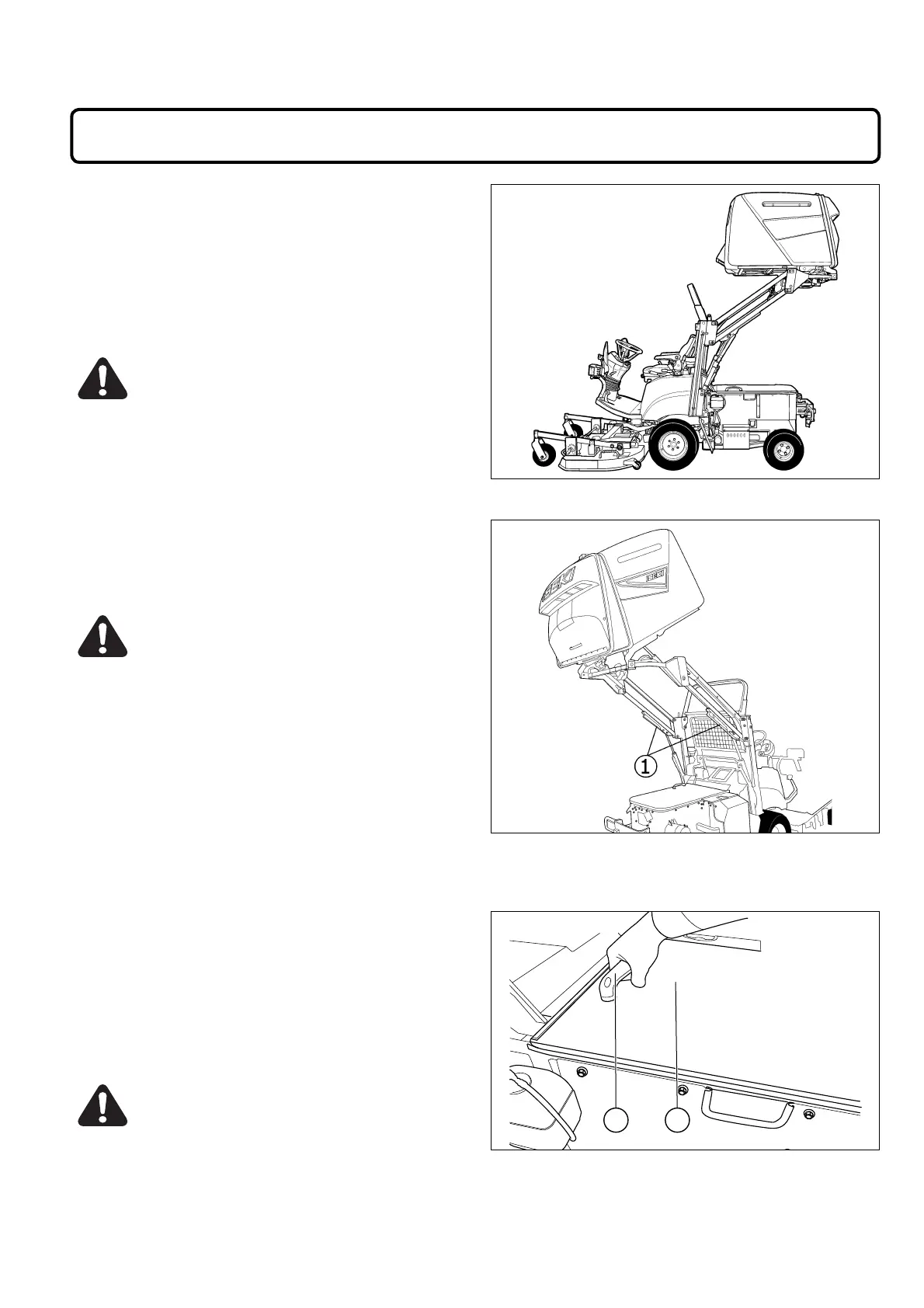

FIG. 51
FIG. 52
FIG. 53
12
(1) Lift cylinder lock
