1.1. STARTER SWITCH
: OFF position: the engine stops and all electric
circuits are turned off.
: ON position: the key turns to this position after
starting the engine and remains at this position
during operation.
: GLOW position: the engine is pre-heated
: START position: the starter motor is switched on.
1.2. COMBINATION SWITCH
This switch includes the head lamp switch, turn signal
switch and horn button.
(A) Head Lamp Switch
OFF position: Off
1st position: Position lamp (illuminates meter panel)
2nd position: Position lamp & head lamp (low beam or
high beam can be selected by moving
combination switch)
(B) Turn Signal Switch
: Right-hand turn signal
: Off
: Left-hand turn signal
NOTE: Turn signal switch works while the starter
switch is in the ON position.
NOTE: Turning indicator lamps will not self-cancel.
Return the turn signal switch lever to the center
position after completing turn.
(C) Horn Button
The horn is activated by pushing the horn mark.
1.3. BEACON SWITCH
The beacon lamp (optional) illuminates while beacon
switch is in the ON position.
1.4. HAZARD SWITCH
The turning signal lamps blink while hazard switch is in
the ON position.

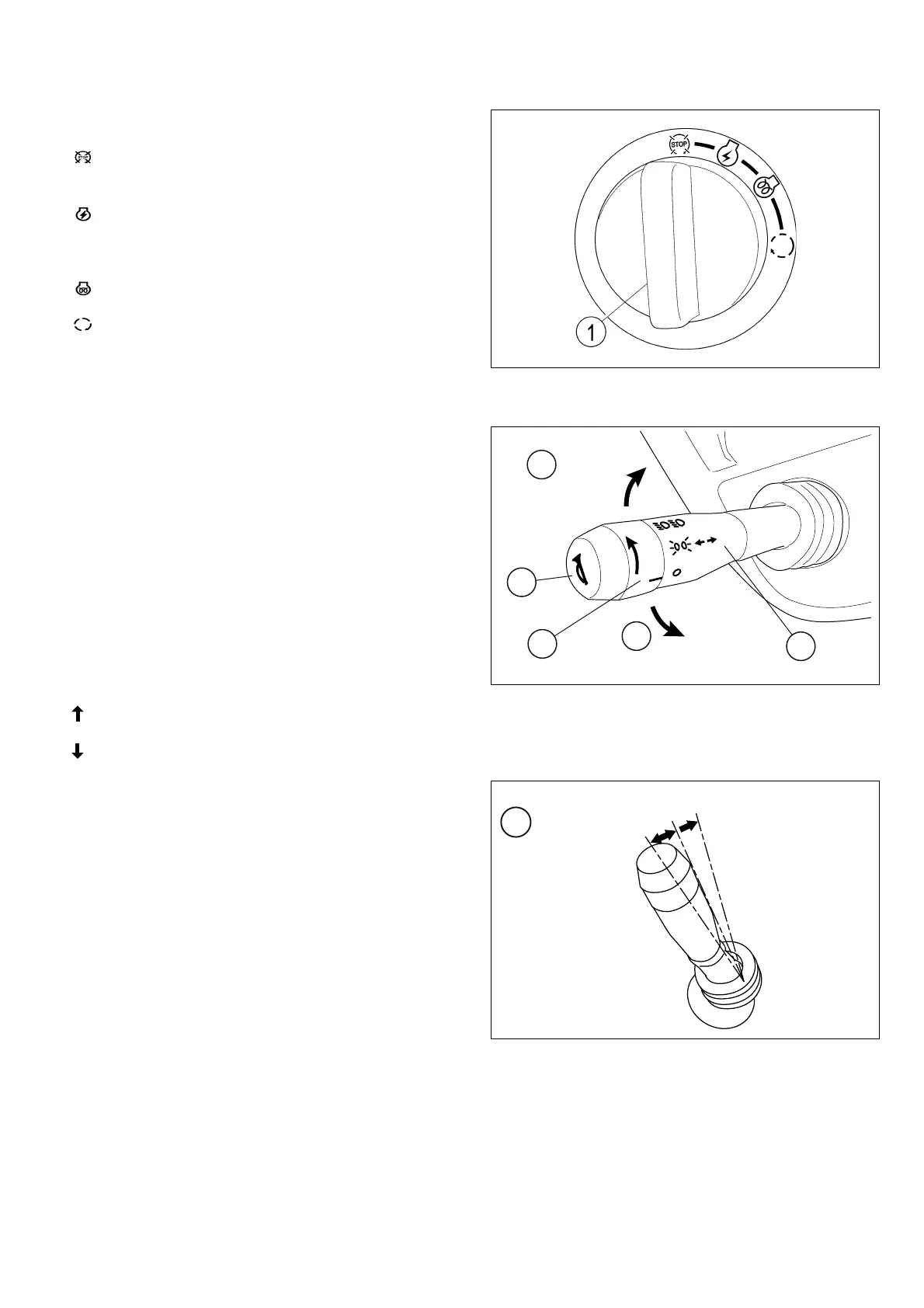

(1) Starter switch
