3.3. COLLECTOR DUMP LEVER
With this lever, the collector is dumped or closed.
CLOSE:
Move the lever forward, the container is closed.
DUMP:
Move the lever backward, the collector is
dumped.
3.4. THROTTLE LEVER
With this lever, the engine speed is controlled.
LOW:
Move the lever backward (towards the " turtle "
mark), the engine decelerates.
HIGH:
Move the lever forward (towards the " rabbit "
mark), the engine accelerates.
4. OTHER CONTROLS
4.1. SAFETY SWITCHES
The safety devices are equipped on the operator's seat,
brake pedal and engine hood. Before starting engine,
engine hood should be closed, the operator should be
seated in the operator's seat, and depress the brake
pedal fully.
CAUTION: When the engine does not start
due to a defective safety switch or does
not stop when the operator has left the
operator's seat, consult your dealer at once
without fail.
4.2. HST UNLOADING BUTTON
Push button to unload the HST of pressure, which allows
the front mower to move without starting the engine. The
button should be accessed from right side.
(To access from left side, it need to remove the cover by
removing bolt.)
CAUTION: Make sure to move the front
mower for only short distance. Do not use it
for towing.

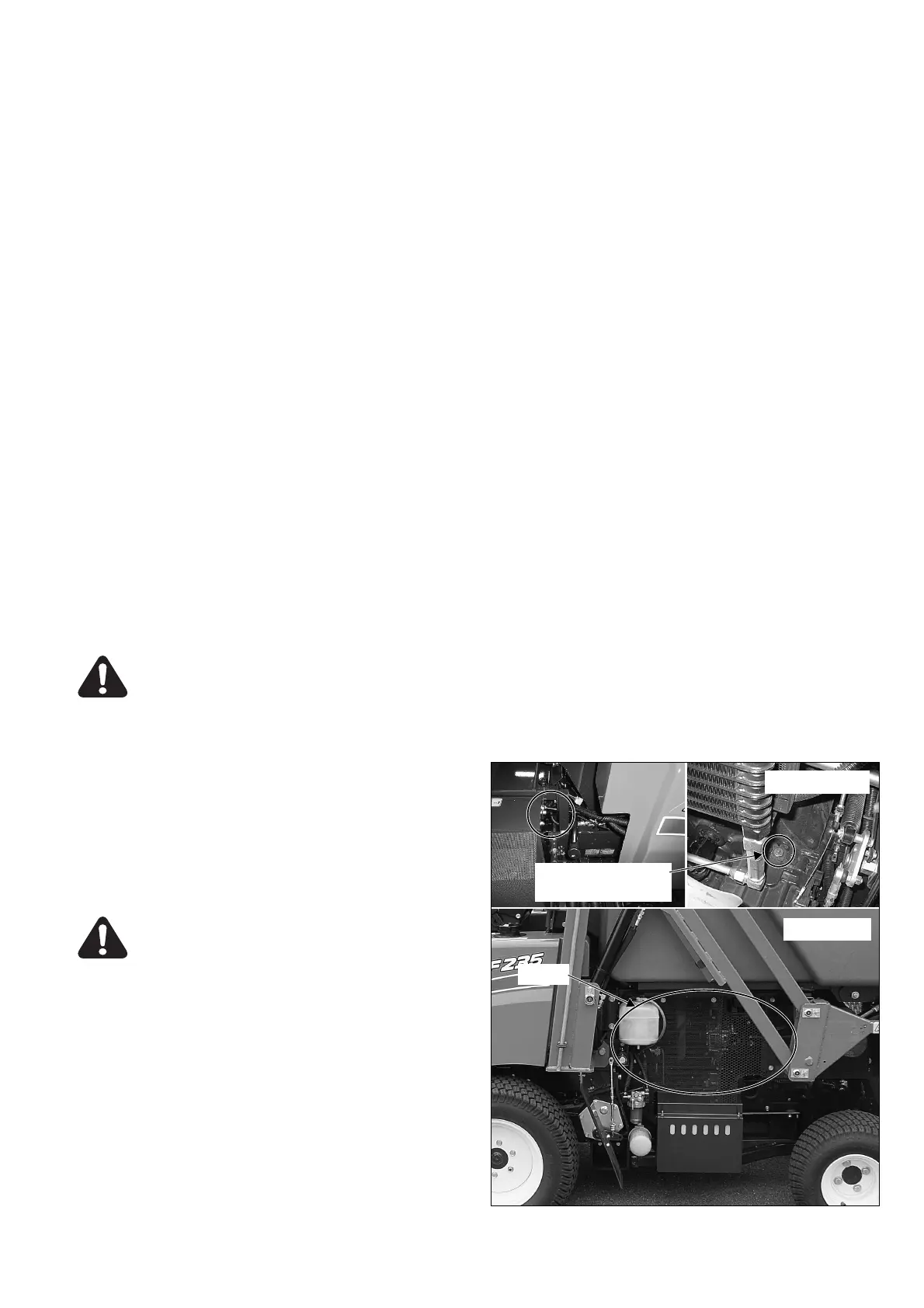

HST UNLOADING
BUTTON
Cover
Left side
Right side
FIG. 40
