SCMA54,SCMB60,SSM54
86
WARNING: When attaching or detaching the
mower deck to the front mower:
・Place the front mower on level, hard
ground.
・Apply the parking brake securely.
・Do not start the engine except for
operating the mower lift lever.

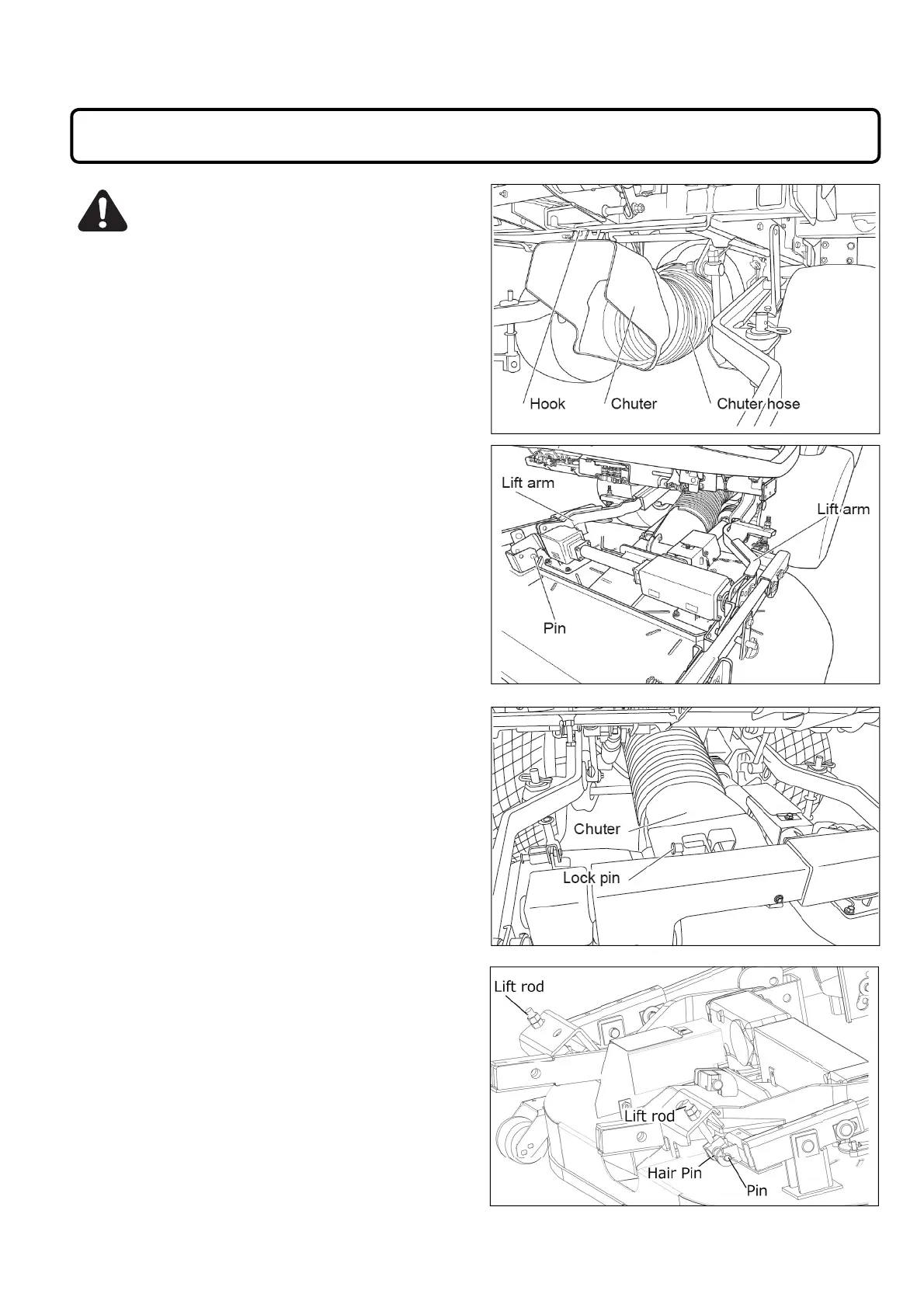

1. ATTACHING THE MOWER DECK
Attach the mower deck first to the front mower and then
connect the drive shaft.
■ INSTALLATION OF MOWER DECK
a. Start the engine and shift the mower lift lever to “UP”
position to lift up the lift arm, then stop the engine.
Insert the chuter hose into the blower hall, hook the
chuter on lower frame.
b. Put the mower deck in front of the front mower, shift
the mower lift lever to “DOWN” position, then lift
down the lift arm.
c. Assemble the right-hand and left-hand lift arms to
the mower deck, with pin.
IMPORTANT: When it is difficult to align the hole in the
lift bracket and the hole in the link ball,
never attempt to insert the pin forcibly.
But sway the mower deck right and left
and the pin can be inserted easily.
d. Attach the chuter on mower deck, fix it by lock pin.
e. Start the engine and lift up the mower deck. Stop
the engine and fix the fulcrum plate in the back
of the mower deck to the folk under the lift rod by
inserting pin and hair pin. Lower the mower deck
onto the ground.
CHAPTER 2. ATTACHING AND DETACHING MOWER DECK
