CHAPTER 2. COLLECTOR OPERATION
115
1. BEFORE OPERATION
CAUTION:
・ Become familiar with the operation of
the front mower and understand safety
instructions by reading this manual
carefully.
・ Make sure that all safety covers and
guards are installed in position properly.
・ Before operating the collector, make sure
that collector lift and dump smoothly.
・ When operating the collector, make sure
that hydraulic hose is not pulled and
interfered.

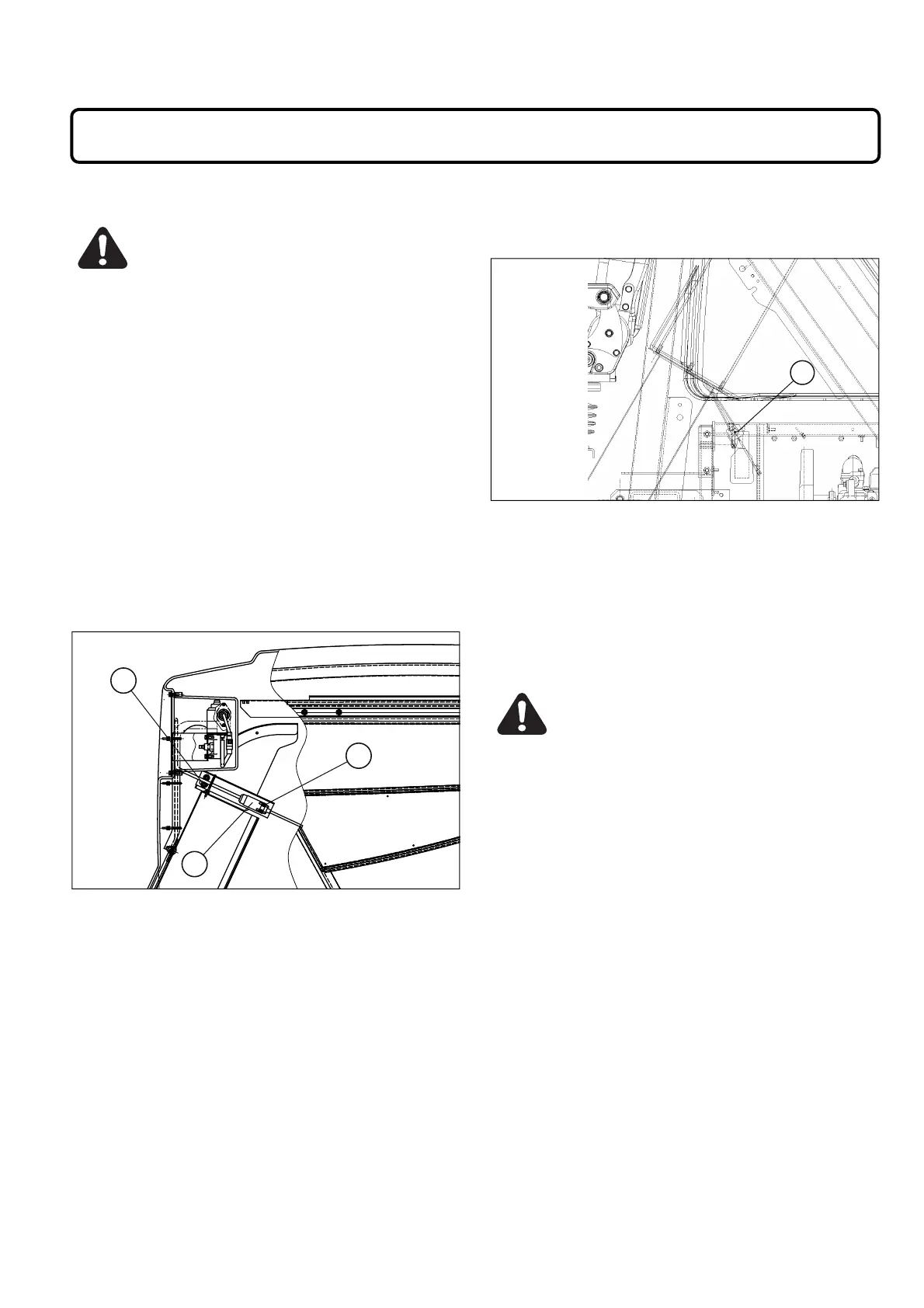

2. ADJUSTING THE GRASS LIMIT SENSOR
a. Filler level of container depends on the
adjustment of the adjust nut/M8 (2) and adjust
bolt/M4 (3).
b. Adjust the filler level of container by the adjust
nut/M8 (2) and adjust bolt/M4 (3).
(1) Container limit sensor
(2) Adjust nut/M8
(3) Adjust bolt/M4
c. When changing the sensor level to slow, loosen
adjust nut/M8 (2), and adjust container limit
sensor (1) to downward.
d. When changing the sensor level to quick, loosen
adjust nut/M8 (2), and adjust container limit
sensor (1) to upward.
e. Turn the starter switch to ON position. Make sure
that full container monitor lamp on monitor lamp
array is illuminated when operating the container
limit sensor.
CHAPTER 2. COLLECTOR OPERATION
1
3
2
3. INSPECTION BEFORE OPERATION
・Before operating, inspect the points as follows.
(4) Safety switch
a. Park the front mower on level ground. Set the
engine speed to approximately 1800 - 2000 RPM.
Push the mower PTO switch to ON position,
and then lift and dump the container. Make
sure that mower PTO and blower PTO will stop
automatically by operating the safety switch.
CAUTION: Make sure that mower PTO and
blower PTO will stop after 1 second from
operating blower shooter switch. Do not
approach the mower PTO and blower PTO.
4
