(3) Beacon switch
(4) Hazard switch
(5) Mower and Blower switch
(6) PTO rotation switch(PTO ON/OFF switch )
1.5 MOWER AND BLOWER SWITCH
The mower and blower switch has 3 positions, it is used
to select a PTO.
(Upper position: MOWER PTO)
In this position the mower PTO can be engaged. To disengage
the mower PTO, push the top of mower PTO switch.
IMPORTANT: When using mower PTO, start the blow-
er PTO first. (Except for mower deck
with mulching blades.)
NOTE: When the mower deck is lifted, mower PTO
cannot be operated.
(Lower position: BLOWER PTO)
In this position the blower PTO can be engaged. To disengage
the blower PTO, push the top of blower PTO switch.
NOTE: When blower and mower PTO are operating,
both blower and mower PTO will stop by push-
ing the blower PTO switch. When mower deck
with mulching plates is equipped, do not use
blower PTO. Change fuse in fuse box.
NOTE: When the collector is lifted, blower PTO cannot
be operated.
NOTE: When this switch is in center position, both
mower and blower can be operated, if the PTO
ON/OFF switch is is activated.
1.6 PTO ROTATION SWITCH(PTO ON/OFF SWITCH)
Used to Engage or disengage the PTO selected by the
MOWER and BLOWER switch. The Lower portion of the
switch has a safety lock.
MOWER PTO Rotation
1.
Set Mower and Blower Switch in the upper position (1).
2. Slide the safety lock on the bottom of the PTO
ROTATION SWITCH (2) forward (3).
3. While holding the safety lock, push down on the
PTO engagement position (2) of the switch.
BLOWER PTO Rotation
1.
Set Mower and Blower Switch in the lower position (2).
2. Slide the safety lock on the bottom of the PTO
ROTATION SWITCH (2) forward (3).
3. While holding the safety lock, push down on the
PTO engagement position (2) of the switch.
MOWER and BLOWER PTO Rotation
1.
Set Mower and Blower Switch in the center position (3).
2. Slide the safety lock on the bottom of the PTO
ROTATION SWITCH (2) forward (3).
3. While holding the safety lock, push down on the
PTO engagement position (2) of the switch.
How to stop PTO operation
Push DISENGAGE PTO position (1) of PTO Rotation Switch.
4 3 5 6

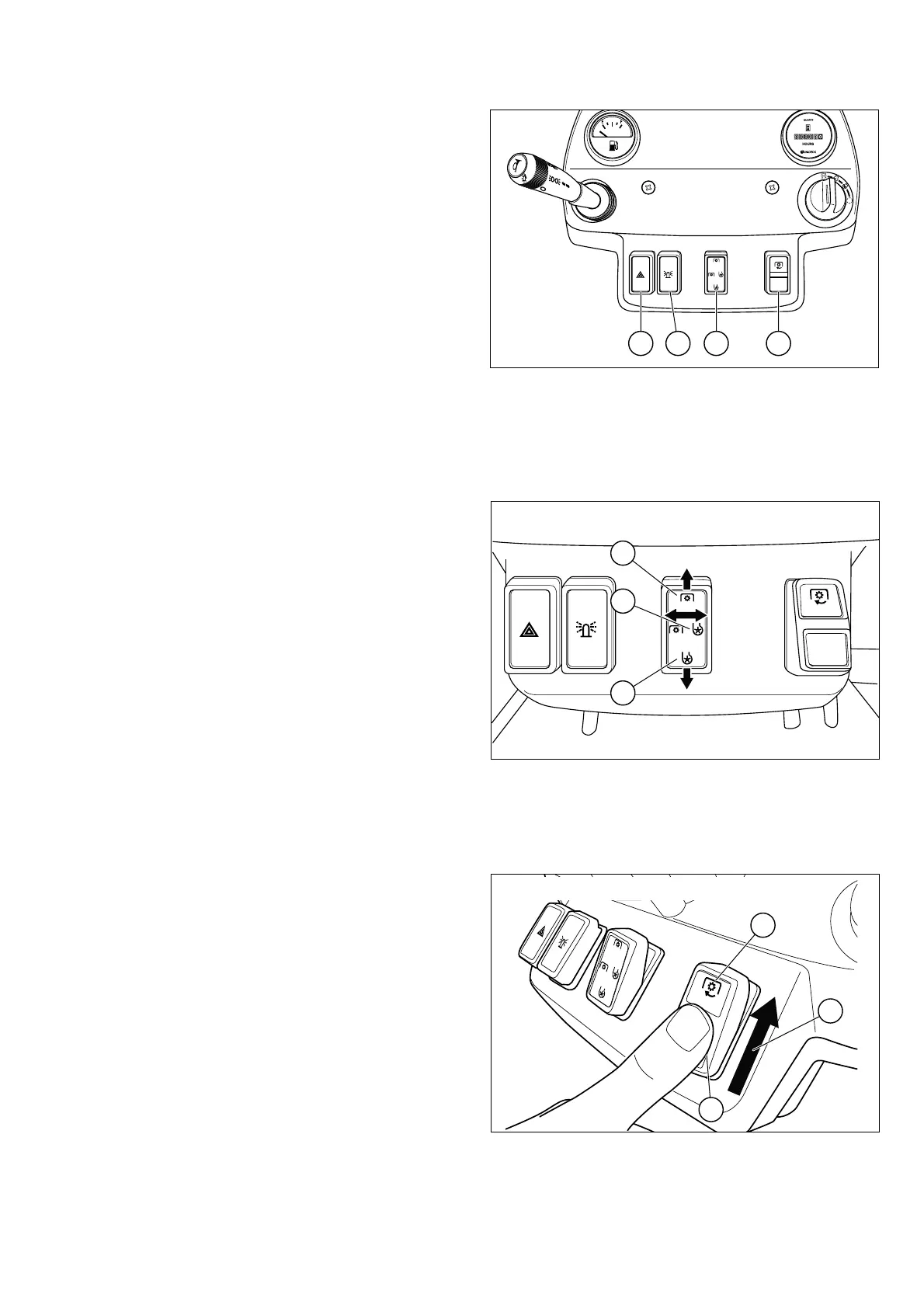

FIG. 32
FIG. 33
(1) MOWER (Upper position)
(2) BLOWER (Lower position)
(3) For MOWER and BLOWER (Center position)
FIG. 34
(1) DISENGAGE PTO (Upper position)
(2) ENGAGE PTO with safety lock (Lower position)
(3) Sliding Direction to disable safety lock
1
3
2
PTO ROTATION SWITCH (6)
1
2
3
MOWER and BLOWER SWITCH (5)
