SF224,235
68
(1) Front cover
(2) Fuse box
(3) Slow-blow fuse (60A)
(4) Slow-blow fuse (50A)
(5) Slow-blow fuse (40A)

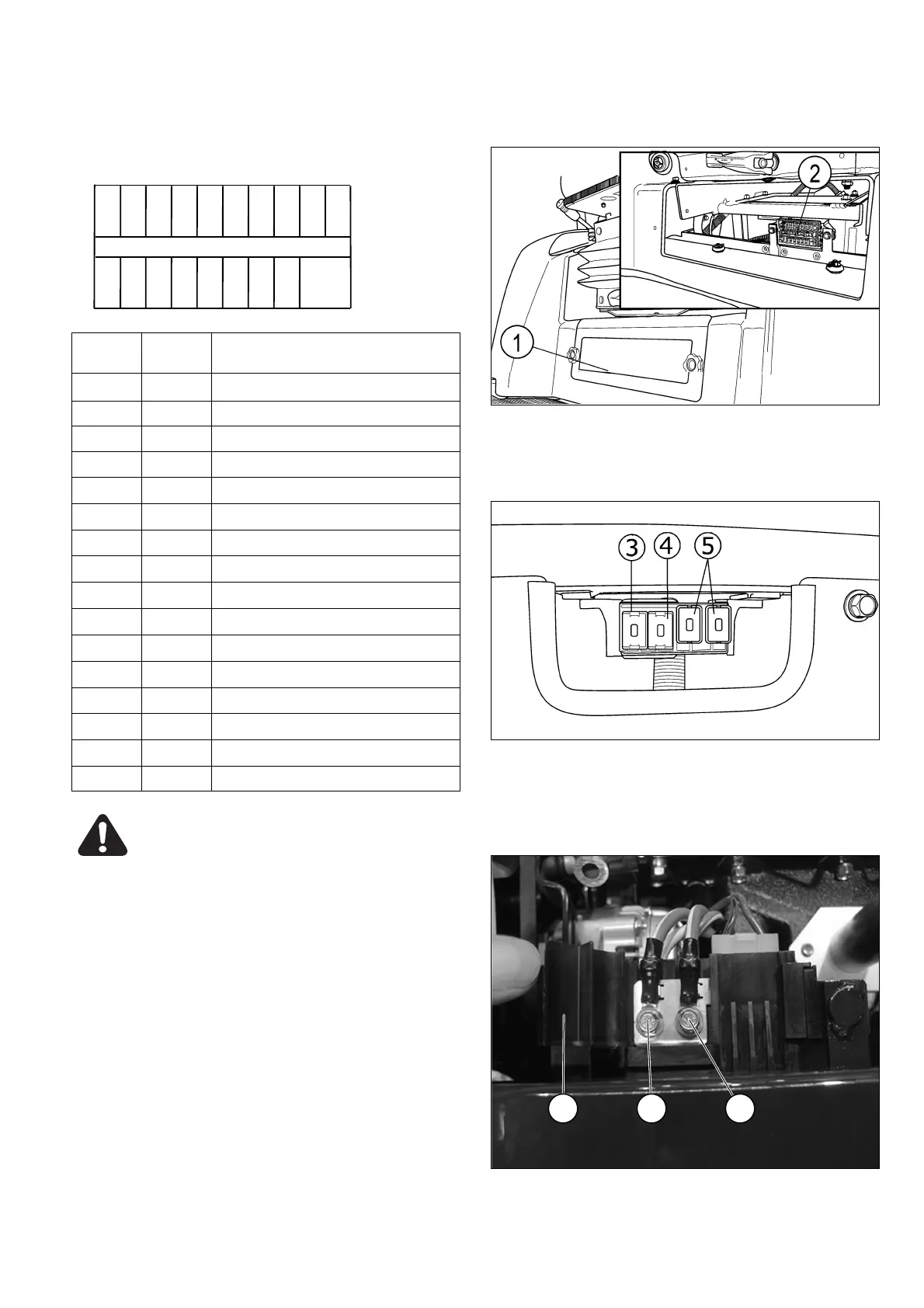

22. FUSES AND WIRING
The fuse box, 2, is located under the seat, 1.
Ref
Fuse
capacity
Function
A 5A Glow1
B 5A Glow2
C 5A Pump relay
D 5A Solenoid relay
E 5A Timer relay
F 15A Controller
G 10A Mater panel
H 15A Turn lamp (ACC)
I 20A Motor
J 15A Turn lamp (B)
K 10A Position horn
L 20A Head lamp
M 10A Brake lamp
N 10A Beacon lamp
O 20A Option (B)
P 10A Starter relay
CAUTION: Never replace blown fuses or
slow-blow fuse with wire.
The slow-blow fuse boxes are located at left hand side
of radiator.
To replacing 60A and 50A slow blow fuse, follow the
steps:
1. Open the fuse box cover,1, from top side of fuse
box.
2. Loosen the bolt.
Bolt for 60A - 2
Bolt for 50A - 3
IMPORTANT:
・
When a fuse or a slow-blow fuse is blown, be sure to
find the trouble and correct it. When the cause is not
clear, consult your dealer.
・
Be sure to use specified fuses. Larger-capacity fuses
will cause burn-out of electric accessories and wiring.
FIG. 86
ABCDEFGH
JKLMNOPI
1 2 3
FIG. 88
FIG. 87
