Iseki SBC950 - Brake Pedal Play

SF224,235
58

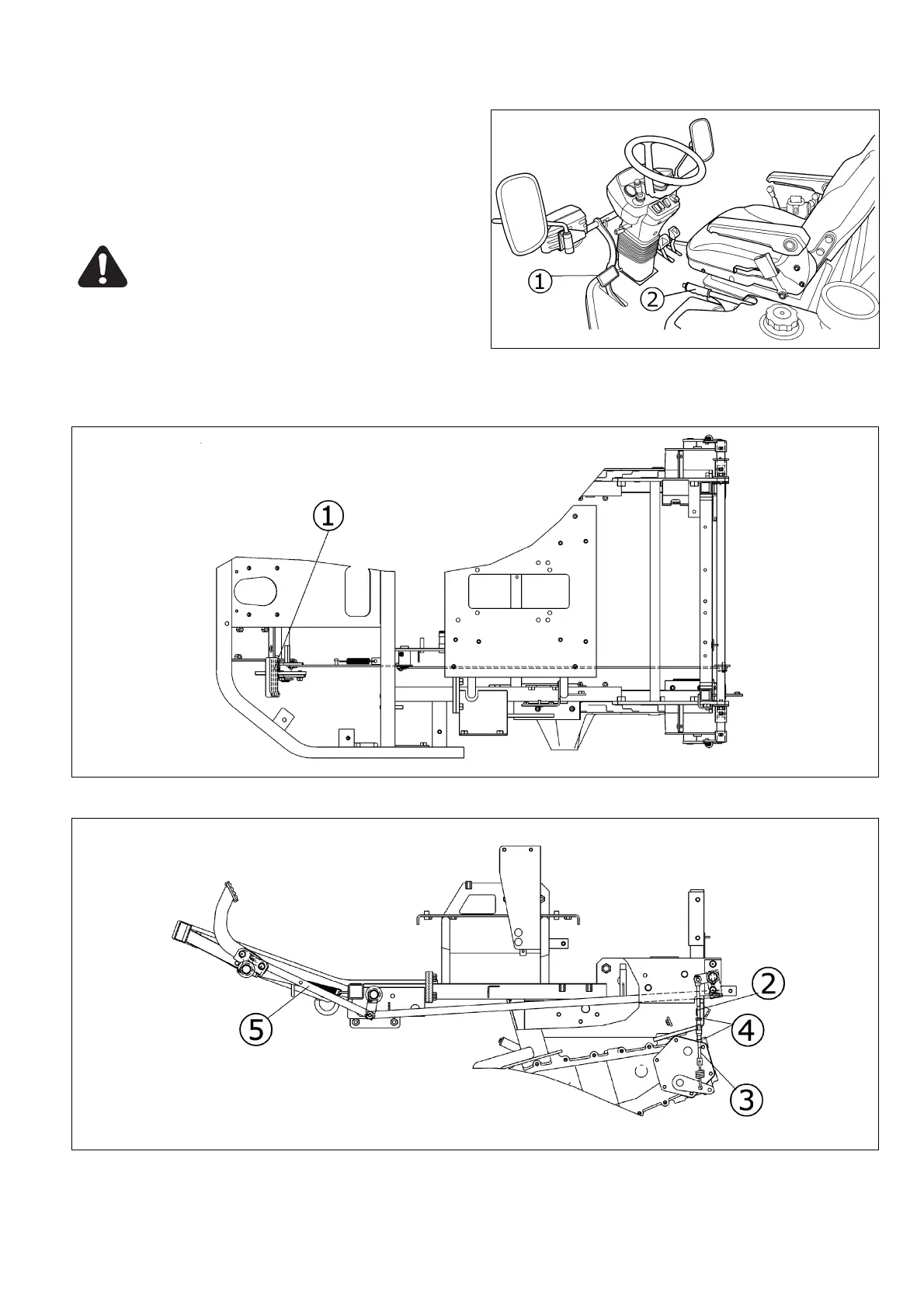

10. BRAKE PEDAL PLAY
Depress the brake pedal,1, and apply the parking brake,
2. Adjust the length of brake rod, 3. Release the parking
brake lever and make sure that there is play on the
brake arm.
DANGER:
・As the front mower is used, the brake
pedal play becomes larger. Excessive play
will affect the proper brake performance,
which is very dangerous.
・Before operation, be sure to check the
brake pedal play.
(see from top)
(see from right side)
(1) Brake pedal (2) Parking brake
FIG. 68
(1) Brake pedal (2) Brake rod (M08x120) (3) Brake rod (M08x72)
(4) Lock nuts (5) Brake arm (6) Parking brake lever
FIG. 69
FIG. 70
