CHAPTER 2. COLLECTOR OPERATION
117

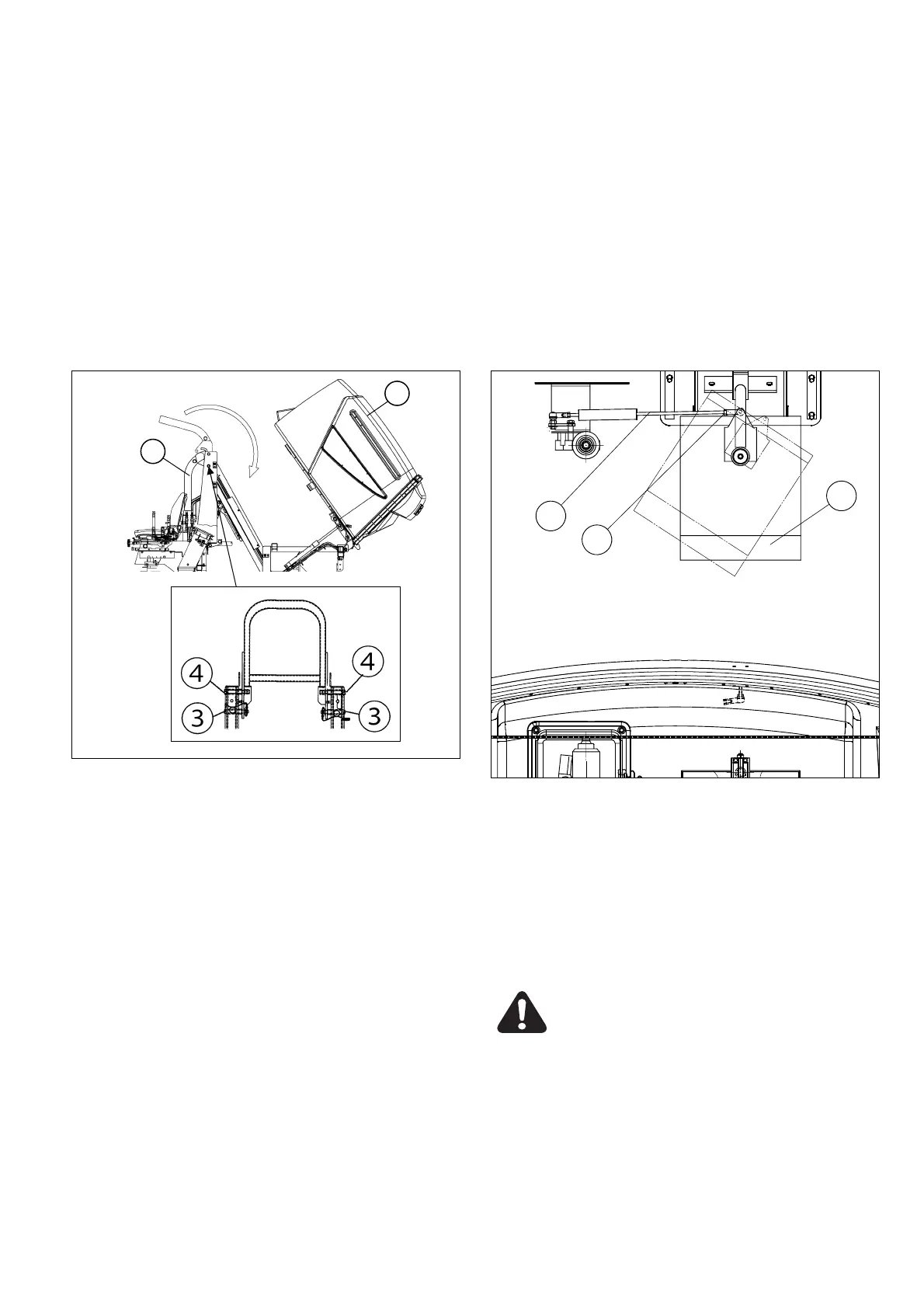

8. ADJUSTMENT OF THE SWING ROD
a. When grass is concentrate at the right side into
the container, extend swing rod (1). When grass
is concentrated at the left side into the container,
shorten swing rod.
b. To adjust the swing rod, remove L bowl (3) from
swing plate (2) side, and loosen lock nut of L bowl
(3).
b. After adjusting, assemble L bowl (3) and tighten
lock nut.
(1) Swing rod
(2) Swing cover
(3) L bowl
9. DISCHARGE OF GRASS
a. When grass is discharged from the container, be
sure to park it on hard, level ground.
DANGER: Do not discharge grass at the slope
area because balance cannot be kept when
lifting or dumping collector.
6. MOWING WORK AT THE PLACE OF THE FLAT
WITHA LOT OF TWIGS
a. When it is operated at the place with many twigs,
Rops (1) can be folded.
NOTE : The use of the upper frame can be avoided
only when there is no risk at all of rolling-over.
b. Lift or dump container (2).
c. Loosen Bolt/M16x110 (4), and remove bolt/
M16x30 (3). Rotate ROPS (1) to the rear side of the
machine. Fix bolts and nuts firmly.
(1) ROPS (3) Pin
(2) Container (4) Bolt/M16x120
7. WARNING HORN FOR FULL CONTAINER
SOUNDS
a. When the container is full, mower and blower PTO
are stopped, and warning horn sounds.
1
2
2
3
1
