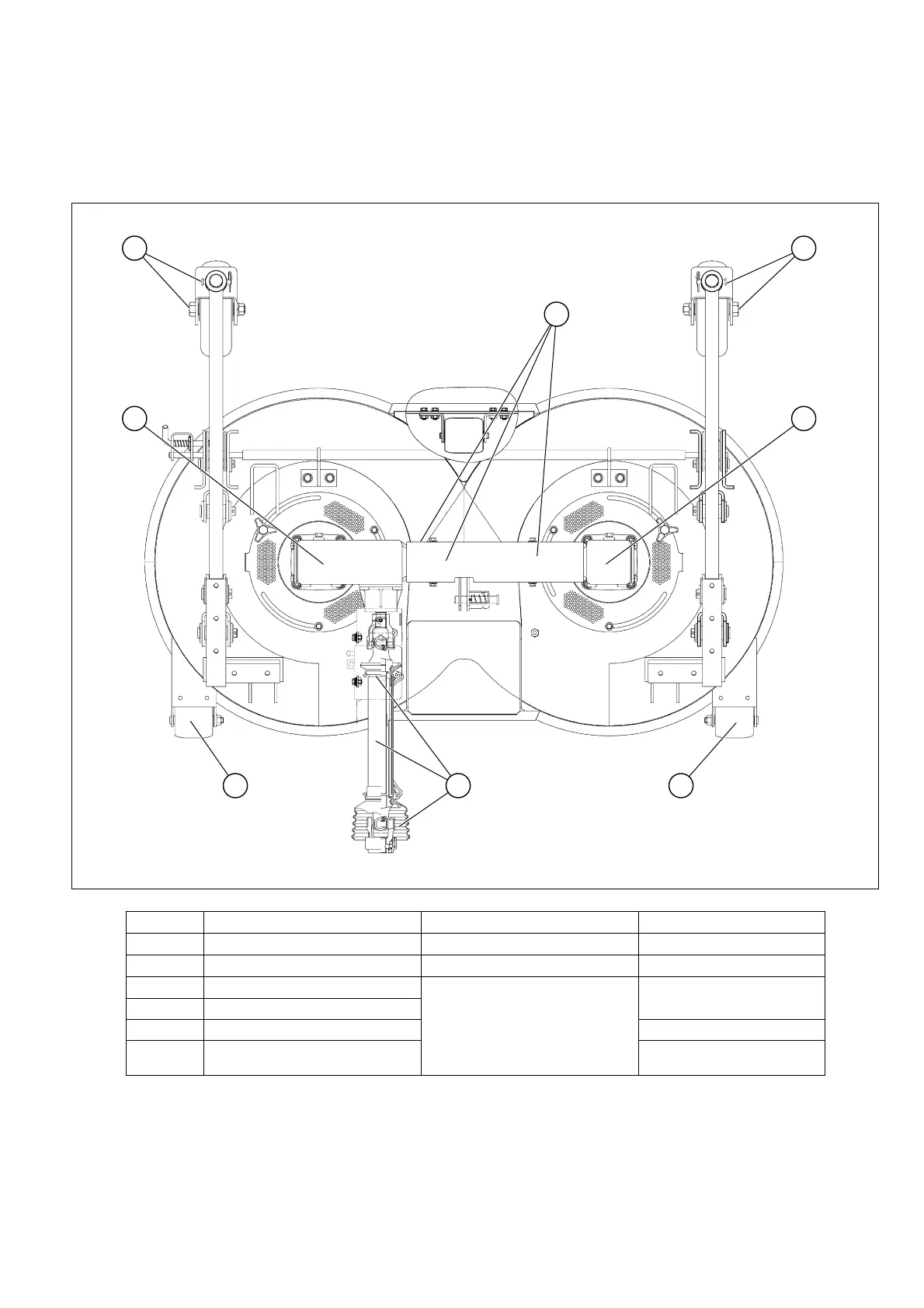

8. FILLING DIAGRAM
All the shafts mentioned below have a grease fitting on their end. Grease them up periodically. The gear case should
also be serviced periodically for oil replenishment and replacement.
5 5
21
6
33
4
SCMA54
Ref.No Filling points Lubricants Quantity: liter (Imp. gal.)
1 Bevel gear case (LH) Gear oil SAE 80 0.8 ± 0.02 (0.21 ± 0.01)
2 Bevel gear case (RH) Gear oil SAE 80 0.35 ± 0.02 (0.09 ± 0.01)
3 Gauge wheel
Grease
Inject until grease
overflows
4 Drive shaft
5 Roller As required
6 Coupling
Inject until grease
overflows
