ISHIDA WM-NANO Service Manual

Appendix 2 Wrapping by WM-NANO
Appendix 2-4
Possible range of wrapping
・ Possible ranges of wrapping for each film width are given in Figures 7 through 12
under the condition of selected film material: vinyl chloride(MS-1), wrapping
capability: high speed, and tray shape: standard.・ Film material selection:
Possible range of wrapping is almost the same for “Poly 1.”
<M type>
Ishida Wrap/Ishida Wrap Super: Film width 350 mm

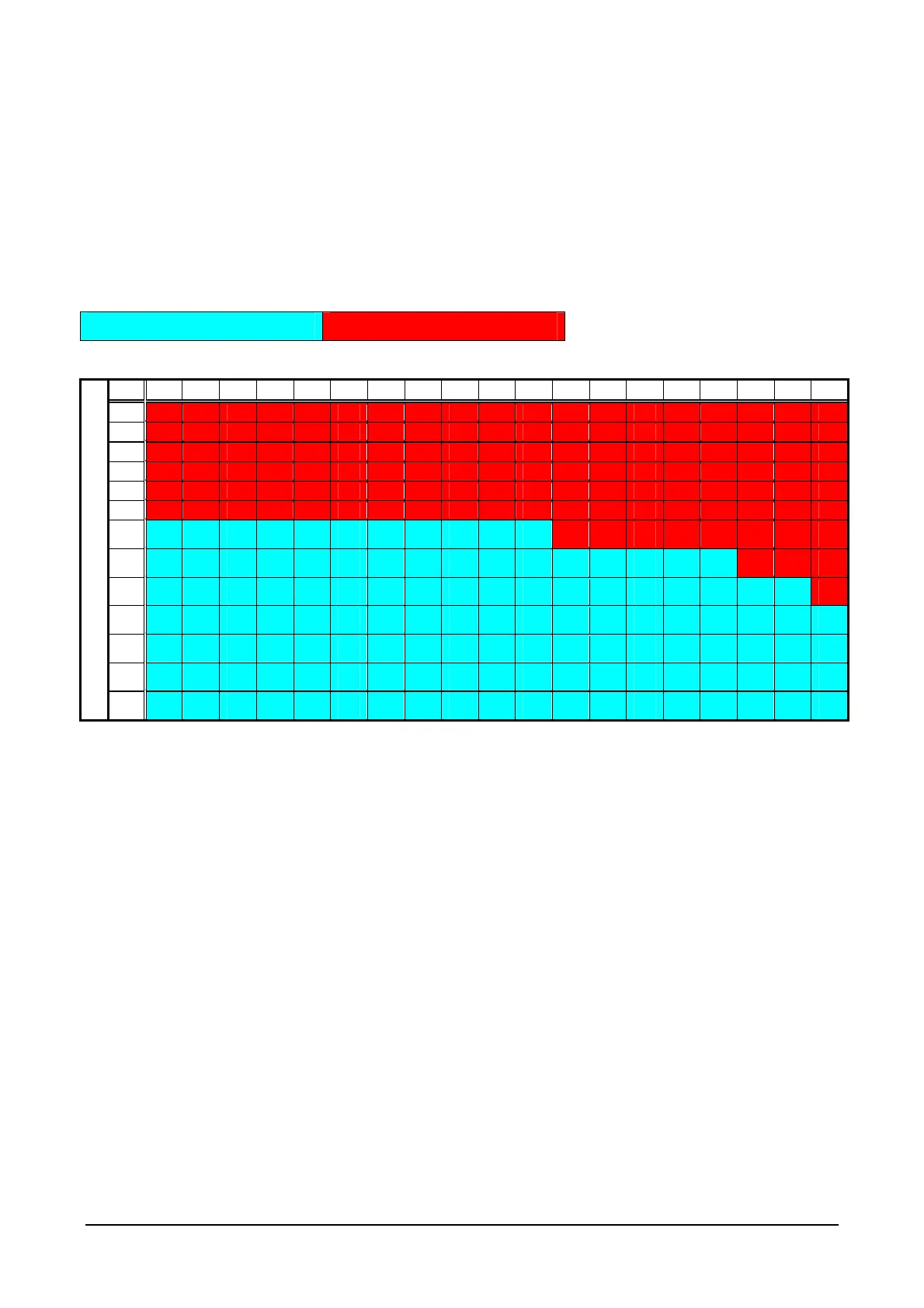

Trays with good wrapping condition Trays impossible for wrapping
●：Verified for wrapping feasibility by tests
Long side of the tray[mm]
Short side of the tray
150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330
210
200
190
180
170
160
150
● ●
140
● ●
130
● ●
120
● ● ● ●
110
●
100
● ● ● ● ● ●
90
Figure 7
