Chapter 2 Functions for Each Mode
L/R FOLDERS Adjusts the movement (squeezing amount) of the left and right squeezing
plates.
<> buttons: Squeeze outside, >< buttons: Squeeze inside

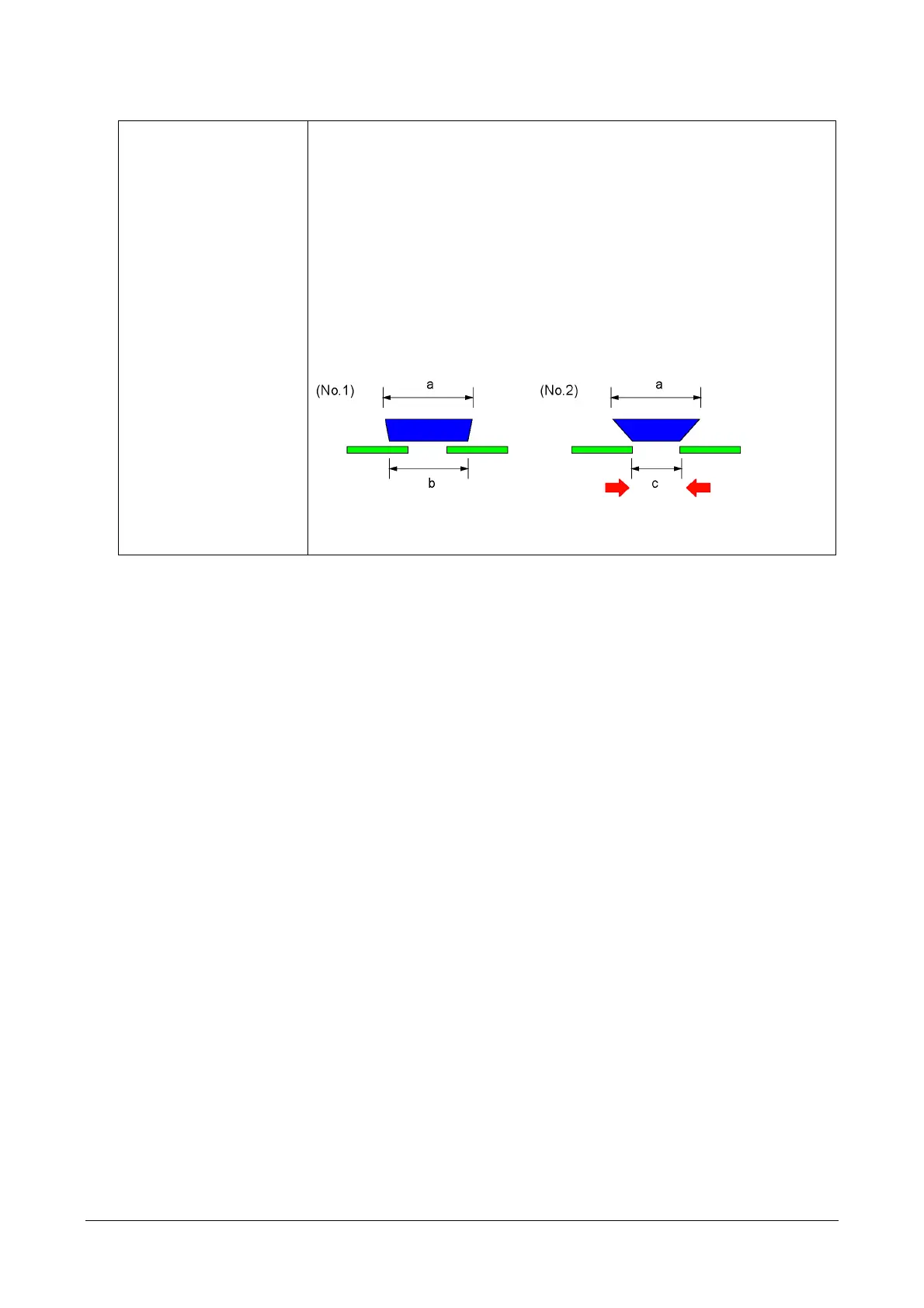

For tray registration, enter the upper-end dimensions (wider/narrower
side) "a" of the tray as shown in the figure below. The left and right
squeezing plates operate based on the dimensions.
If the bottom size of the tray is like the example (No.2), you must squeeze
more than for the size "b". Otherwise the film may not be sufficiently
attached to the bottom. In such a case, use L/R FOLDERS.
Tray
Tray
Squeezing
plates
Squeezing
plates
Need to be moved
further insides
- The default wrapping conditions are calculated based on the tray width, depth, and height.
- Specify a relative value from the default for each item. Specifying a +5 value for an item configures the
operation as +5 timing or amount to its default value.
- Common items are linked between [TRAY(BASIC)], [TRAY(ADJUST1)], and [TRAY(ADJUST2)] screens.
(A change of a value in one screen is reflected to the other screens)
- You can enter a value in a range from -99 to +99. Even if you enter a value over the limit for the item, the
operation shall be done with the limit value.
- Limit values differ for the items. They differ for tray sizes and film widths as well.
2-14
