Chapter 3 Adjustment Mode
4
）

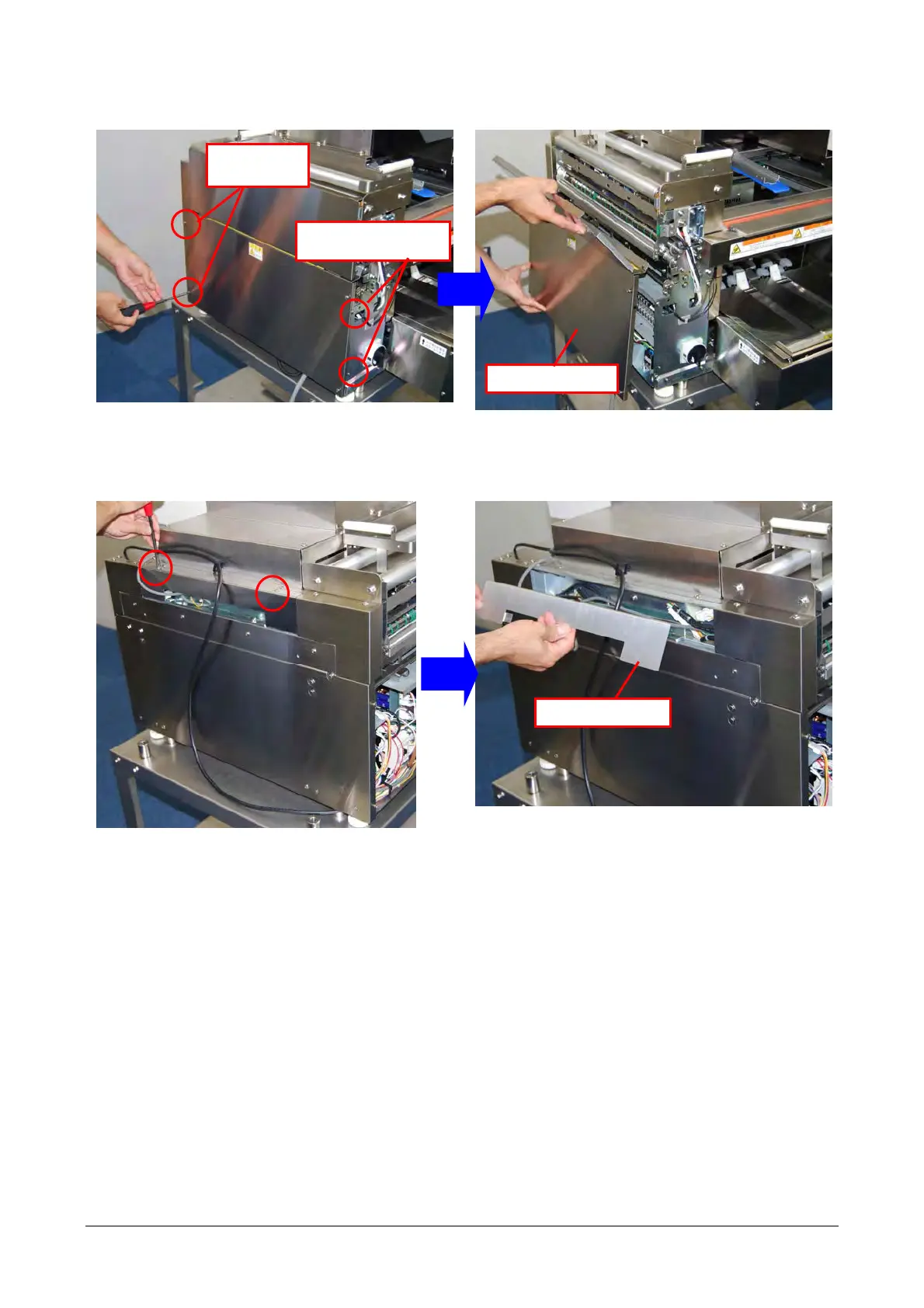

Remove screws (4) to remove the left lateral cover.
NOTE:
In removing the left lateral cover, pay attention not
to deform the hinge of the cover.
5
）
Remove screws (2) to remove the back-center cover.
Loosen the screws
on the front side.
Loosen the
screws.
Left lateral cover
Back center cover
3-9
