ISHIDA WM-NANO Service Manual

Chapter 3 Adjustment Mode

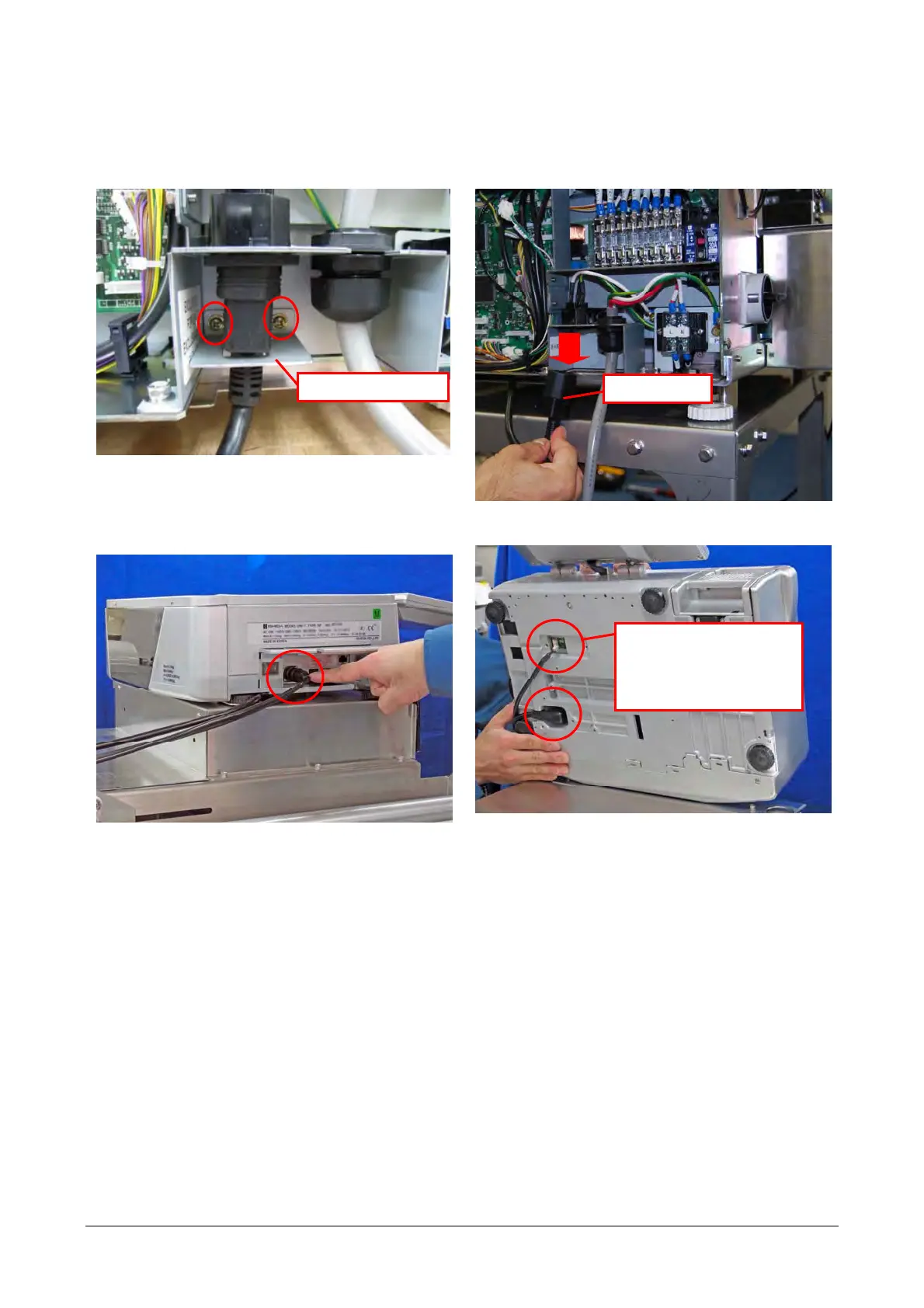

■ Removing the operation unit
1） Remove the screws (2) to remove the powe
r
cable retaining bracket on the left lateral of the
machine.
2） Pull out the power cable.
3） Pull out the communication cable at the
operation unit side.
4） Pull out the communication cable and powe
r
supply cable at the back of the operation unit.
5） Lift and remove the operation unit.
Retaining bracket
Power cable
If the cover is on the
communication cable,
remove the cover before
pulling out the cable.
3-12
