Chapter 3 Adjustment Mode
■ Removing the Wrapping Unit

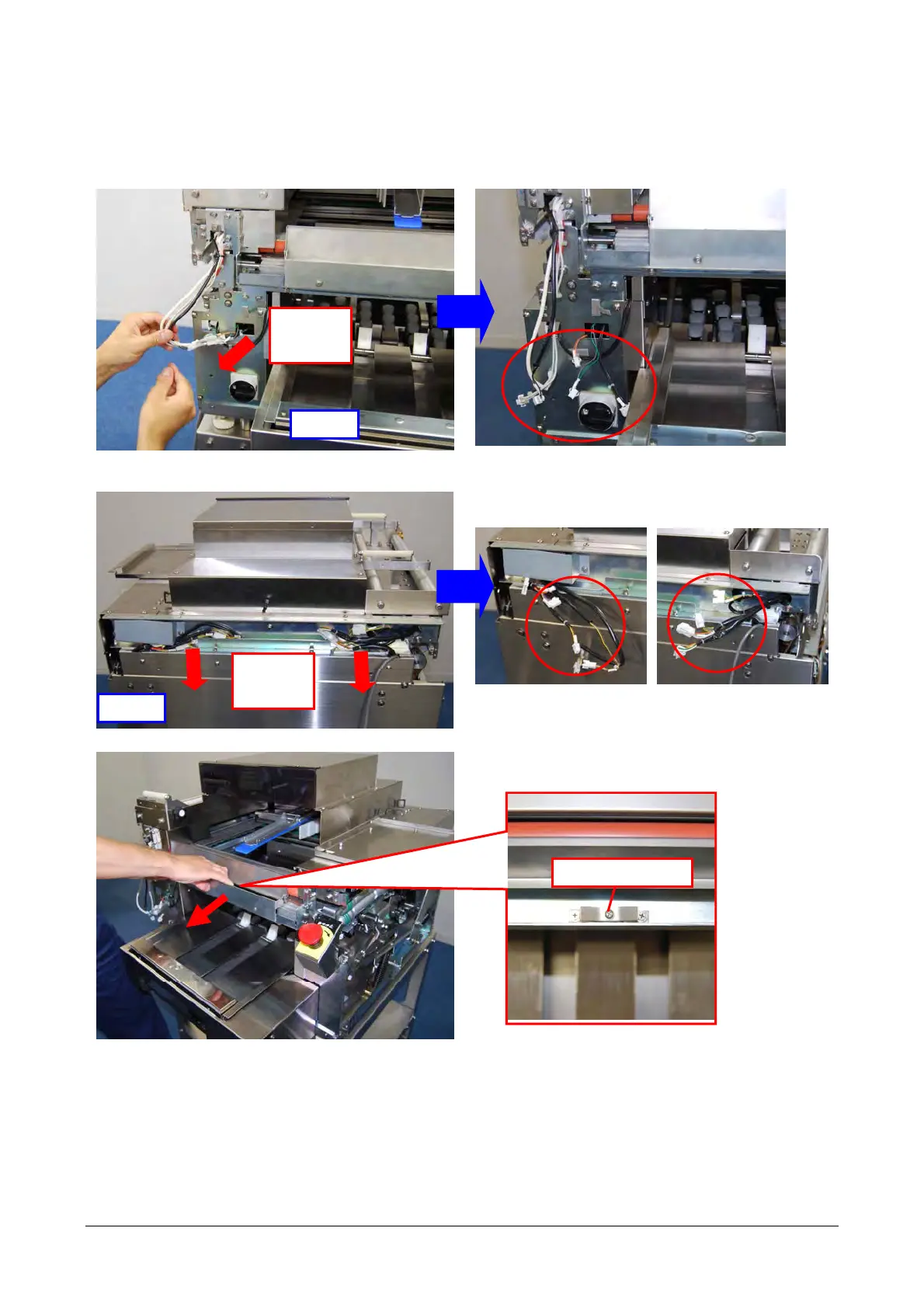

1） Remove the wire harness that connects the wrapping unit to the underneath machine body unit.
First, pull out the wire harness stored in the front left side and disconnect the connectors (3 sets).
2） Pull out the wire harness stored in the back and disconnect the connectors (3 sets on the left and 2
sets on the right).
Left side: Three sets of connectors Right side:
Two sets of connectors
3） Pull up the pin until it clicks and then make the whole wrapping unit slide a bit toward the near side.
Pull out
the wire
harness.
Pull out
the wire
harness.
Front
Back
Pull up the pin.
