computer radio control system
EN
4.
4.
After you have finished setting the inertial unit itself, you can assign
the resulting variables to any function using a standard input dialog
(picture ). To see the variables of the inertial unit, you have to press c)
the „F2 Gsens.” button. The axes GX, GY, GZ correspond to the graph
shown in the picture ). The last parameters are called Shake L/R a)
and represent a motion gesture. If you quickly shift the transmitter to
the left, the G/L switch will be activated for a short time. Similarly, a
single movement to the right activates the G/R switch. You can use
these gestures to trigger voice announcements, flip pages of the
main screen etc.
The parameters "Axis X<<" and "Axis X>>" represent virtual two-
state switches which are activated when the transmitter is tilted to
the left or to the right along the X-axis.
GY
30° Pitch Offset
GX
GZ
100%
0%
Roll (GX)
Sensitivity = 100%
Dead Zone
-90° 0° 90°
-100%
Sensitivity = 200%

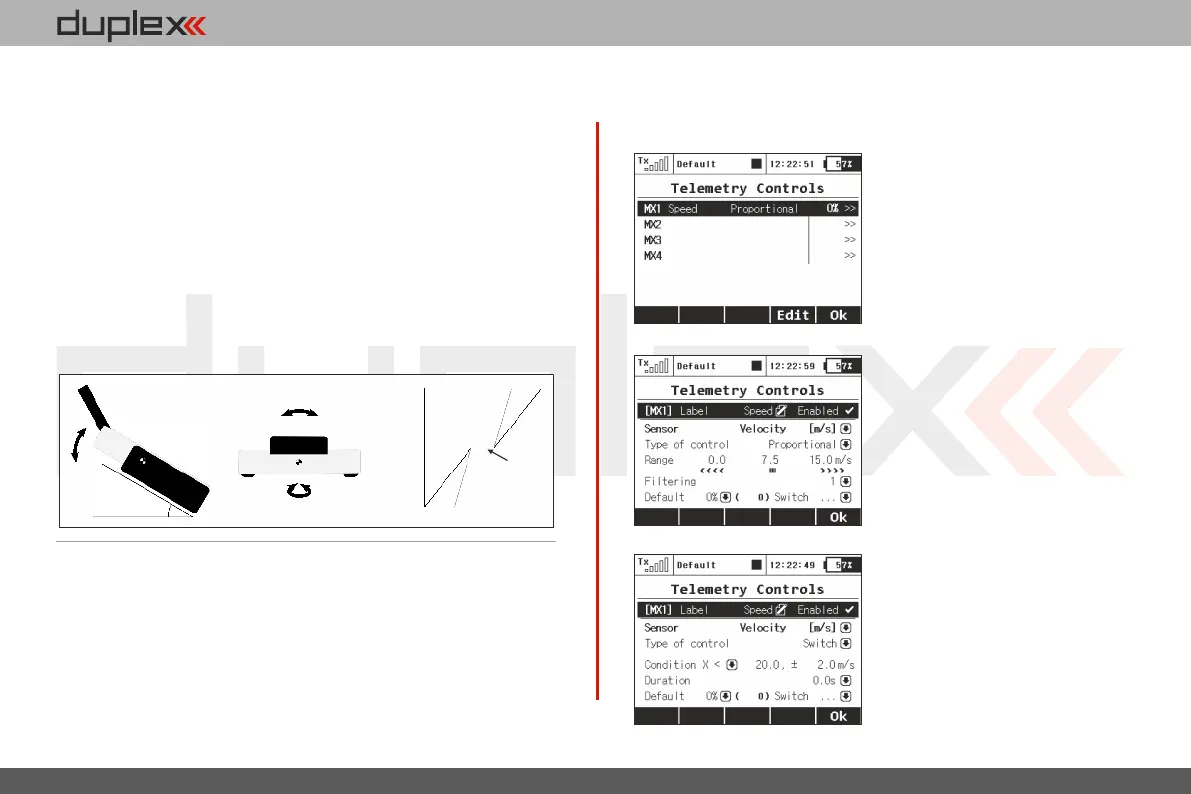

9.3.8 Telemetry Controls (*depends on equipment)
Not only can you display telemetry data, record it to your SD card or
have it voice announced, now it is possible to control specific model
functions using sensor inputs. This way, some tasks that previously
required manual adjustment via visual estimation or alarms can now
be automated.
Up to 8 controls labeled MX1 – MX8 are available, depending on the
type of transmitter and equipment. Telemetry controls offer
functionality in two modes:
The Switch mode enables you •
to create a virtual two-position
switch using the value of one
telemetry parameter. This switch is
always active based on the
fulfillment of defined logical
conditions.
The Proportional Control mode •
enables you to transform a certain
range of sensor values into a fully
proportional control. It can
automatically and smoothly
control any kind of function using
telemetry feedback.
Examples for the possible use of
telemetry controls
If the model speed is less than X •
m / s , f l a p s w i l l b e ra i s e d
automatically.
If the current is larger than X •
amperes, the motor run timer
starts.
If the motor temperature is •
higher than 80 °C, the maximum
throttle will be limited by the mix.
112
