9.1.7 Assignment of functions
Based on your selected configuration a list of all flight functions will
be created with basic transmitter channel assignments.
The menu allows you to rename flight functions, assign a flight
function to any arbitratry transmitter stick, switch, knob or slider and
also allows you to set up additional flight function trims.
You can allow the software to automatically assign your flight
functions by pressing the „F2(Auto)“ button and then press the
„F5(Yes)“ button.
1. Flight function Renaming
By editing each „Function“ item you can rename a flight function
from its original name to any name that you choose.
2. Assignment of a Control Element to a Flight Function
By editing each „Control“ item you can assign any arbitrary stick,
switch, knob or slider to a given flight function. The proportional
channels 1 – 8 are marked P1–P8. The markings Sa-Sj designate
switches with the same designation as on the transmitter front
panel.

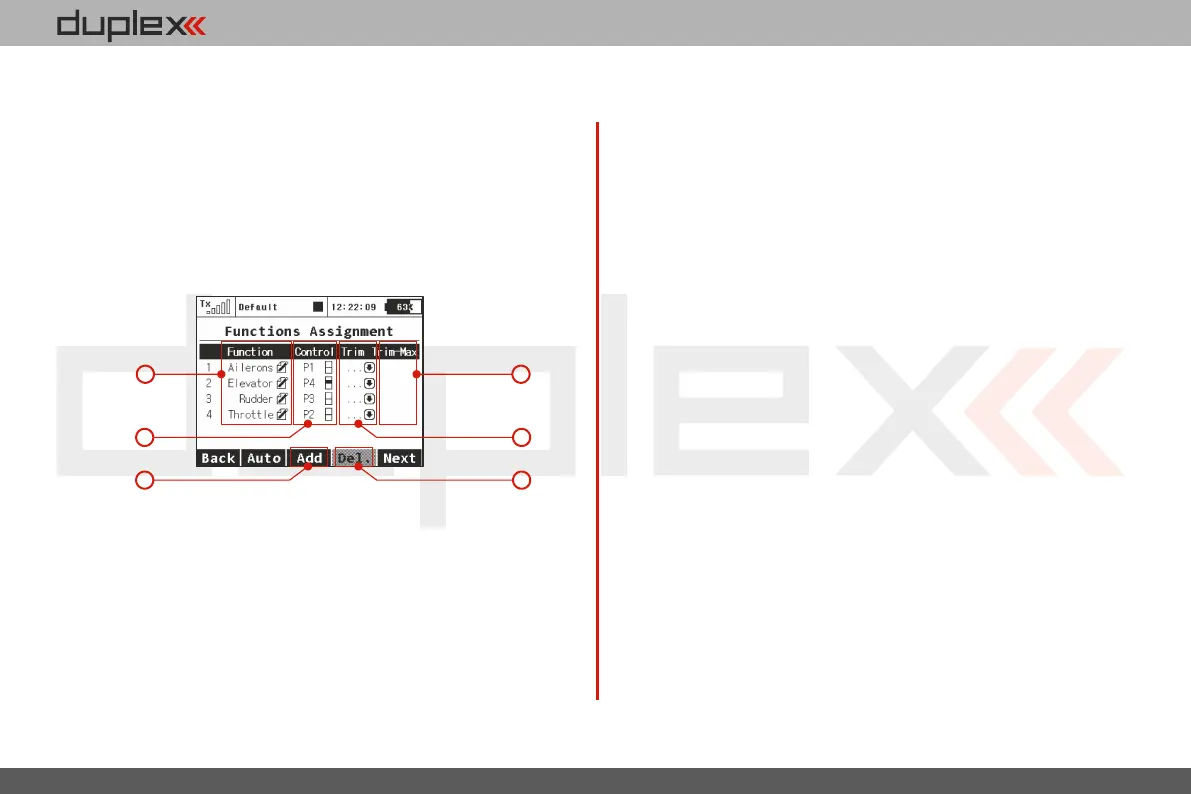

4. 4.
1
2
4
3
5 6
When you select one of these items, you will enter the menu: „Select
control input“, see chapter 9.7. The assignments can easily be
verified by the graphic found beside the control element description
in the „Control “ section, which shows the actual setup of the
assigned control element.
3. Choice of an Additional Trim
The transmitter allows you to also create a trim function for any
arbitrary flight function. By editing one of the „Trim“ items you can
assign an arbitrary control element (stick, switch, knob or slider) to
control the trim of the selected flight function. When you select one
of these items, you will enter the menu: „Select control input“, see
chapter 9.7. The assignments can easily be verified by the graphic
found beside the control element description in the „Trim “ section,
which shows the actual setup of the assigned control element.
The trim functions for the gimbal sticks P1-P4 are automatically
assigned to the quad push-buttons located below the gimbals.
It is not necessary to assign them manually.
4. Range of Additional Trim
If you set up a trim function, you can use the „Trim-Max“ to set the
maximum trim influence on the given flight function. The default
value is 50%. If you set the value to 0%, the trim control element will
not have any effect on the flight function at all. If you set a value of
100%, the trim control element will control the flight function to its
full travel.
5. Adding a Function
With the „F3(New)“ button you can create (add) your own flight
function.
