4.5 Swappable and Assignable Switches
One of the most important features of a JETI transmitter is the switch
function assignment flexibility. The DS-16 transmitter automatically
detects the type of switch and assigns the selected function. The
following switch types are available:
• 2-position short or long switch
• 2-position spring-loaded long switch
• 3-position short or long switch
• 2-position locking switch
• potenciometer
You may either swap the existing switches around or take advantage
of the optional accessories and create your own custom
configuration.
Factory Switch Configuration for the DS-16 Transmitter
Sa - 3 - position short switch
Sb - 2 - position long switch
Sc - 2 - position short switch
Sd - 2 - position long switch
Se - 3 - position long switch
Sf - 2 - position short switch
Sg - 2 - position spring-loaded long switch
Sh - 2 - position short switch
Factory Switch Configuration for the DS-14 Transmitter
Sa - 3 - position short switch
Sb - 3 - position long switch
Sc - 2 - position short switch
Sf - 3 - position short switch
Sg - 2 - position spring-loaded long switch
Sh - 2 - position short switch
2.2.

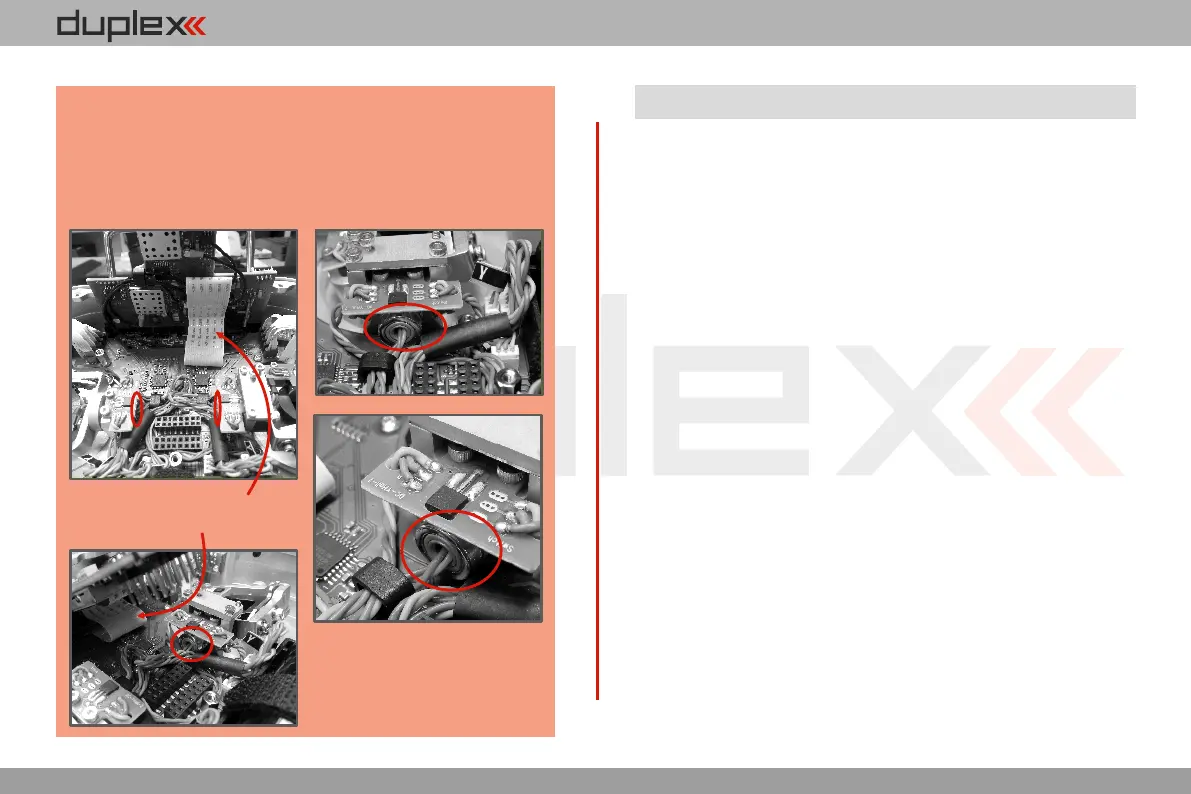

You should keep the wire placement as shown in the
picture. The wires must be placed as far as possible
from the magnetic element Please avoid a).
permanent contact of the wire with magnetic the
element. It could be damaged isolating of the wires.
Warning:
a)
a)
a)
a)
a)
Proper arrangement
of the display flat,
flexible cable.
