computer radio control system
EN
2.2.
AB

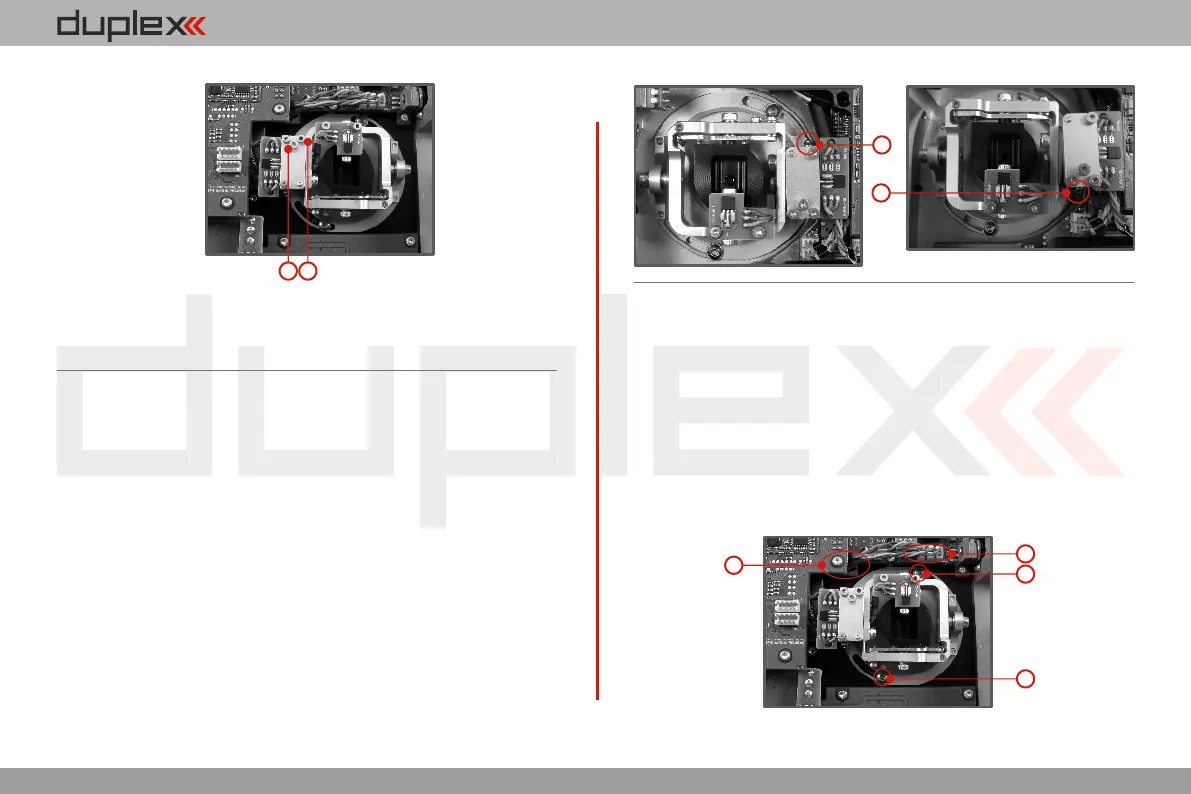

3.3.6 Transmitter Mode Switch
The DC-16 transmitter allows you to switch between Mode 1, 2, 3
and 4 stick configurations with just few simple steps. In order to do
some of these, the stick control assemblies will need to be swapped.
1. Switch off the transmitter and remove the 10 screws that secure
the radio back cover. Next, remove the radio back cover.
Be sure to disconnect the transmitter battery pack
connector.
2. Disconnect the control stick assembly wires from the Tx board.
(3 wires X, Y, S)
3. Remove the stick assembly connecting wires from their holders.
2
3
4
4
X
Y
S
the desired smooth tension.
3. Reconnect transmitter battery pack and reinstall radio back
cover and cover screws.
3.3.5 Throttle stick travel adjustment
The throttle stick travel is adjustable to suit your flying style.
1. Switch off the transmitter and remove the 8 screws that secure the
radio back cover. Next, remove the radio back cover. Be sure to
disconnect the transmitter battery pack connector.
2. Use indicated machine adjustment screws to limit the throttle
stick travel. By turning the screw clockwise, you will shorten the
throttle stick travel.
3. Reconnect transmitter battery pack and reinstall radio back cover
and cover screws.
After making a limit the throttle stick travel you must re-calibrate the
transmitter stick in the software menu, see section 9.6.3
–Calibration of Proportional Controls.
2
2
19
