3.8 Handling
The DC-16 transmitter can be comfortably carried by holding it for
the antenna cover/handle as shown on the picture.
Before each flying session, and especially with a new
model, it’s important to perform a range check.
If you are operating a model with a DC-16
transmitter do not shield and avoid contact of the
transmitter antenna with your body.
This might increase likelihood of range problem.
Warning:
2.2.

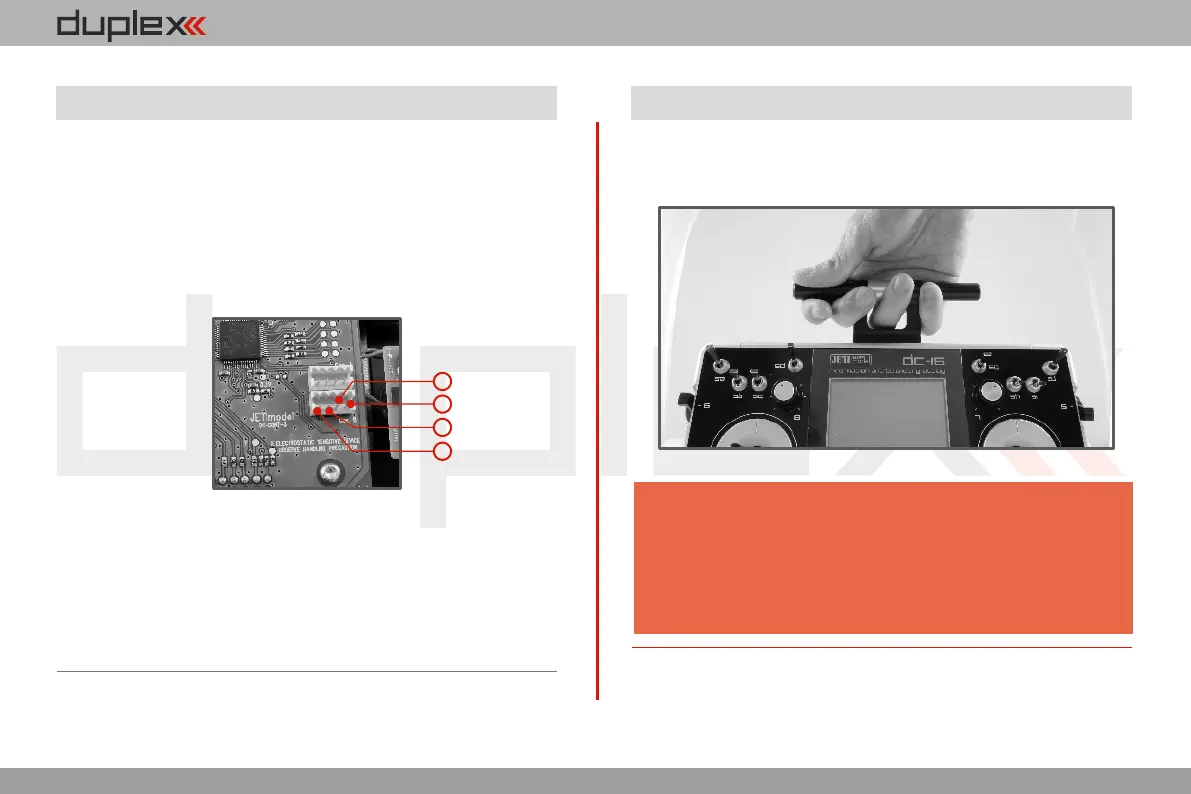

3.7 PPM Input/Output Connector
The PPM output is accessible via connector labeled „B“. This
connector features the non-stabilized battery voltage output in the
range of 3.2V - 4.2V (max. 1A) which can be used as power supply for
the connected HF module as well as for the PPM signal output. The
transmitter output functions are in the form of a standard PPM
signal.
3
1. PPM input (3V logics)
2. Positive (+) pin
3. Negative (-) pin
4. PPM signal output (3V logics, configurable in „System
->Configuration”)
4
2
1
