iSTAR Edge G2 Controller Installation and Configuration Guide 44
Chapter 6 - Connections
Connections
iSTAR Edge G2 supports up to 4 readers, 8 I8 boards, and 8 R8 boards. The readers can be any combination of RM readers
and direct connect Wiegand signaling devices. There are two Wiegand connectors and four RM ports. The RM readers can use
any combination of Ports 1-4, including all readers on one port. The following figures illustrate some typical connection
scenarios.
Four Wiegand Readers

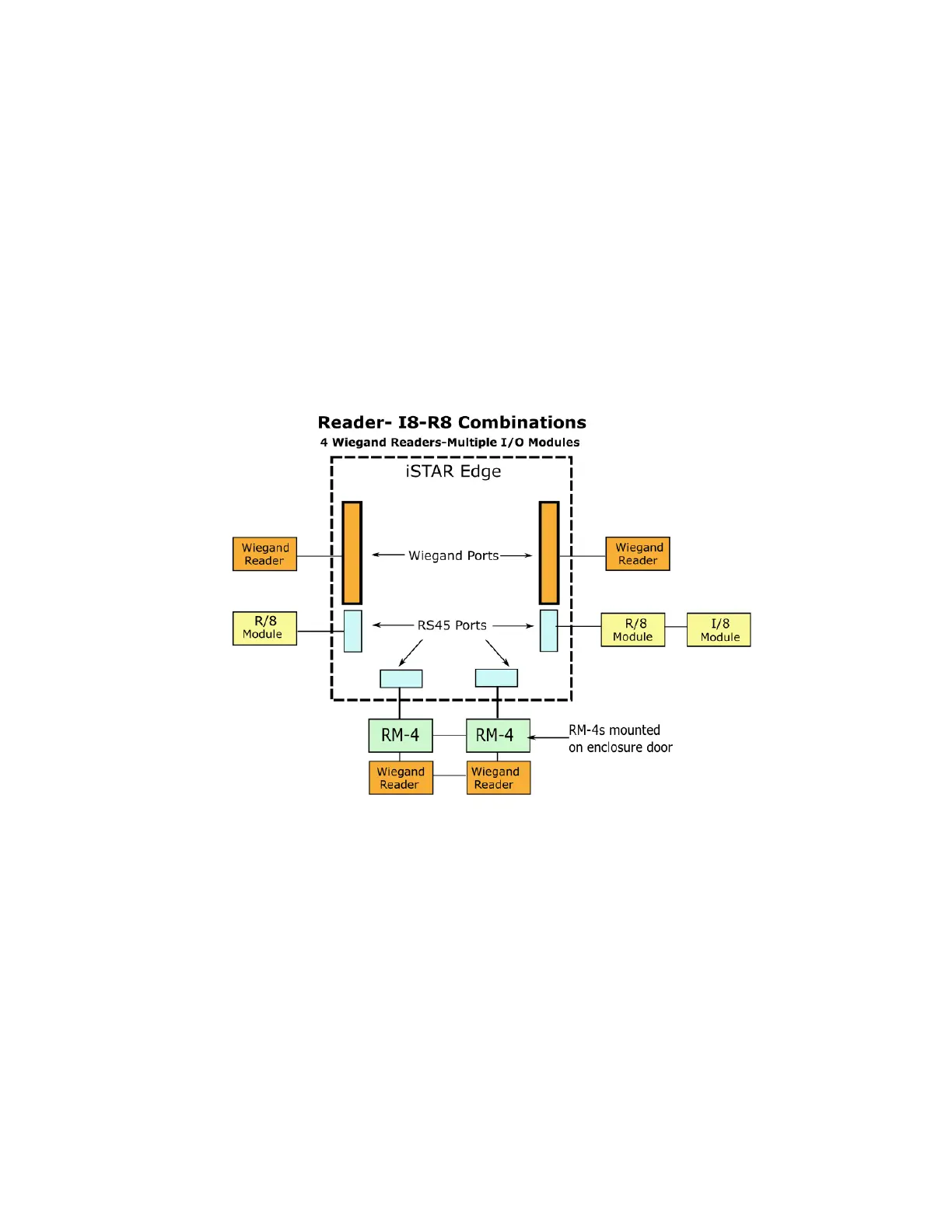

Figure 7 on Page 44 displays 4 Wiegand signaling devices with multiple I/O modules.
Figure 7:Wiegand devices with multiple I/O modules
