iSTAR Edge G2 Controller Installation and Configuration Guide 50
Chapter 6 - Connections
■ Short.
■ Alert (500 ohms)
■ Normal (1K)
■ Alert (2K)
■ Open (>30K)
■ Line Fault (Any unexpected value. This is usually due to incorrect value resistors or faulty resistors).
NO/NC Double EOL, 10K

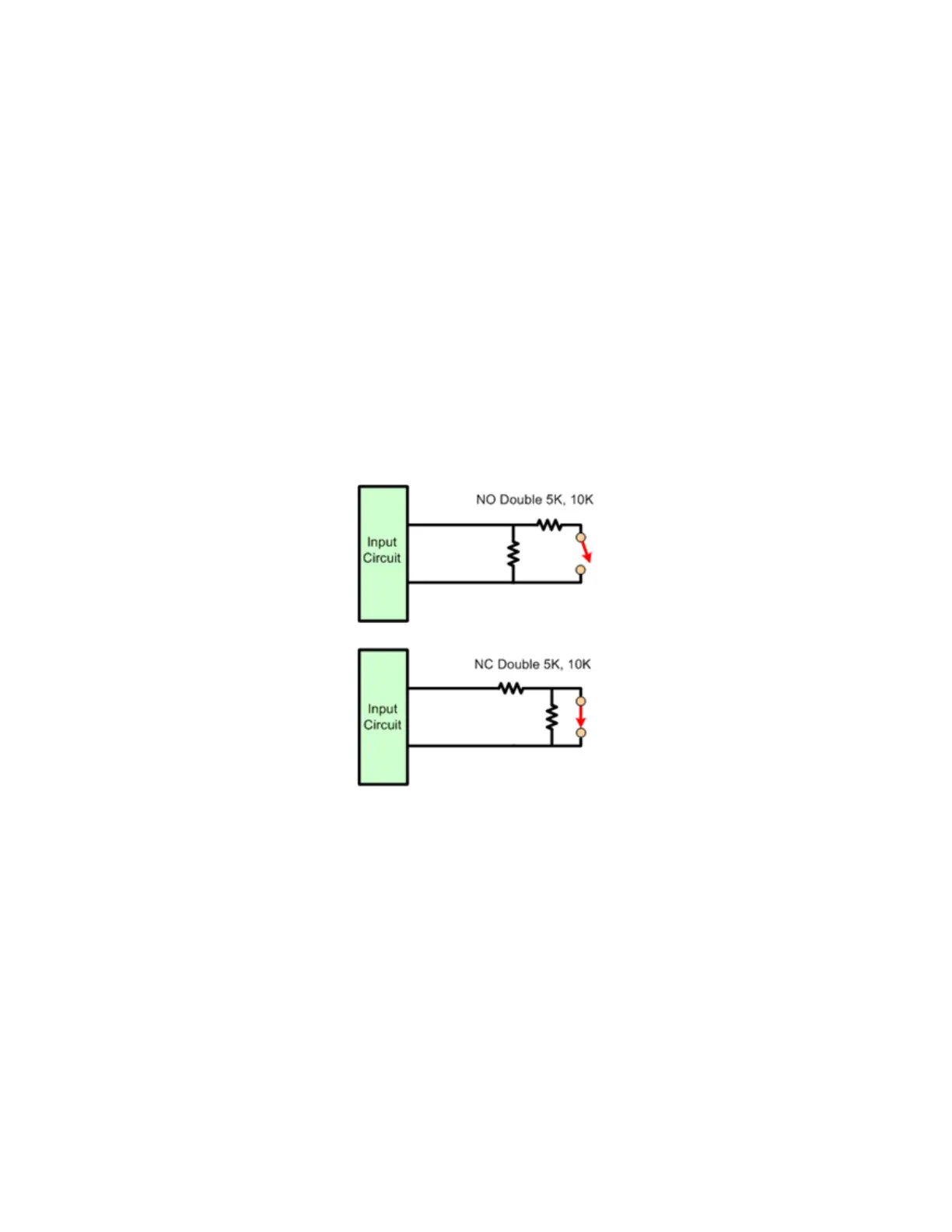

Figure 12shows a method similar to the traditional Software House method of supervision. The wiring for NO and NC is
different.
• For 5K resistors - 5K = Normal. NO Alert = 2500 ohms, NC Alert = 10K
• For 10K resistors - 10K = Normal. NO Alert = 5K, NC Alert = 20K
Figure 12:NO/NC Double EOL 10K Supervision
For Double EOL, Single EOL, and non-supervised setups, select either NO or NC.
