iSTAR Edge G2 Controller Installation and Configuration Guide 55
Chapter 6 - Connections

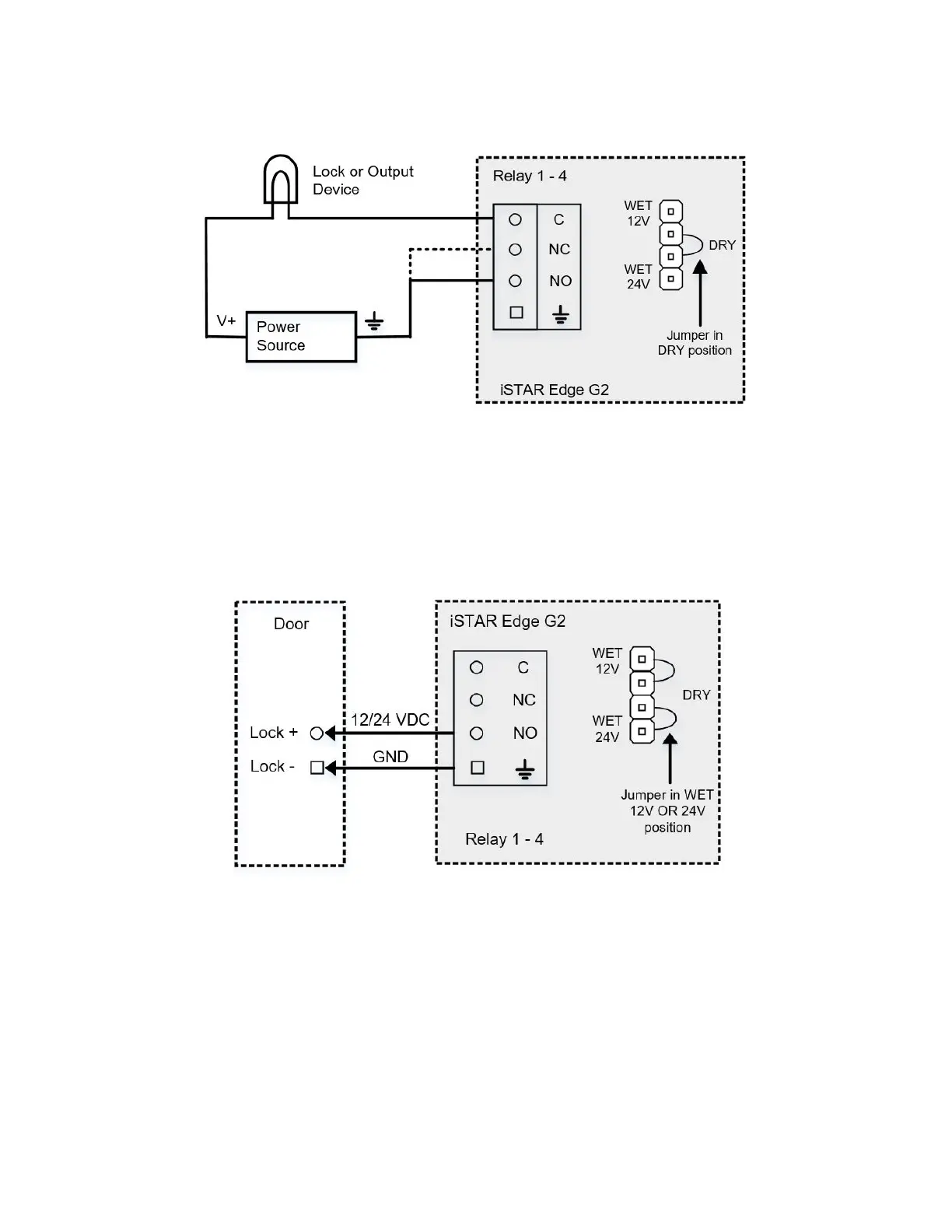

Figure 18:Dry Relay Wiring
Wet Relay Wiring
Figure 19 shows WET wiring for a normal NO latch. The iSTAR Edge G2 will supply wither 12 VDC or 24 VDC depending on
the input supply. Current is limited to 0.75 A. Figure 19 shows that GND is used for common, not the C pin, and that the jumper
is in the WET position.
Figure 19:WET Relay Wiring
Wet Wiring for a MagLock
Figure 20 shows WET wiring for a MagLock. Mag Locks are normally energized so the GND and NC pins are used in this case.
Figure 20 shows the jumper in the WET position.
