iSTAR Edge G2 Controller Installation and Configuration Guide 57
Chapter 6 - Connections
Wiegand Readers
Figure 21 shows direct Wiegand signaling read head connections.

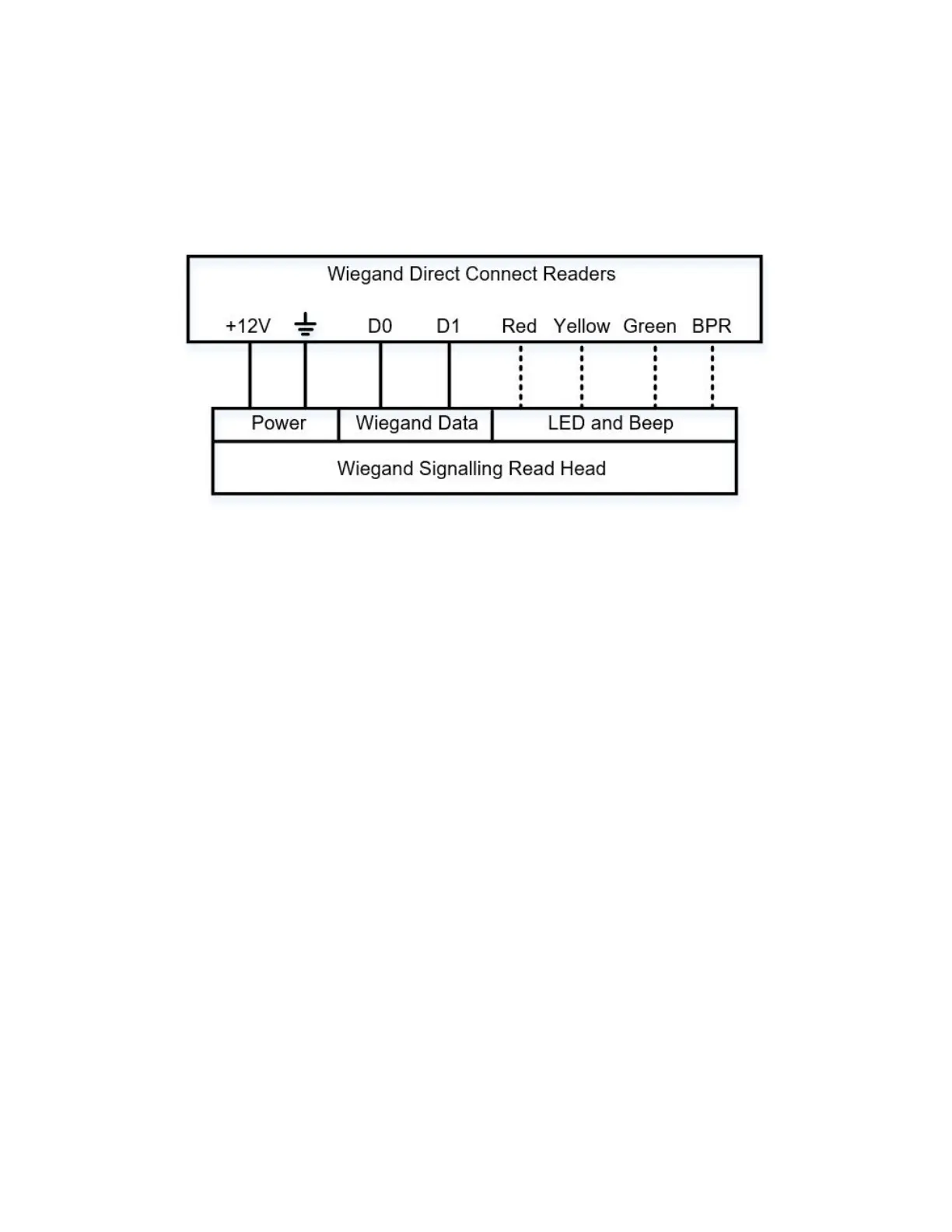

Figure 21:Wiegand Reader Connections
