iSTAR Edge G2 Controller Installation and Configuration Guide 53
Chapter 6 - Connections
AUX Outputs
The AUX outputs can supply 350 mA for motion sensor or PIR-type devices. The voltage is 12 VDC.

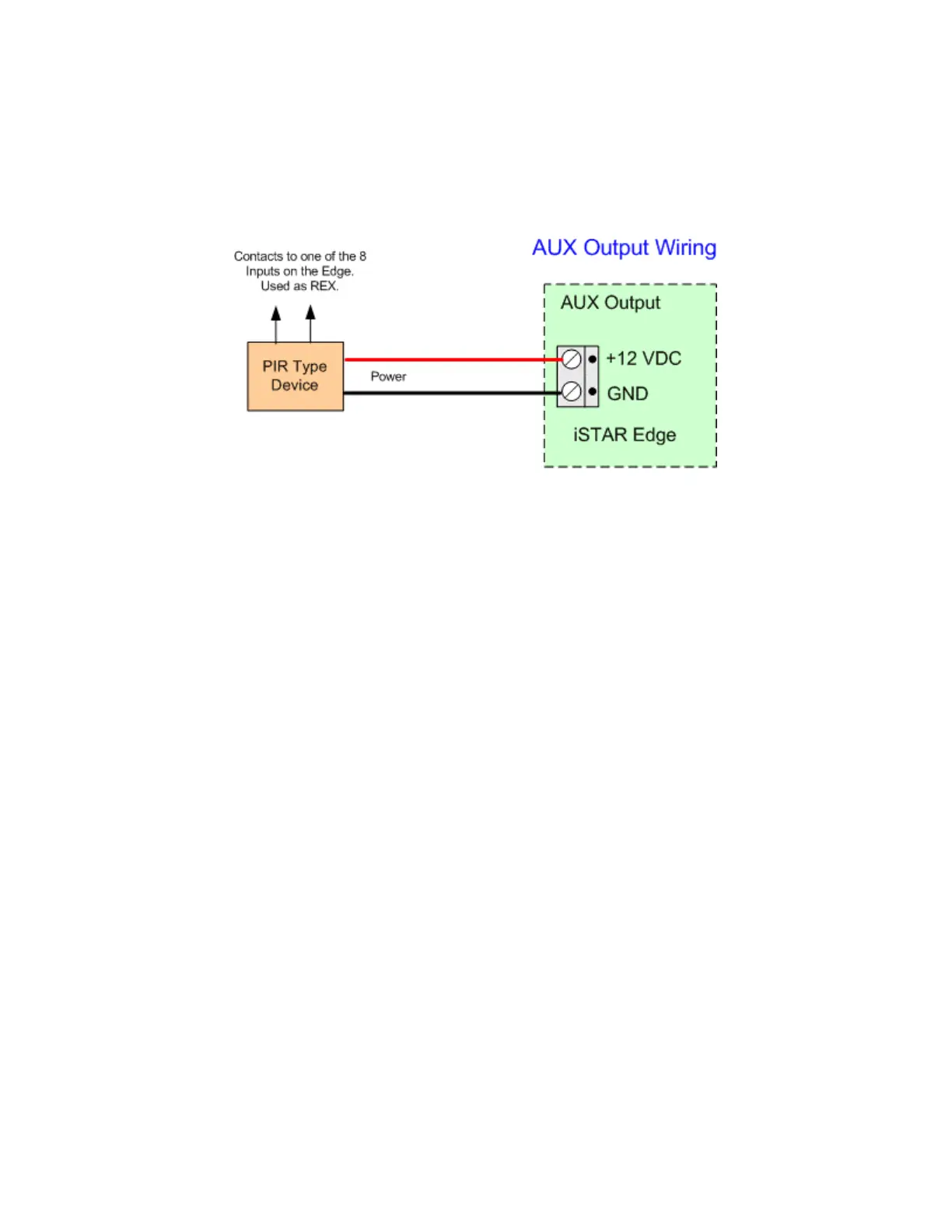

Figure 16:AUX Output Wiring
Wire the switch contacts of the PIR to one of the iSTAR Edge G2 inputs, using the proper resistor supervision.
