iSTAR Edge G2 Controller Installation and Configuration Guide 49
Chapter 6 - Connections
Mode Comment
NO Double EOL 1K Parallel and Serial Resistors
• Normal = 1K
Alert = 0.5K
NC Double EOL 5K Serial and Parallel Resistors
• Normal = 5K
Alert = 10K
NO Double EOL 5K Parallel and Serial Resistors
• Normal = 5K
Alert = 2.5K
NC Double EOL 10K Serial and Parallel Resistors
• Normal = 10K
Alert = 20K
NO Double EOL 10K Parallel and Serial Resistors
• Normal = 10K
Alert = 5K
NO/NC Dual EOL 1K Wire with Parallel/Serial for NO and Serial/Parallel for NC.
• Normal = 1K
• NO Alert = 0.5K
• NC Alert = 2K
NOTE: This the default value, and the traditional Software House method of supervision.
NO/NC Double EOL 1K

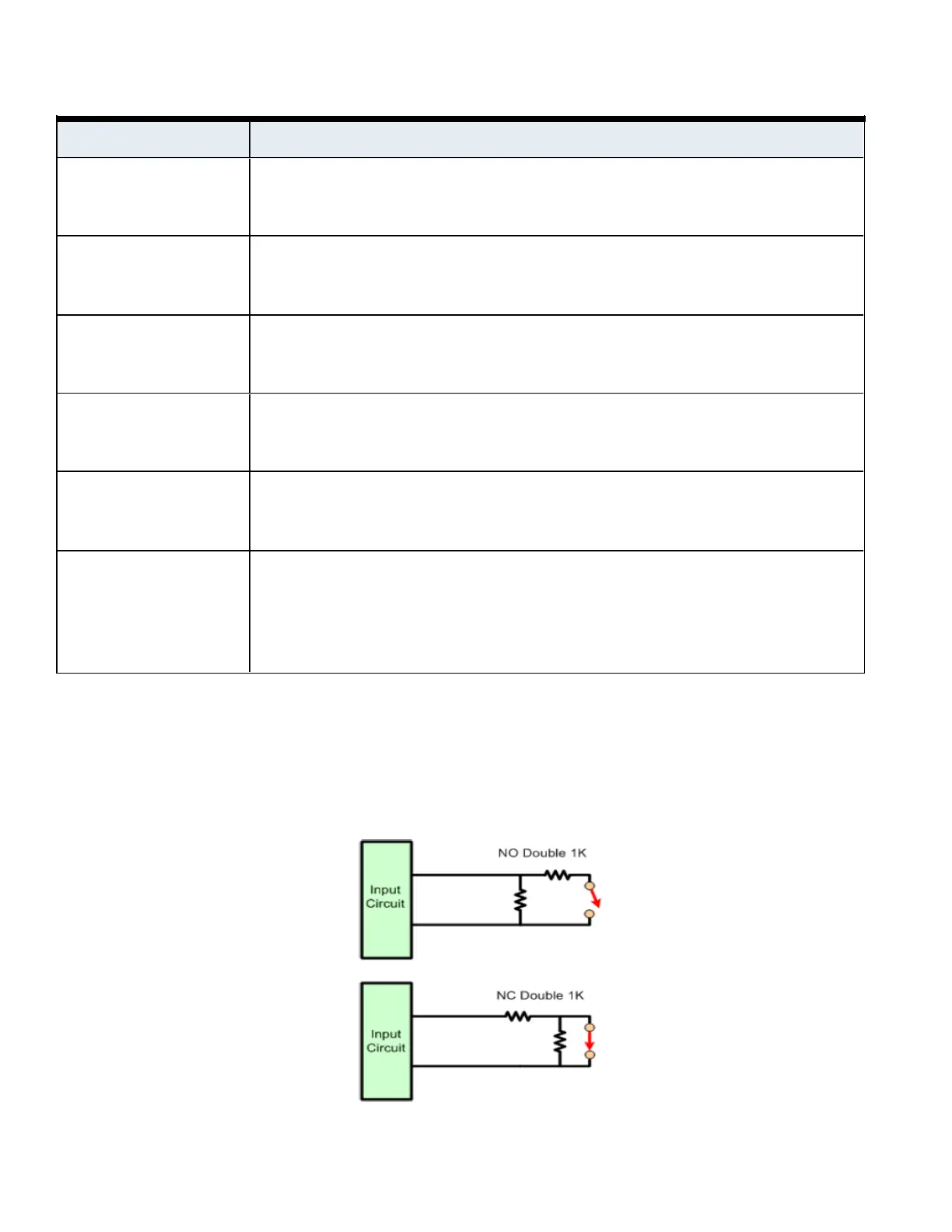

Figure 11shows the traditional Software House method of supervision where 1K Ω is considered Secure and 500 Ω or 2K Ω are
considered Alert. Wiring is different for NO and NC.
Figure 11:NO/NC Double EOL 1K Supervision
This method will report:
