Johnson Controls tyco iSTAR Edge G2 - Double EOL 1 K, 5 K, 10 K; Single EOL 5 K, 10 K

iSTAR Edge G2 Controller Installation and Configuration Guide 51
Chapter 6 - Connections
Double EOL 1K, 5K, 10K

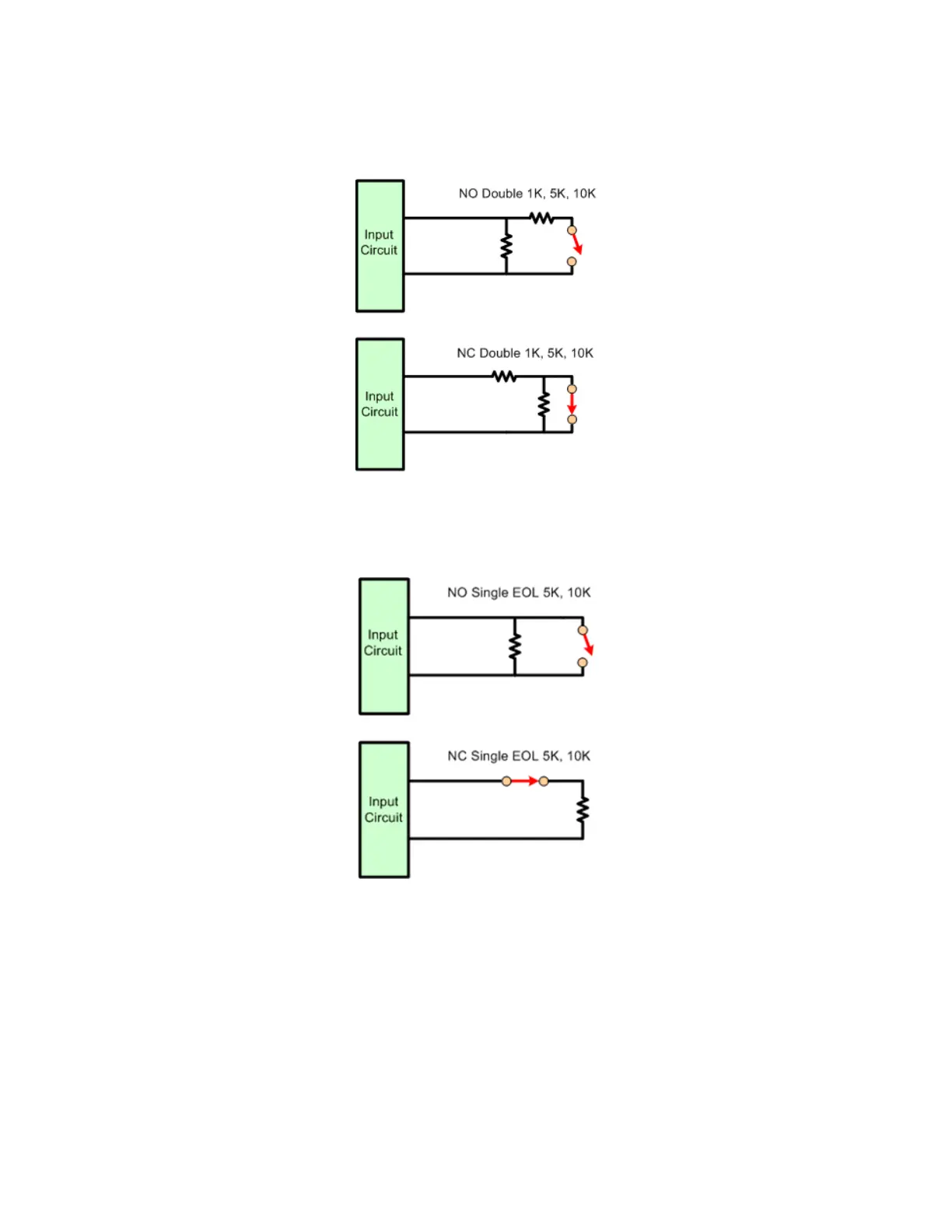

Figure 13:Double EOL 1K, 5K, 10K - NO and NC
Single EOL 5K, 10K
Figure 14:Single EOL 5K, 10K - NO and NC
