iSTAR Edge G2 Controller Installation and Configuration Guide 59
Chapter 6 - Connections
Special Purpose Inputs
Special purpose inputs are described in Table 19.
Table 19:Special Purpose Inputs
CCURE 9000 CCURE 800/8000 Description
Tamper Tamper Activates when the iSTAR Edge cabinet is opened.
Power Failure AC power failinput Indicates that the UPS (Un-interruptible Power Supply) or apS, had an AC power failure
and is now supplying battery power to the iSTAR Edge.
Battery Low Low battery input The UPS or apS battery has reached a yellow warning level. Most UPS units have about 10
to 20 minutes of run time left when this condition occurs. Software House recommends that
you shut down the unit being powered by the low battery. Do not confuse this input with the
Onboard Battery Low input.
AC Fail - Low Battery
Figure 1 shows AC Fail and Low Battery wiring. They are NC connections, and share a common ground pin.

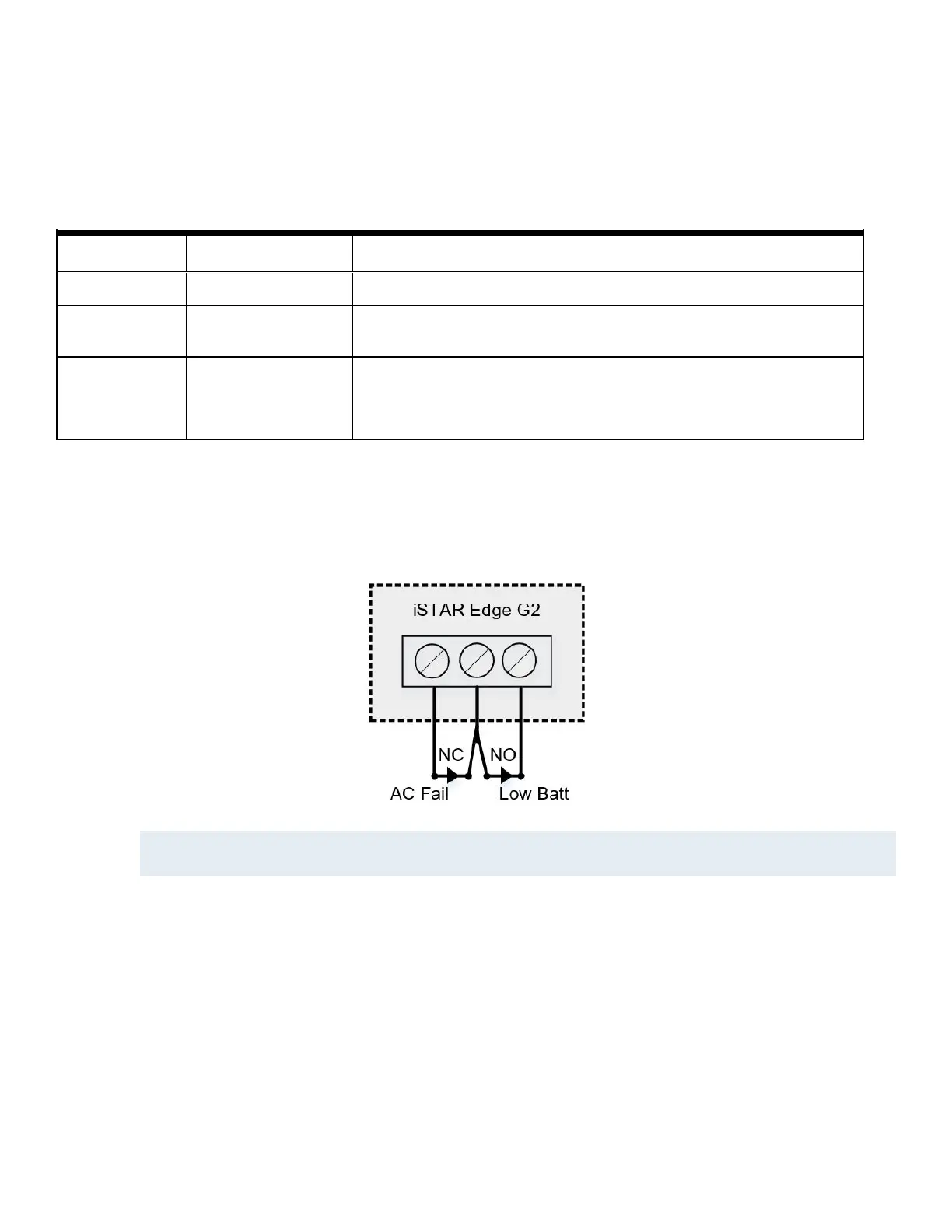

Figure 23:AC Fail and Low Battery Wiring
NOTE
The AC power fail and Low Battery inputs must be enabled and connected to report for compliance with UL requirements.
Shielded cable must be used for AC Fail and Low Battery input connections.
Tamper
Tamper wiring is shown in Figure 24 on Page 60and is NC. It is usually connected to the Tamper switch on the enclosure. If
there is no standard enclosure, be sure that there is a jumper across the two pins.
