iSTAR Edge G2 Controller Installation and Configuration Guide 60
Chapter 6 - Connections

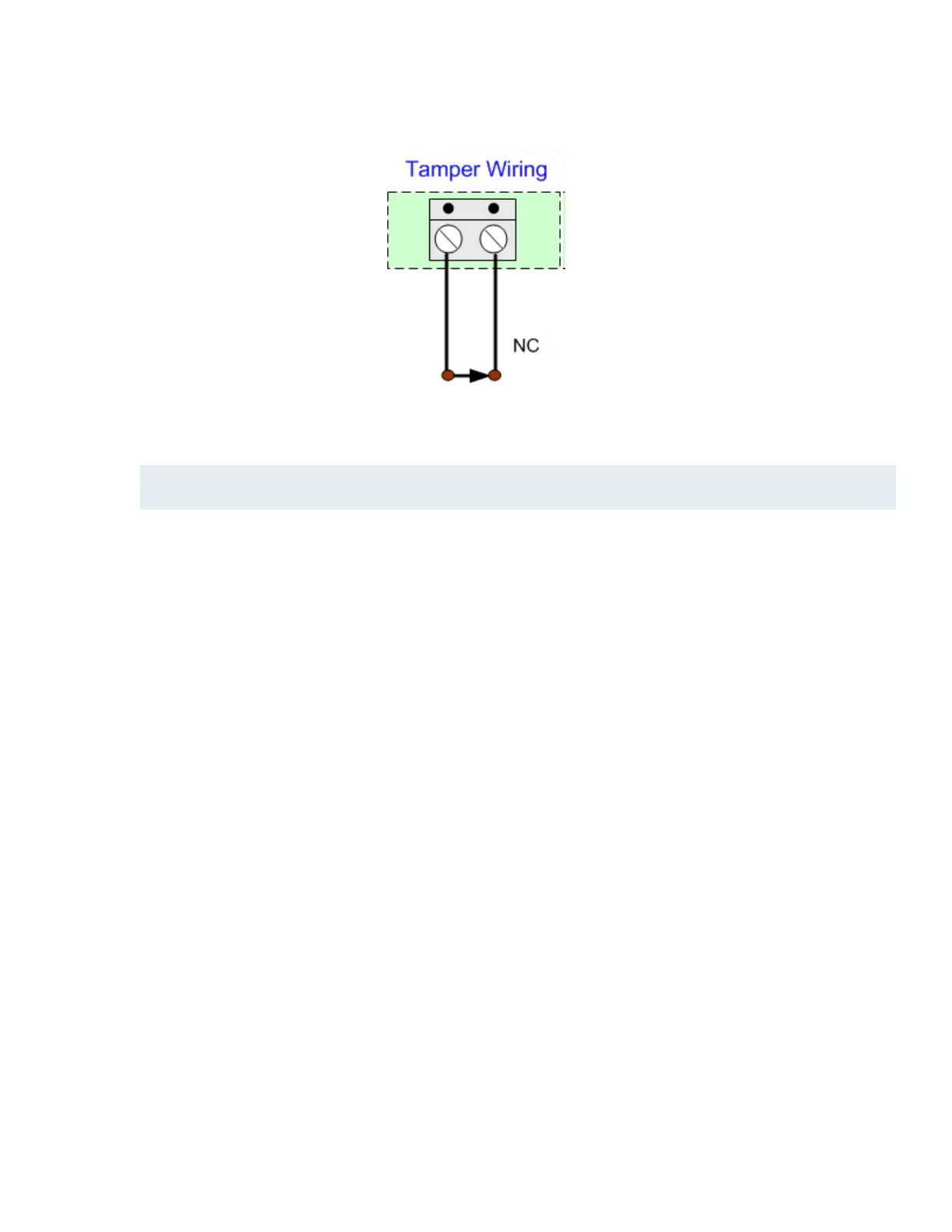

Figure 24:Tamper Wiring
The tamper switch controls many LEDs, to preserve power and also not blind users with the super bright LED when the door is
open. When the door is closed the two power LEDs are the only ones on. The LCD is also off when the door is closed.
NOTE
The tamper input must be enabled and connected to report for compliance with UL requirements.
