[III] Setting the mode to move the starting point of EBL1 (EBL1 Floating)
When this function is set to L/L FIX and the starting point of an EBL is moved to a position, the
starting point can be fixed at the latitude and longitude of that position. The function is effective when
the bearing from a certain point is repeatedly measured.
When the function is set to SCREEN FIX , the starting point of an EBL is fixed on the radar display.
The starting point is always indicated at the same position on the radar display even when the own ship
has moved.
Procedure 1 Press [RADAR MENU] key.
Press [3] key
Press [1] key.

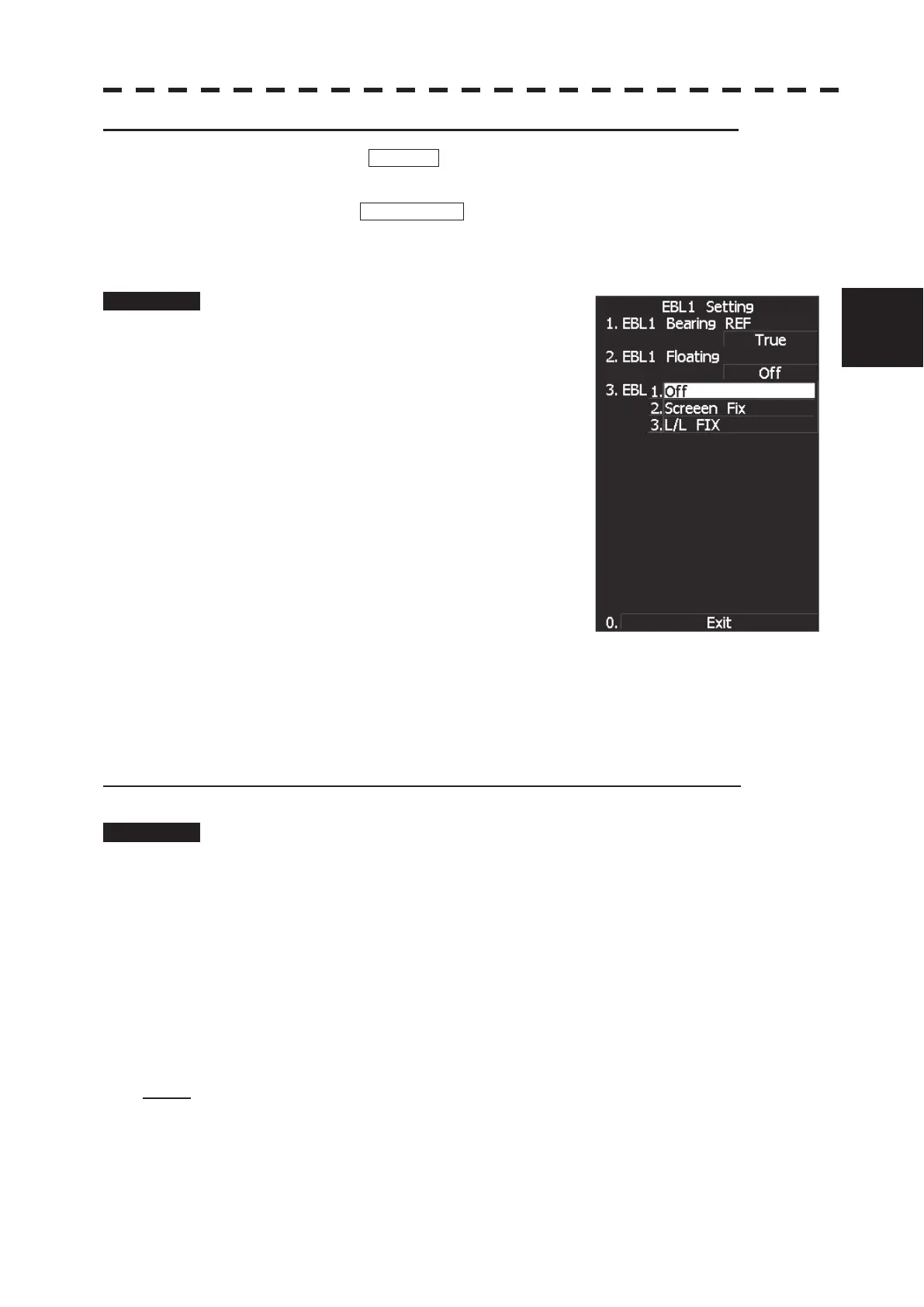

The EBL1 Setting Menu will appear.
2 Press [2] key.
The EBL1 Floating Setting Menu will appear.
3 Select the mode number to be set,
pressing the numeric keys [1] to [3].
The selected mode will be set.
OFF: Floating mode off
SCREEN FIX: The starting point of EBL1 is
fixed on the radar display.
L/L FIX: The starting point of EBL1 is fixed at specific latitude and longitude.
* Software button Õ» located at the top right corner of the radar display described in Section 2.3.3 is also
available to switch the Screen Fix and L/L Fix of EBL1.
[IV] Setting the mode to move the starting point of EBL2 (EBL2 Floating)
Procedure 1 Press [RADAR MENU] key.
Press [3] key.
Press [2] key.
The EBL2 Setting Menu will appear.
Subsequently, set the EBL2’s starting point move mode performing the same operation as
explained in [III].
* Software button Õ¼ located at the top right corner of the radar display described in Section 2.3.3 is also
available to switch the Screen Fix and L/L Fix of EBL2.
Notes: x The course data and the own ship’s latitude and longitude data are required for activating the L/L Fix
mode.
x While the L/L Fix mode is active, the starting point of an EBL will be returned to the center if it
disappears from the radar display when moved.
