3.6 DISPLAY OWN SHIP'S TRACK (OWN TRACK)

3ņ78

y y

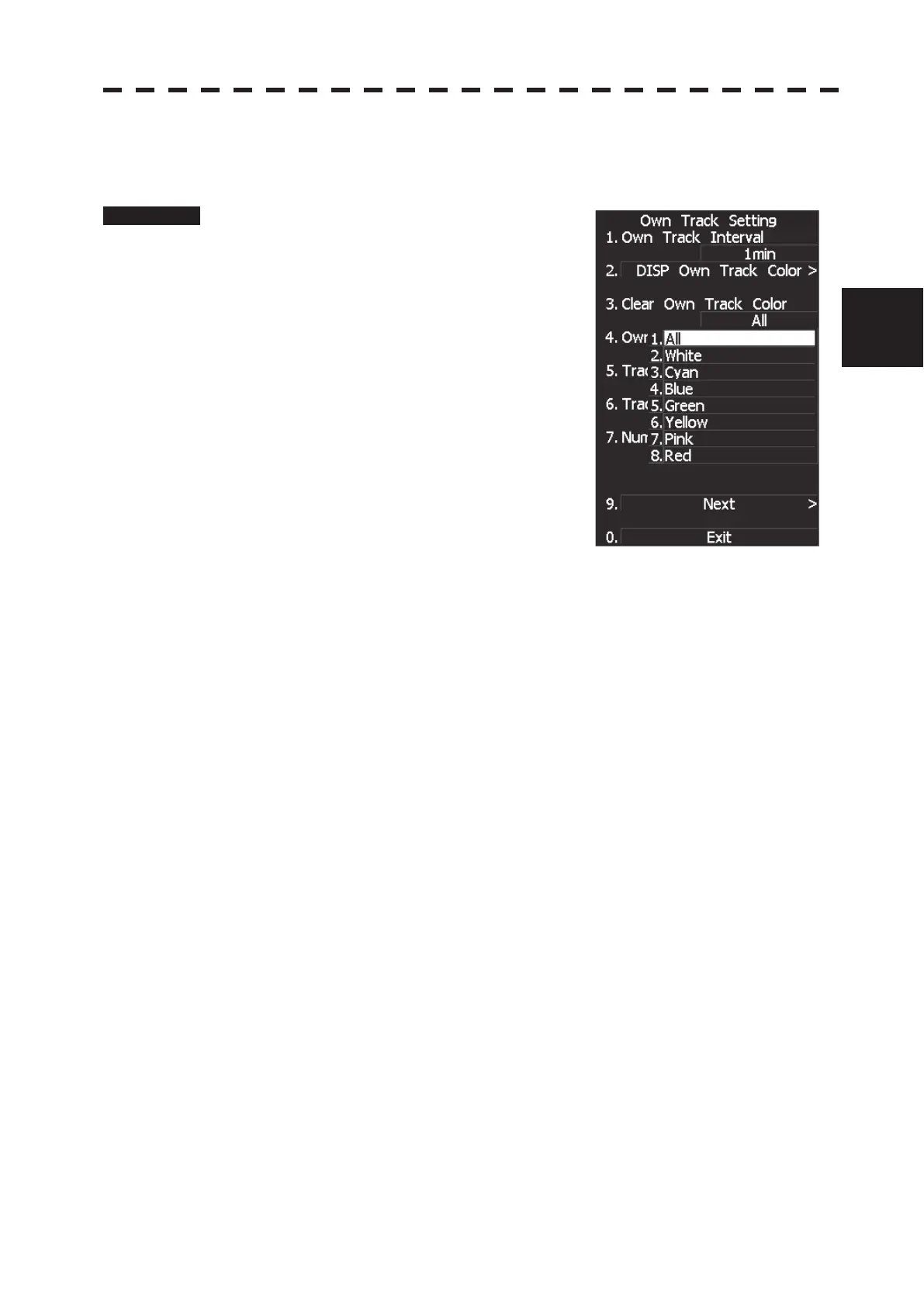

3.6.4 Clear Own Ship’s Track Data (Clear Own Track)

This function clears own ship’s track data from memory.

Procedure 1 Press [RADAR MENU] key.

Press [9] key.

Press [1] key.

The Own Track Setting Menu will appear.

2 Press [3] key.

The Own Track color list will appear.

3 Select the track color to be cleared,

pressing the numeric key.

The tracks with selected color will be cleared.
