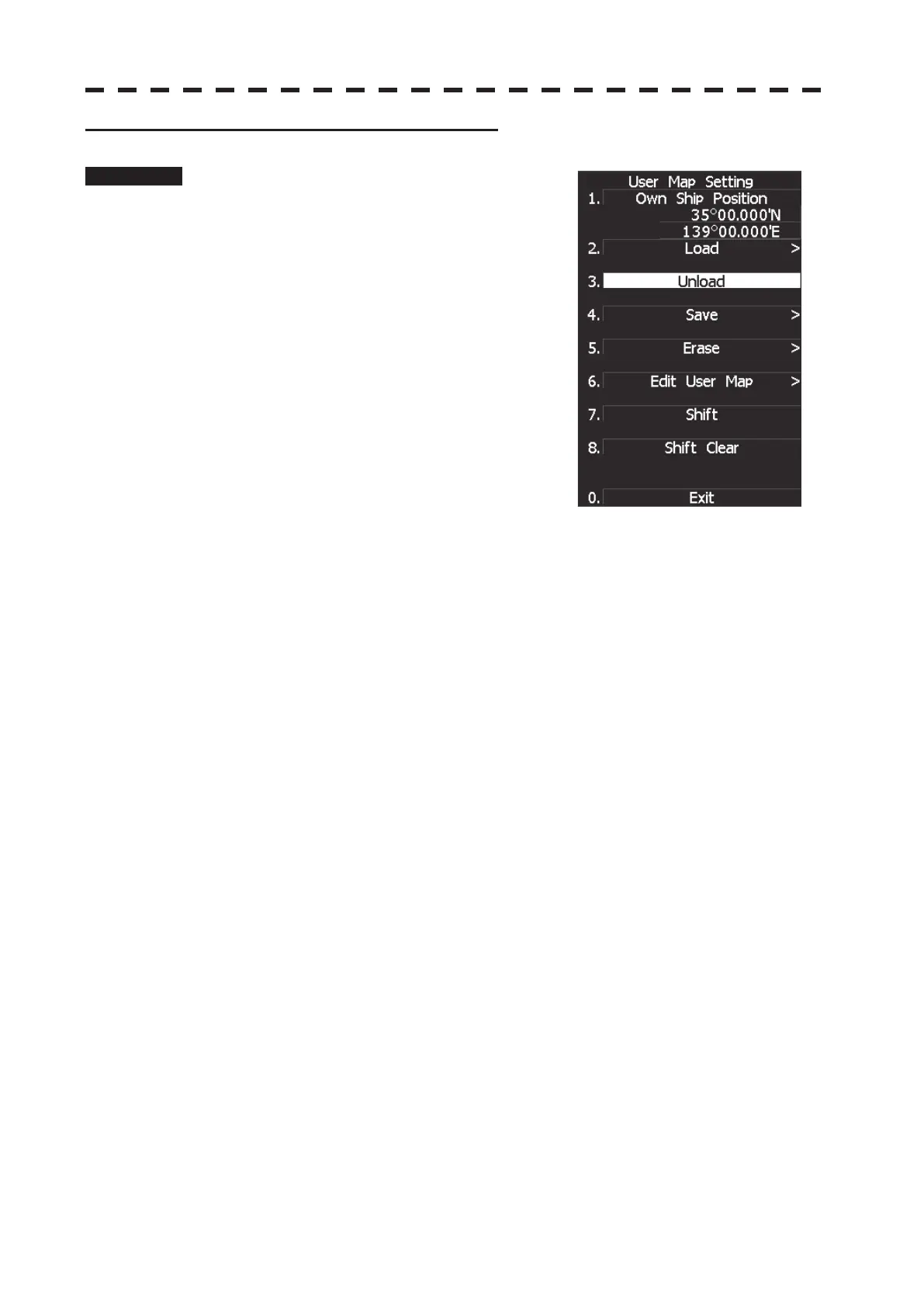

[III] Initializing Navigation Information (Unload)

Procedure 1 Press [3] key while the User Map

Setting Menu is open.

Display the window to select whether or not the

information is to be initialized.

2 Press [1] key.

The navigation information is initialized.

This function can be executed for files that have been

read and new navigation information currently being

entered.
