Table 8-4 System alarm warning list 3: External device communication
Message
Class
Description ALR No.
2AXG(Data)
Alarm
2AXG: Communication data error. 911
2AXG(Time out)
Alarm
2AXG: No communication. 342
2AXW(Data)
Alarm
2AXW: Communication data error. 910
2AXW(Time out)
Alarm
2AXW: No communication. 341
AIS(Alarm ***)
Alarm
AIS alarm and the alarm number.
AIS(Data)
Alarm
AIS: Communication data error or checksum error. 918
AIS(Time Out)
Alarm
AIS: No communication. 116
Autopilot(Data)
Alarm
Autopilot: Communication data error or checksum error. 930
Autopilot(Time Out)
Alarm
Autopilot: No communication. 101
COM Port1(Open)
Alarm
COM1: Port error. 920
COM Port2(Open)
Alarm
COM2: Port error. 921
COM Port3(Open)
Alarm
COM3: Port error. 922
COM Port4(Open)
Alarm
COM4: Port error. 923
Current(Data)
Alarm
Tidal current: Communication data error or checksum error. 927
Current(Time Out)
Alarm
Tidal current: No communication. 119
Depth(Data)
Alarm
Water depth: Communication data error or checksum error. 924
Depth(Time Out)
Alarm
Water depth: No communication. 115
GPS(Date)
Alarm
Valid date data from GPS not receive. 112
GPS(Datum)
Alarm
Valid geodetic system data from GPS not receive. 122
GPS(Position)
Alarm
Valid latitude and longitude data from GPS not receive. 102
GPS(Speed)
Alarm
Valid speed data from GPS not receive. 343
Heading(Time Out)
Alarm
Heading data: No communication. 113
L/L(Out of Bounds)
Alarm
L/L Own ship's latitude is over 85°N or 85°S. 123
Log(Data)
Alarm
Log: Communication data error (error bit detected). 111
NSK(Time Out)
Alarm
NSK unit: No communication. 324
Rate of Turn(Data)
Alarm
Rate of Turn: Communication data error or checksum error. 928
Rate of Turn(Time Out)
Alarm
Rate of Turn: No communication. 120
Rudder(Data)
Alarm
Rudder Sensor Angle: Communication data error or checksum error. 929
Rudder(Time Out)
Alarm
Rudder Sensor Angle: No communication. 121
Temperature(Data)
Alarm
Water temperature: Communication data error or checksum error. 925
Temperature(Time Out)
Alarm
Water temperature: No communicaton. 117
Wind(Data)
Alarm
Wind direction/velocity: Communication data error or checksum error. 926
Wind(Time Out)
Alarm
Wind direction/velocity: No communication. 118
ALR No: Unique alarm number in ALR sentence and ACK sentence.
Reference: Alarm message is displayed in the lower right of the display.

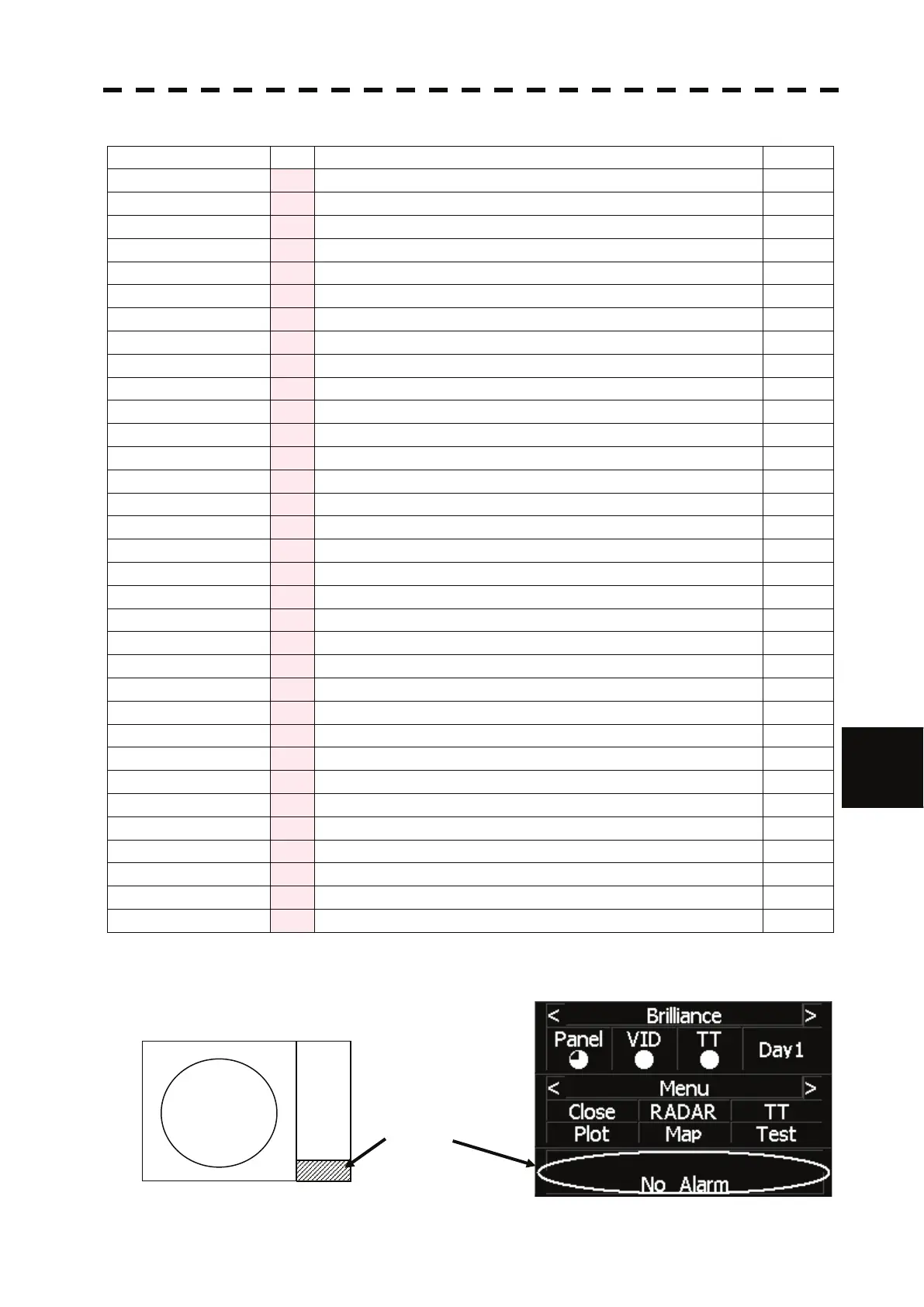

Position of alarm message
