8.4 REPLACEMENT OF MAJOR PARTS
ņ34
8
yyyy
yyyy
How to replace a 6kW NKE-2062 antenna magnetron
Make sure that all radars are turned off before replacing the magnetron (if there are multiple radar devices, turn
them all off). It is also recommended that the breaker be turned off for safety.

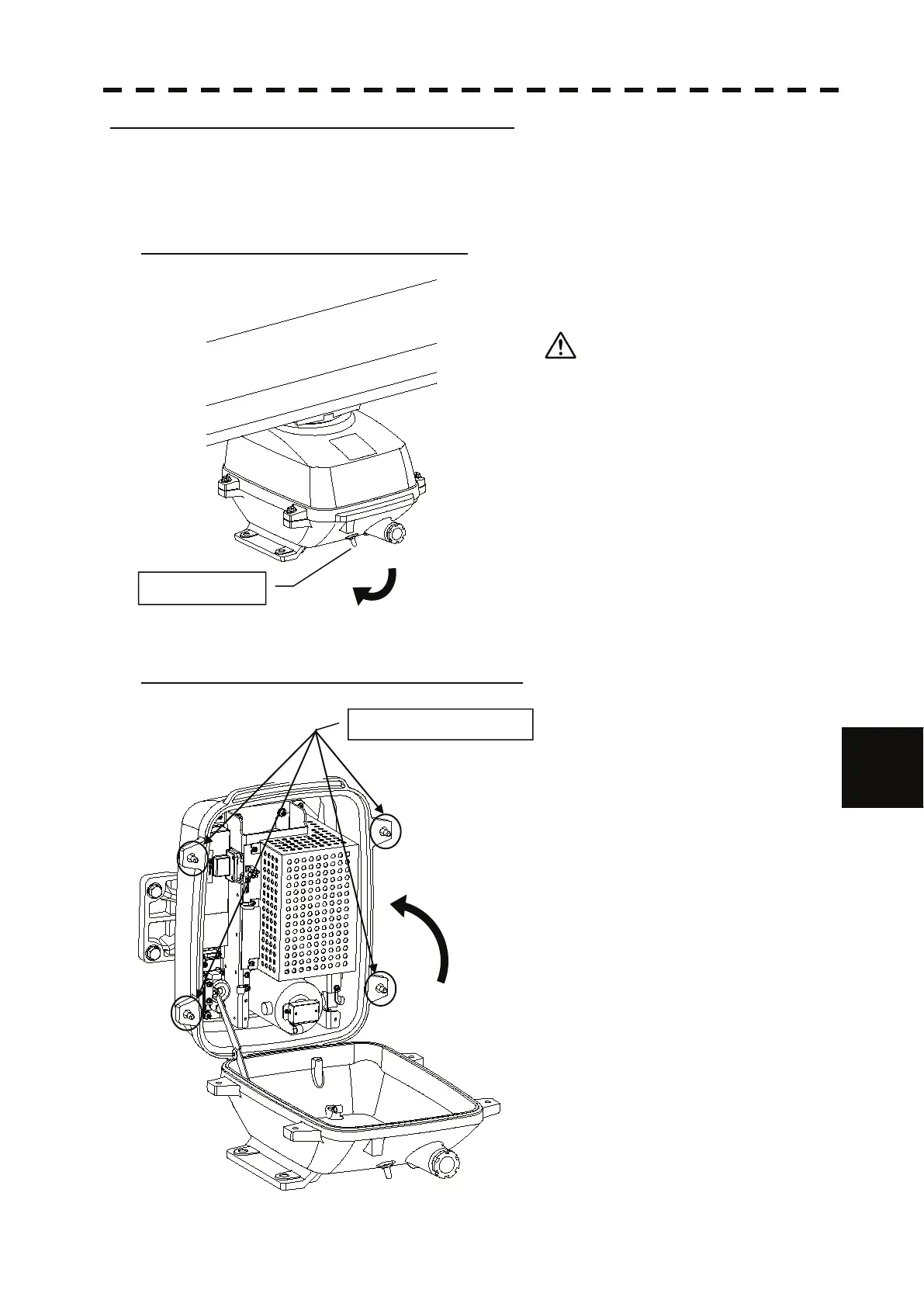

Step 1: Turn off the antenna safety switch.
When replacing a magnetron, make sure
to first turn off the antenna safety
switch.
The switch is at the rear bottom of the antenna.
Turn off the switch.
Step 2: Remove the bolts and open the top cover.
The top cover is fixed with 4 hexagon bolts
(M8 captive screw).
OFF
Safety switch
Hexagon bolts (4 places)
To Next Page
