4.2 Measurement of Range and Bearing
y
yyy
4.2.1 Measurement with Cursor Position (Cursor)

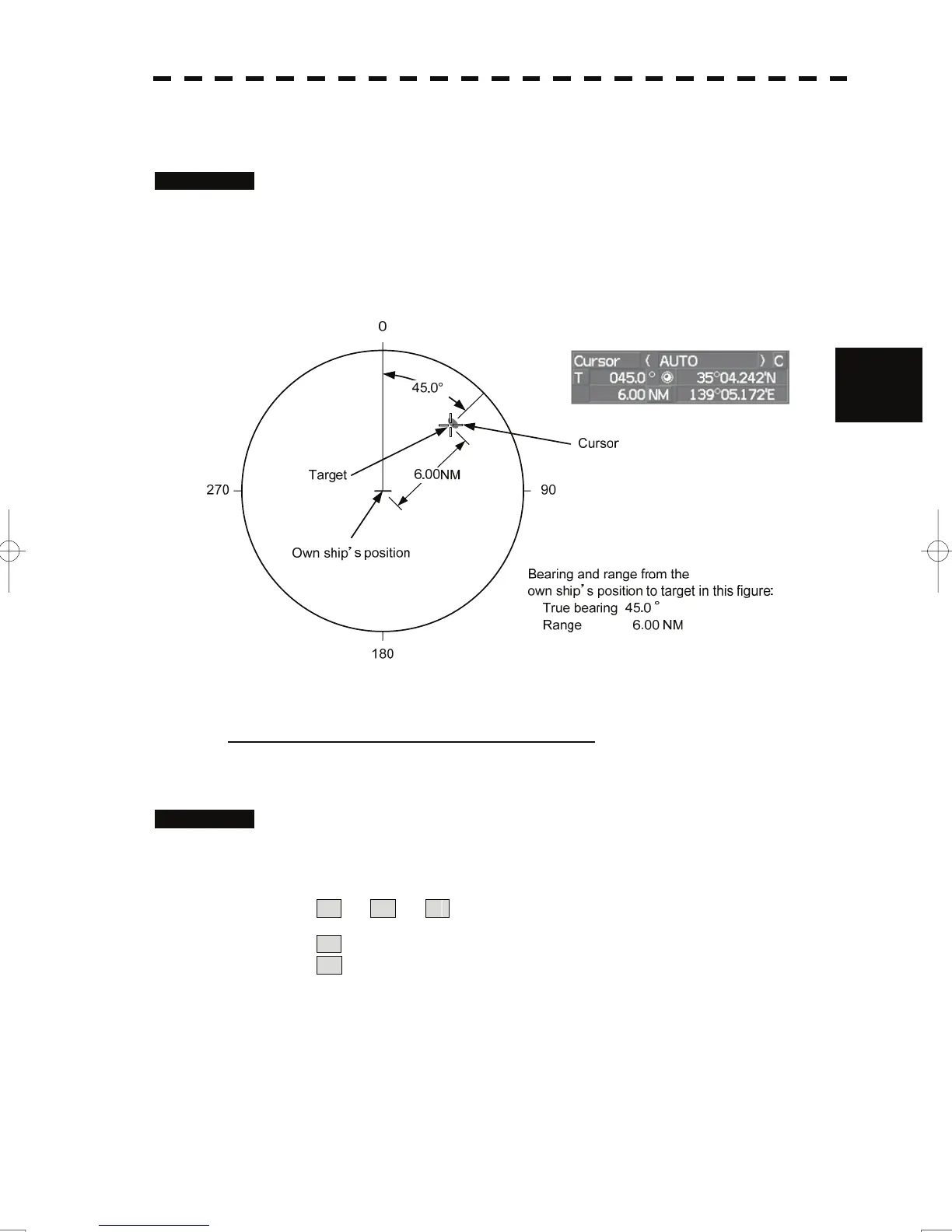

Procedures 1 Make sure of the target echoes on the radar display.
2 Move the cursor to the target.
The bearing and range of the target will be shown in the Cursor bearing / range (upper
right of the display on page 2-3). The range is a distance from the own ship's
position.
4
To set a cursor bearing numeric value mode
Determine whether to display a cursor bearing in true or relative bearing mode.
Procedures 1 Put the cursor on the Cursor bearing numeric value indication true /
relative switching (upper right of the display ④ on page 2-19), and
press the [ENT] key.
The selected mode is switched as shown below each time the [ENT] key is pressed.
T ⇒ R ⇒ T
T :Cursor bearing is displayed in true bearing mode.
R :Cursor bearing is displayed in relative bearing mode.
