5.2 Target Tracking Operation
yy
yyy
[IV] Gate Display
The gate displays an area monitoring a target using the Target Tracking function. This radar equipment
allows the gate size to change automatically according to target range and size. User can check the gate
size using the following function.
Procedures 1 Press the [TT MENU] key.
2 Open the TT Test Menu by performing the following menu operation.
9. TT Test Menu
3 Press the [4] key.
The gate display mode is switched.
On : Gate is displayed
Off : Gate is not displayed
5
4 Display the numeric value of a target according to Section 5.2.3.
The numeric value of the target will be displayed, and the tracked target symbol will
be enclosed in a green gate.
Note:
The Target Tracking can display the gate of two targets simultaneously.

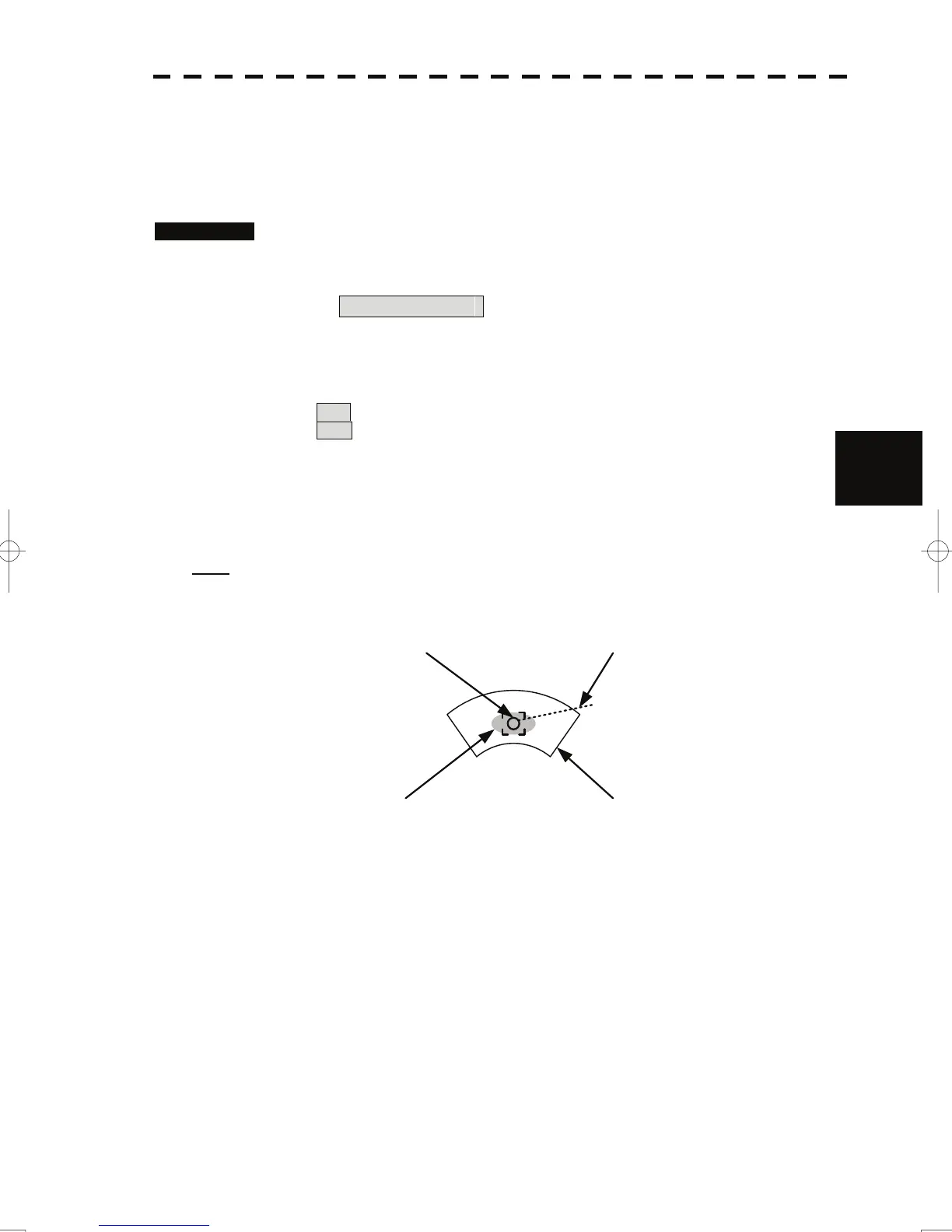

Tracked Target symbol
Echo Gate (displayed in green)
Vector
5-30
