CFQ-6912
MAX φ14.5 (JRC SUPPLY)
19 CORES COMPOSITE CABLE
NJU-85 PERFORMANCE MONITOR
NKE-2254-7/9/6HS SCANNER UNIT
NOTE: Eliminating the interference on frequencies used for marine communications and navigation due to
operation of the radar.
All cables of the radar are to be run away from the cables of radio equipment.
(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should not be run parallel
with the cables of radio equipment.
Performance monitor, ARPA/ATA Process Circuit, AIS Process Circuit and GYRO Interface Unit must be
fitted on ships compliant to IMO.
AC220-240V,50/60Hz,1φ
AC100V,50/60Hz,1φ,100W
NBL-175 STEPDOWN TRANSFORMER
CIRCUIT BREAKER (5A)
0.6/1kV-DPYC-1.5
0.6/1kV-DPYC-1.5
OPTION
SHIP'S MAIN
HEATER CONTROL PART
(SHIPYARD SUPPLY)
0.6/1kV-DPYCYS-1.5
(OPTION)
NCM-853-E CONTROL UNIT
NCE-5171 OPERATION UNIT
NCA-877WA/877A
(JRC SUPPLY) 5m
NWZ-173 LCD MONITOR
NDC-1417 RADAR PROCESS UNIT
NCD-4530 DISPLAY UNIT
(JRC SUPPLY) 5m
(JRC SUPPLY) 5m
0.6/1kV-DPYC-6
CFQ-5436-5
MAX φ10 (JRC SUPPLY) 5m
NBA-5111 POWER SUPPLY
GYRO
LOG(200P)
250V-TTYCS-4
250V-TTYCS-1
250V-MPYCYS-7
250V-DPYCYS-1.5
250V-TTYCS-1
GPS
SHIP'S MAIN
H-2695111153 MAX φ18
(JRC SUPPLY, OPTION)
INTERSWITCH
AIS
LOG(NMEA)
(JRC SUPPLY) 5m
ARPA/ATA PROCESS UNIT (OPTION)
(OPTION)
NCT-59A GYRO INTERFACE UNIT
NQA-2103 AIS PROCESS UNIT
NDB-34A PLOTTER CONTROL UNIT
(OPTION)
(OPTION)
DC24V
JRC LAN
LAN CABLE H-7ZCNA0483
(JRC SUPPLY, OPTION)
AC100-120/220-240V,50/60Hz,1φ

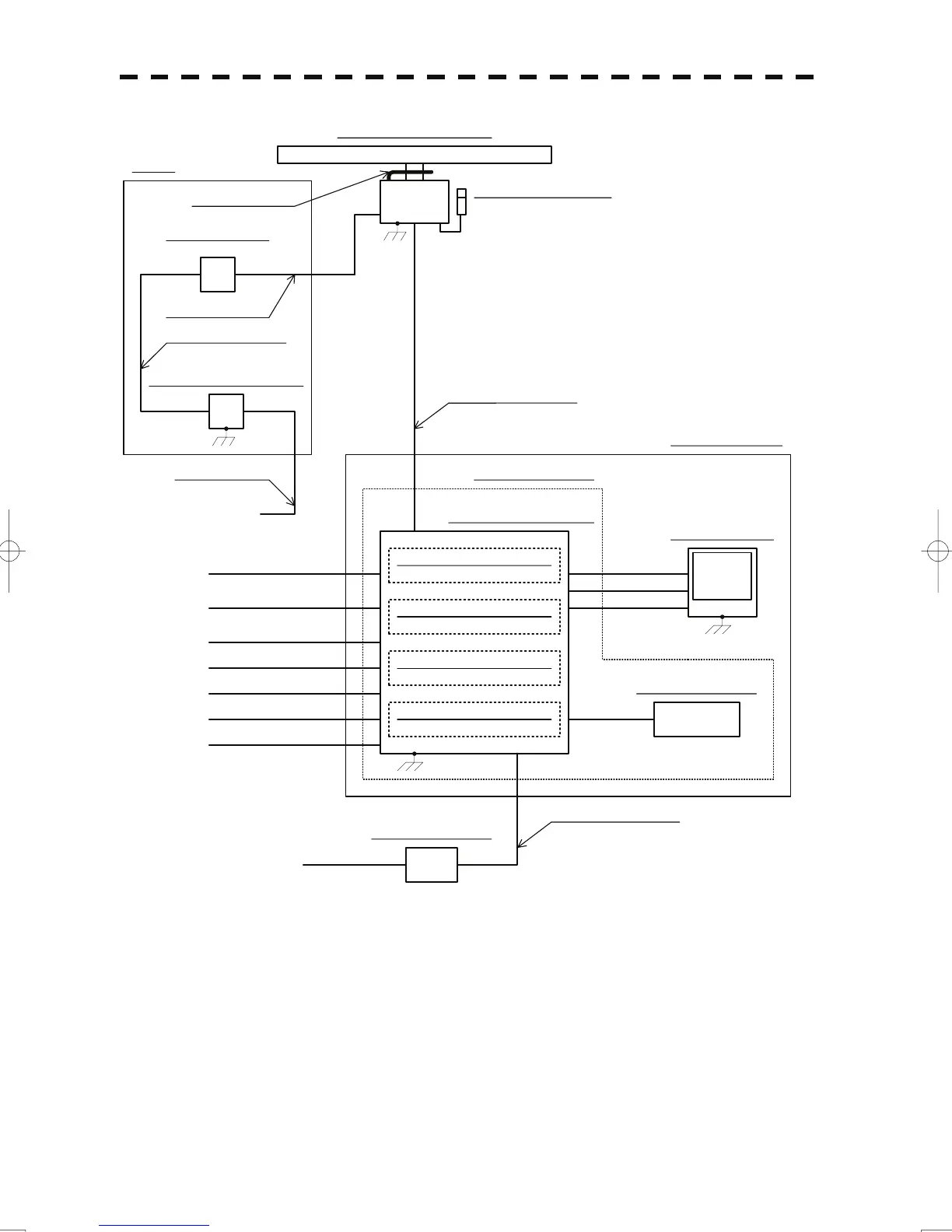

Fig. 1.16 General System Diagram of JMA-5322-7/9/6HS RADAR
