3.2 Mounting site, DIN-rail mounting
3.3 Close mounting
Warning
The device is not suitable for installation in potentially explosive areas.

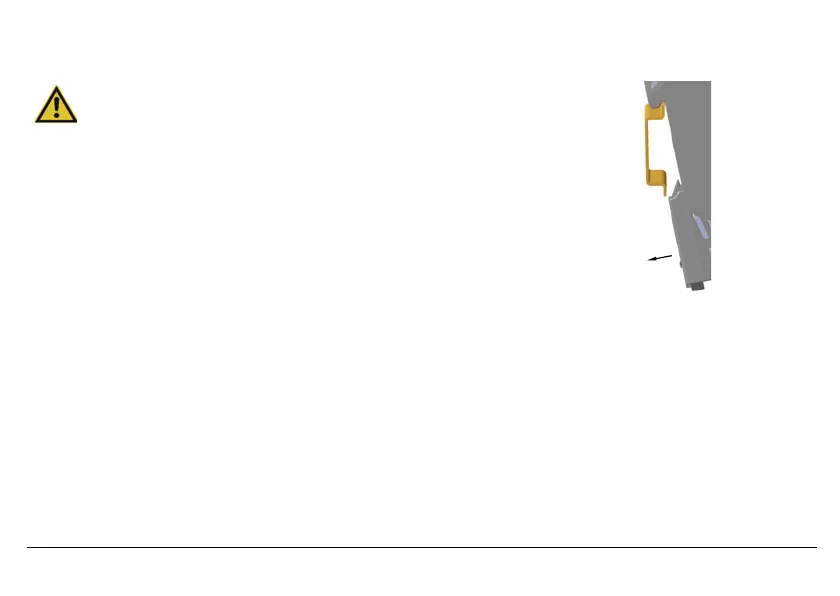

The device is clipped to a 35 mm DIN-rail (DIN EN 60715) from the front
and locked into place by pressing downwards.
-
The ambient conditions at the installation site must meet the requirements
specified in the technical data.
v Chapter 9 "Technical data"
-
Ensure vibration-free installation to prevent the screw connections from working loose!
-
The atmosphere must be free from aggressive media (e.g. acids and lyes), as well as free from dust, flour, or other
suspended solids to prevent blocking of the cooling slots!
-
Maintain the minimum distance of 20 mm to the top and the bottom.
1. So that the release slot can still be accessed with a screwdriver from the bottom.
2. So that when dismounting, the device can be swiveled upwards and removed from the DIN rail.
-
Several devices can be mounted right next to one another without a minimum distance.
