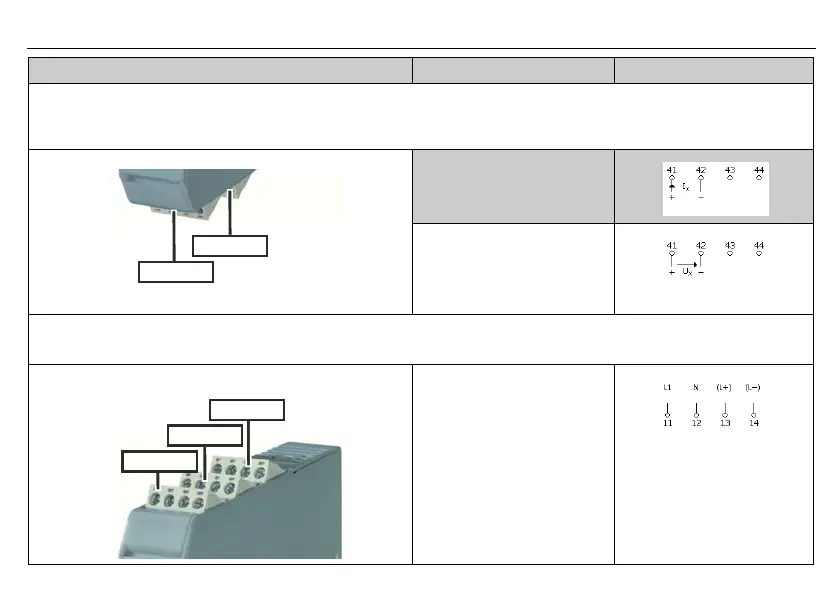

4.2.2 Analog output (part of the safety channel)
Note: If an open current output is detected, this leads to an error.
Remedy: Install a 470 Ω resistor until the output in the system is wired correctly.
0(4) to 20 mA
0(2) to 10 V
4.2.3 Voltage supply (on the nameplate)
v
Chapter 2 "Identifying the device version"
AC:
L1 line conductor
N Neutral conductor
DC:
(L+)
(L-)
Terminals Comment Screw terminals
51,52,53,54
41,42,43,44
21,22,23,24
31,32,33,34
11,12,13,14
