7 Configuration
67
7.4.8 Resistance Rx

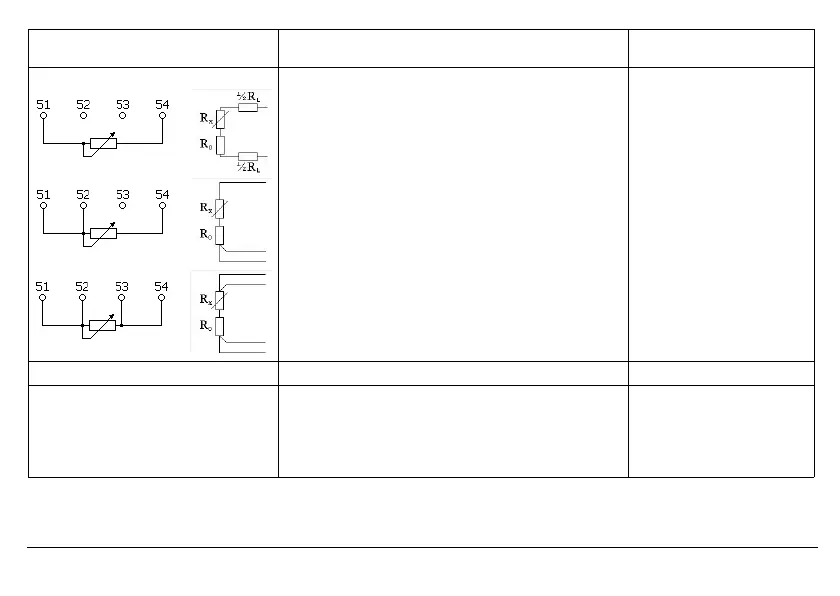

Parameter appears for setting "resistance/potentiome-
ter" with 2, 3 or 4-wire circuit
Here, the total ohmic resistance of the potentiometer
area covered must be entered.
0 to 100, 400, 4,000 or
10,000 Ω
7.4.9 Line resistance R
L
Here, the line resistance R
L
(2-wire circuit) is entered. 0 to Rx
7.4.10 Resistance R0
Parameter appears for setting "resistance/potentiome-
ter" with 2, 3 or 4-wire circuit.
It may be that the potentiometer cannot reach 0 Ω due
to mechanical reasons.
The starting resistance (e.g. left limit stop) of the poten-
tiometer area is also entered here.
0 to 400, 4,000 or 10,000 Ω
Parameter Comment
Value range
(default setting in bold)
