7 Configuration
68

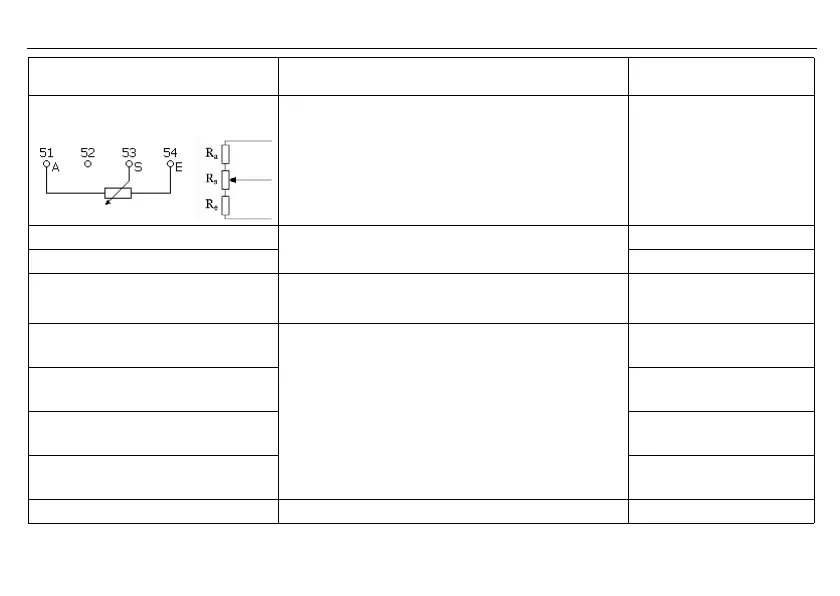

7.4.11 Resistance R
A
, R
S
and
R
E
Dependent on the setting "resistance measuring
range"
Here, the starting resistance of the potentiometer must
be entered. I.e. the resistance (between A and S) of the
sliding contact at this position (e.g. left limit stop) must
be entered.
0 to 400, 4,000 or 10,000 Ω
7.4.12 Scaling start
All sensor types can be scaled here if "linear" has been
entered for linearization.
-5,000 to 0 to 50,000
7.4.13 Scaling end
-5,000 to 100 to 50,000
7.4.14 Offset
With the offset, the linearized/scaled measured value
can be shifted evenly by the value entered over the
entire measuring range.
-5,000 to 0.0 to 50,000 °C/
°F/text
7.4.15 Fine calibration start ac-
tual
You can use the fine adjustment to correct the mea-
sured values of the analog input. This may become
necessary if the scaling and offset do not result in the
desired display.
v Figure in Chapter 5.4 "Signal flow"
-5,000 to 0.0 to 50,000
7.4.16 Fine calibration end ac-
tual
-5,000 to 0.0 to 50,000
7.4.17 Fine calibration start tar-
get
-5,000 to 0.0 to 50,000
7.4.18 Fine calibration end tar-
get
-5,000 to 0.0 to 50,000
7.4.19 Noise suppression
Equalizes the input signals using the digital input filter. Yes, No
Parameter Comment
Value range
(default setting in bold)
