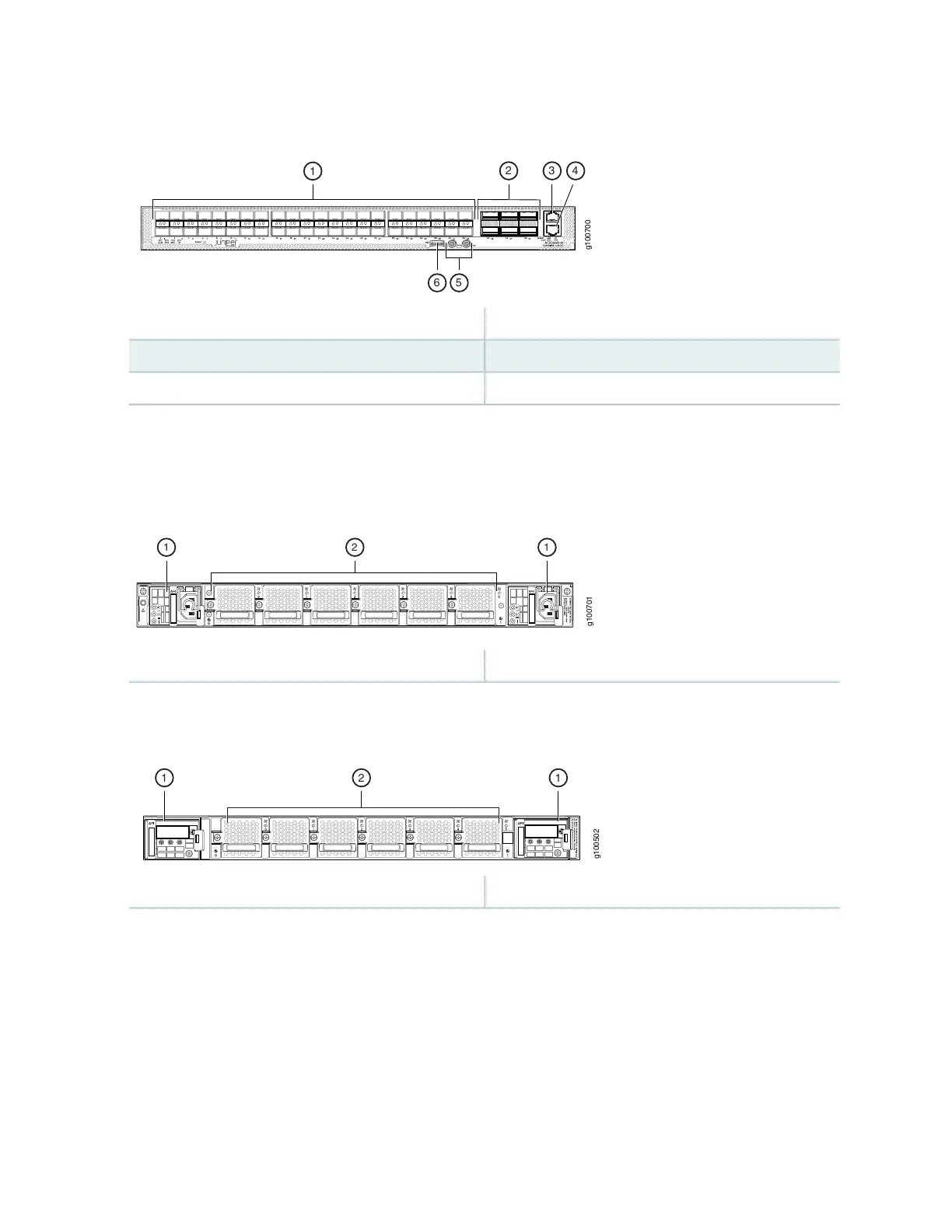

Figure 13: Front View of the ACX5448-M Router
g100700
2 3 4
1
56
4—1— Console (CON) portSFP+ ports
5—2— PPS and 10M GPS output portsQSFP28 ports
6—3— USB portManagement (MGMT) port
Figure 14 on page 24 and Figure 15 on page 24 show the important components on the rear of the
ACX5448-M routers.
Figure 14: Rear View of the AC-Powered ACX5448-M Router
g100701
21 1
2—1— Fan modulesPower supply modules (AC)
Figure 15: Rear View of the DC-Powered ACX5448-M Router
g100502
2 11
2—1— Fan modulesPower supply modules (DC)
The fan modules and PSMs on the ACX5448-M routers are installed in slots on the rear of the chassis.
The chassis has six slots for the fan modules and two slots for the PSMs.
The six fan modules are numbered 0 through 5 from left to right. Similarly, the two PSMs are numbered
0 and 1.
