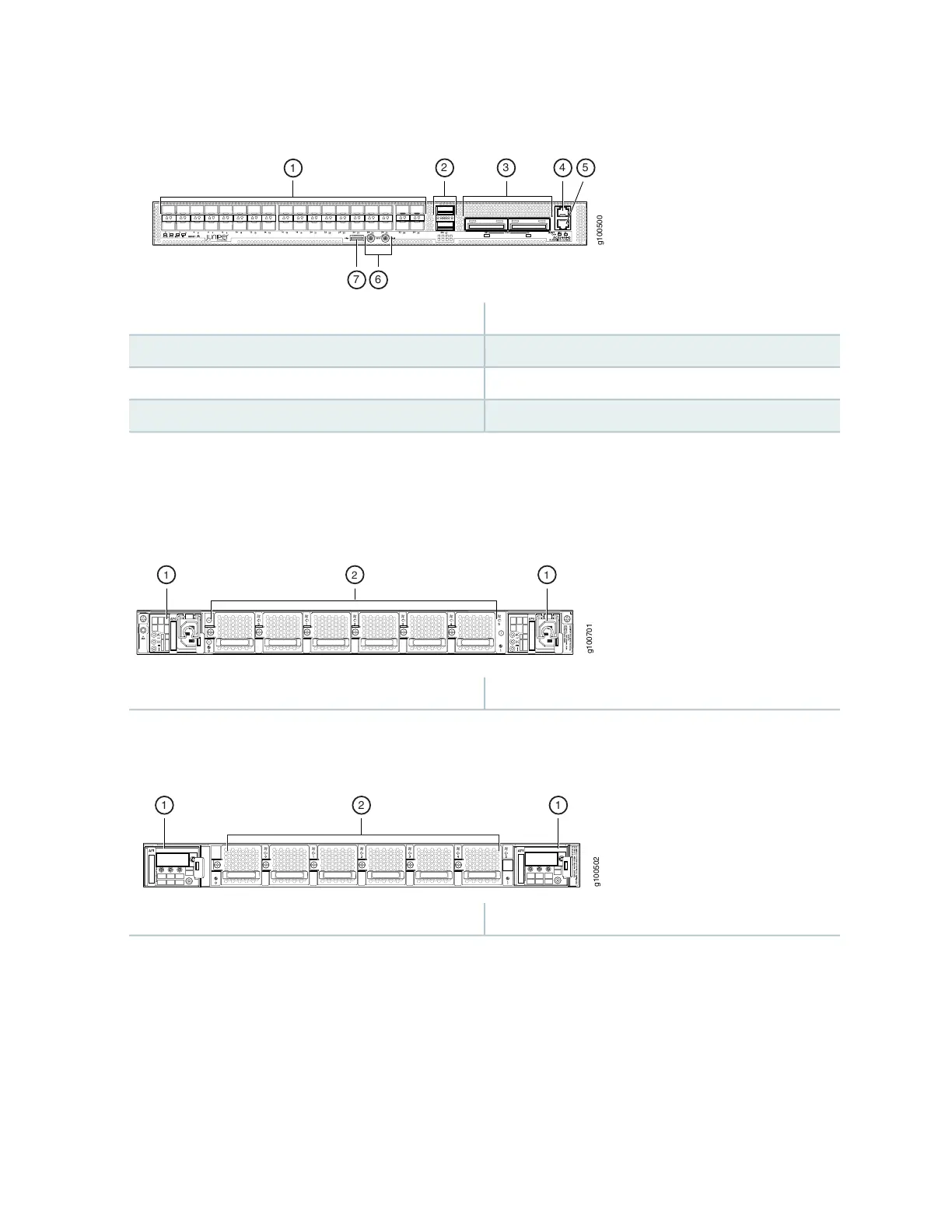

Figure 10: Front View of the ACX5448-D Router
g100500
32 4 5
1
67
5—1— Console (CON) portSFP+ ports
6—2— PPS and 10M GPS output portsQSFP28 ports
7—3— USB portCFP2 ports
4—Management (MGMT) port
Figure 11 on page 23 and Figure 12 on page 23 show the important components on the rear of the
ACX5448-D routers.
Figure 11: Rear View of the AC-Powered ACX5448-D Router
g100701
21 1
2—1— Fan modulesPower supply modules (AC)
Figure 12: Rear View of the DC-Powered ACX5448-D Router
g100502
2 11
2—1— Fan modulesPower supply modules (DC)
The fan modules and PSMs on the ACX5448-D routers are installed in slots on the rear of the chassis. The
chassis has six slots for the fan modules and two slots for the PSMs.
The six fan modules are numbered 0 through 5 from left to right. Similarly, the two PSMs are numbered
0 and 1.
Figure 13 on page 24 shows the important components on the front of the ACX5448-M router.
