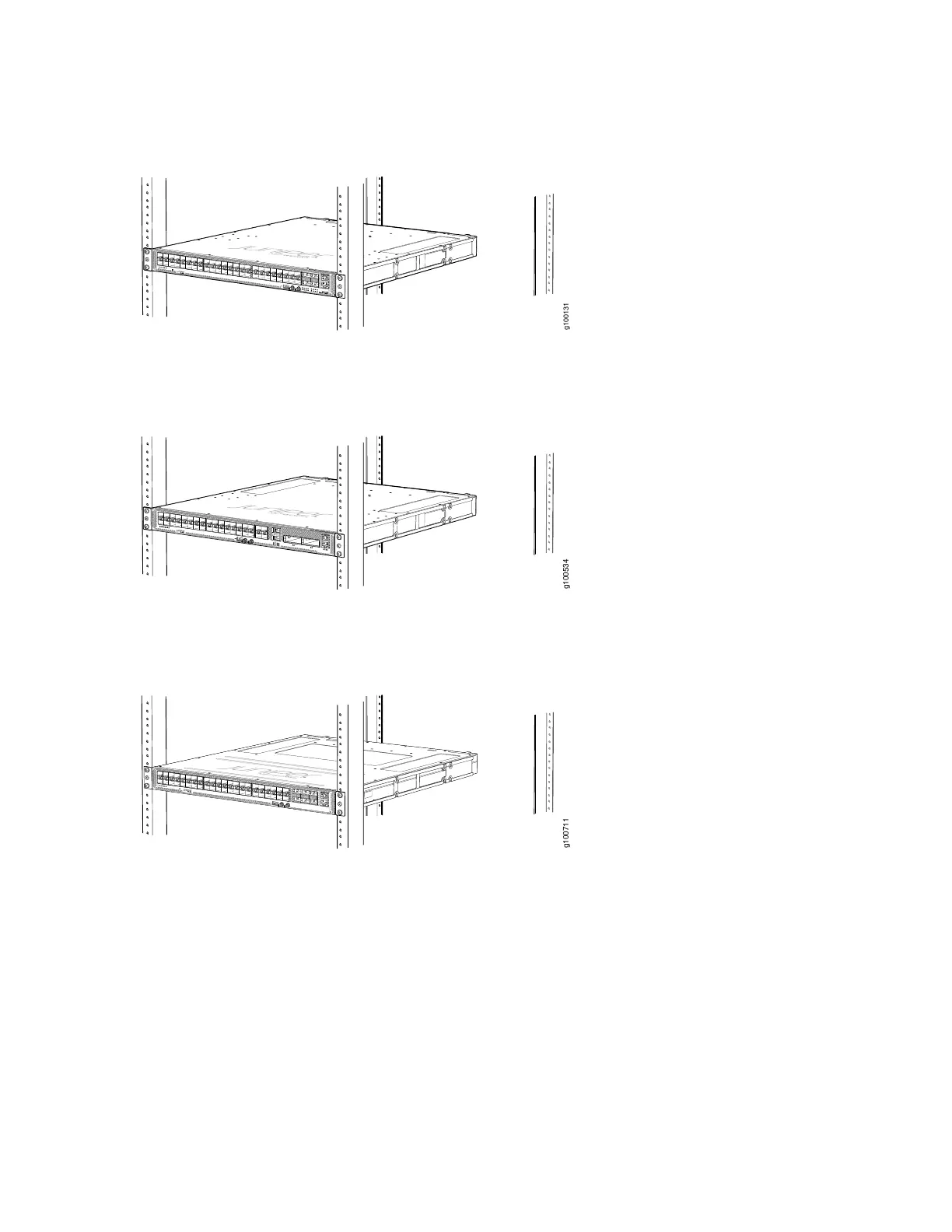

Figure 48: ACX5448 Router Secured by Front-Mounting Brackets
g100131
Figure 49: ACX5448-D Router Secured by Front-Mounting Brackets
g100534
Figure 50: ACX5448-M Router Secured by Front-Mounting Brackets
g100711
8. On the rear of the chassis, slide the rear-mounting blades on either side of the chassis until the
rear-mounting brackets at the end of the blades contact the rack rails (see Figure 51 on page 93 for
the ACX5448 router, Figure 52 on page 93 for the ACX5448-D router, and Figure 53 on page 93 for
the ACX5448-M router).
The rear-mounting blades on each side of the chassis are movable. You can adjust the length of the
blades according to the depth of the rack.
92
