5. Place the grounding cable lug over the grounding points on the side of the chassis (see
Figure 60 on page 97 for ACX5448 and ACX5448-D routers and Figure 61 on page 97 for the
ACX5448-M router).

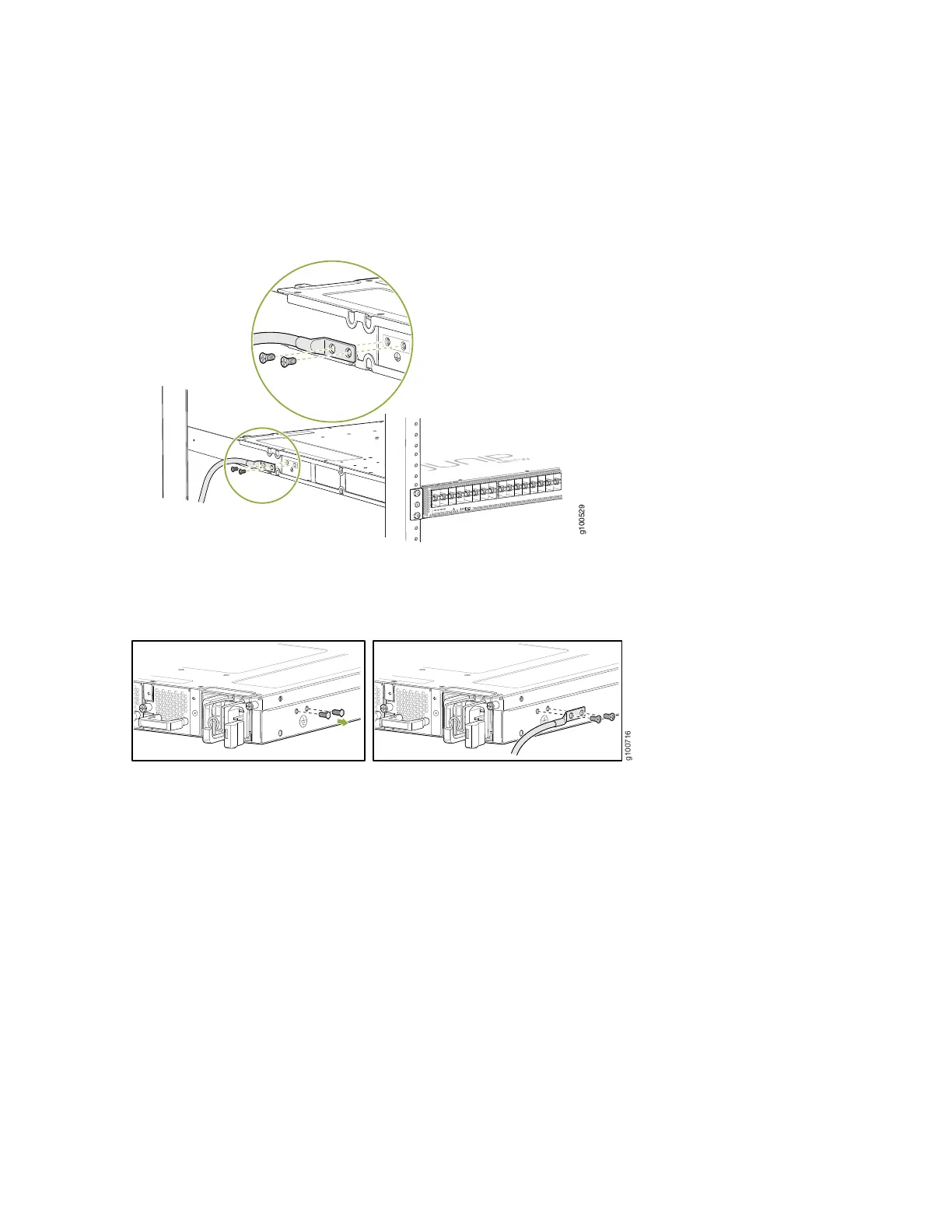

Figure 60: Connect the Grounding Cable to the ACX5448 or ACX5548-D Router
Figure 61: Connect the Grounding Cable to the ACX5448-M Router
6. Secure the grounding cable lug with the screws. The holes are sized to accommodate #10–32 pan head
screws.
7. Dress the grounding cable and verify that it does not touch or block access to router components, and
that it does not drape where people could trip over it.
97
